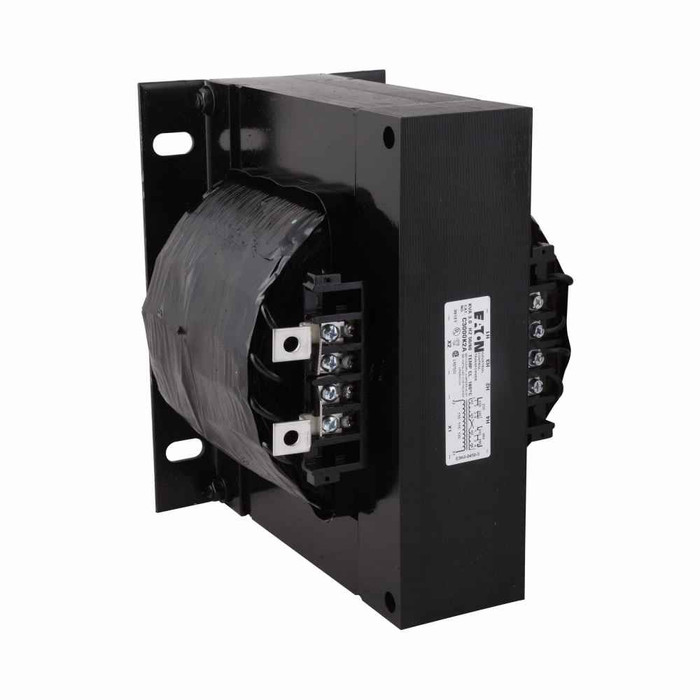

Industrial Control Transformer, MTK, PV: 240 X 480V, 230 X 460V, 220 X 440V, Taps: None, SV: 120/115/110V, 115°C, 4000 VA, Cu magnet wire
Manufacturer Resources
Product Specs
- Catalog Notes:
- Epoxy resin impregnated coil design, 50/60 Hz operation, 180°C insulation system
- Certifications:
- cUL Certified
- Coil Material:
- Copper windings
- Compliances:
- RoHS Compliant
- Design:
- MTK
- Primary Voltage:
- 240 X 480V, 230 X 460V, 220 X 440V
- Product Height:
- 10.5 in
- Product Length Depth:
- 10 in
- Product Weight:
- 40 lb
- Product Width:
- 10.5 in
- Secondary Voltage:
- 120/115/110V
- Tap Size:
- None
- Temperature Rating:
- 115°C
- Type:
- Industrial Control Transformer
- Volt Ampere Rating:
- 4000 VA
- Product Group:
- Electrical
