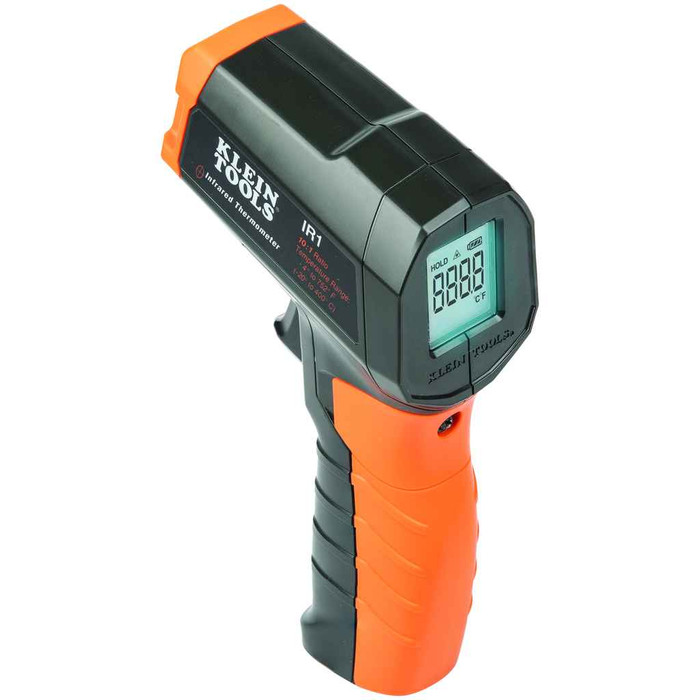

Infrared Digital Thermometer with Targeting Laser, 10:1
IR1 - spec sheet
Warnings
- NEVER look directly into the laser beam emitted by this instrument.
- Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
- LASER RADIATION, Class II laser. Do NOT stare into beam. Exposing eyes to laser radiation can result in severe and permanent eye injuries.
- Thermometer is NOT intended for use on people or animals.
- Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
Features
- Includes custom pouch and a 9V battery
- Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002
- Target Laser
- Features include targeting laser; automatic hold; backlit display; low battery, auto power-off
- Not a medical device; thermometer is NOT intended for use on people or animals
- Fixed emissivity at 0.95
- Auto Power-Off conserves and extends battery life
- Drop protection to 6.6-Foot (2 m)
- Measurement range is -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
- Infrared Thermometer has an optical resolution (distance-to-spot) of 10 -1
IR1 - spec sheet
Manufacturer Resources
Product Specs
- Accuracy:
- Above freezing - ±4° F or ±2%; Accuracy Below Freezing - ±4° F Plus 0.2 Degrees Per Degree Below 32° F
- Batteries:
- 1 x 9V
- Degree Format:
- F or C
- Depth:
- 6.0100 in
- Display:
- Digital Backlit
- Display Resolution:
- 0.1F (0.1 C)
- Distance To Spot:
- 1-Oct
- Drop Protection:
- 6.6 ft (2 m)
- Height:
- 1.7260 in
- Material:
- Plastic Housing, Electronic Components
- Overall Height:
- 4.14" (10.5 cm)
- Overall Length:
- 6.01" (15.3 cm)
- Overall Width:
- 1.24" (3.1 cm)
- Range:
- -4° to 752° F (-20° to 400° C)
- Response Time:
- < 0.25s
- Standard:
- EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
- Weight:
- 0.3460 lbs
- Width:
- 4.1430 in
- Department:
- Electrical
- Product Group:
- Test & Measurement
- Product Subgroup:
- Environmental Meters
- Product Type:
- Infrared Thermometer with Targeting Laser
- Product Details:
- Infrared Thermometer with Targeting Laser
