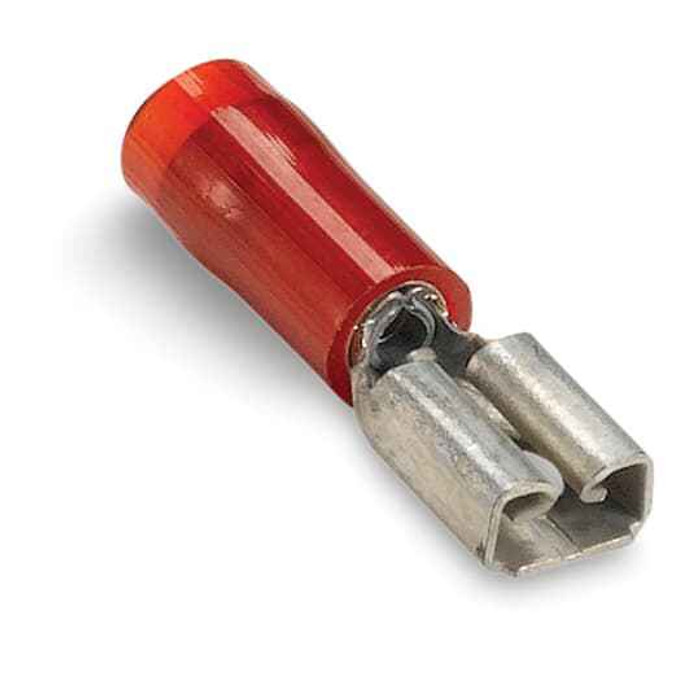

INS NY FEM 187 DISC 22-18 LEN .83
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Nylon/Polyamide
- Product Subgroup:
- Disconnects
- Product Type:
- Nylon Insulated Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Brass
Sta-Kon RAD18-183 – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RAD18-183 female disconnect crimp onto?
The RAD18-183 is sized for 22 to 18 AWG stranded wire, which is what the red insulation color signals on crimp terminals. If your conductor is 16 AWG or larger, this barrel will not accept it and you need the blue (16-14 AWG) range instead.
2) What is the insulation on this red female disconnect made of, and does it hold up to heat?
The sleeve is nylon (polyamide) rather than vinyl. Nylon insulation takes a higher temperature and resists abrasion and crushing better than PVC, which is why it gets specified for appliance, HVAC and control panel wiring where terminals sit in warm enclosures.
3) Is the barrel on the RAD18-183 brass or steel?
Brass. The crimp barrel and receptacle contact are brass, so the connection stays conductive and springy on the tab. The part is made in the United States.
4) Do I need a special crimper for Sta-Kon nylon insulated disconnects?
Use an insulated-terminal crimp tool matched to the red 22-18 AWG color code. Nylon insulated barrels crimp with the insulated-grip nest, not the open-barrel dies used for non-insulated terminals, and pliers will not give you a pull-tested connection.
5) Is this a ring terminal or a push-on connector?
It is a push-on female disconnect, also called a quick disconnect or receptacle. It slides onto a flat male tab so the connection can be pulled apart for service without unscrewing anything. If you need a connection that bolts under a screw or stud, you want a ring or fork terminal instead.
