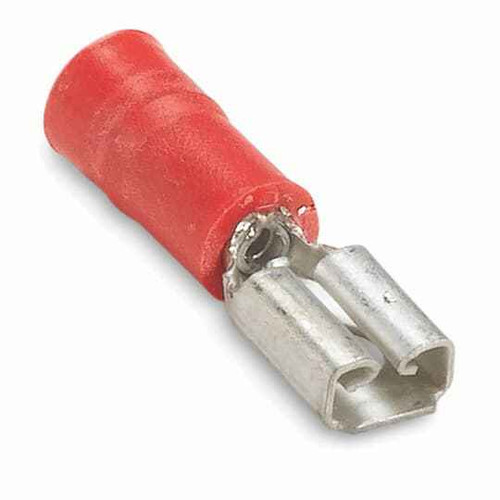

INS NY FEM 187 DISCON 22-18 LEN .83
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Nylon/Polyamide
- Product Subgroup:
- Disconnects
- Product Type:
- Nylon Insulated Female Disconnect
- Standards:
- UL E66716
- Voltage Rating:
- 600 V
- Wire Size:
- 22-18 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Brass
Sta-Kon RAD1833 – Frequently Asked Questions
1) What wire size does the Sta-Kon RAD1833 female disconnect crimp onto?
The RAD1833 is sized for 22-18 AWG conductors. That is the red color code on insulated terminals, and the barrel is color keyed red to match, so you crimp it with the red nest or the 22-18 position on your insulated-terminal tool. Stranded 20 and 18 AWG control and appliance wire are the typical uses. Anything 16 AWG or larger needs a different terminal.
2) What is the voltage rating on the Sta-Kon RAD1833 nylon disconnect?
Rated 600 V, which covers standard 120/208/240/277/480 V control and power circuits. The insulation is nylon/polyamide rather than vinyl, so it holds up better to heat and to abrasion in a tightly packed panel.
3) Is the Sta-Kon RAD1833 disconnect UL listed for an inspected panel job?
It carries UL file E66716. For MRO and institutional work where terminations have to be a recognized component, that file number is what you cite on the submittal. The terminal itself is brass with nylon insulation.
4) Should I use a nylon insulated disconnect or a vinyl one for HVAC control wiring?
Nylon, in most equipment work. Nylon/polyamide insulation like the RAD1833 uses tolerates higher temperatures and resists scuffing when wires are pulled through a crowded control compartment, where vinyl sleeves tend to split or deform. Vinyl is the cheaper choice for low-heat, low-abrasion jobs. Either way the body is brass and the crimp technique is the same.
5) Is the Sta-Kon RAD1833 made in the USA for Buy American procurement?
Country of origin on the RAD1833 is the United States, which is what government, healthcare and education buyers working to domestic-sourcing requirements need on record. The exact manufacturer part number to put on the purchase order is RAD1833.
6) Is the Sta-Kon RAD1833 fully insulated, or do I need to add heat shrink over it?
The RAD1833 is a fully insulated female disconnect, with the nylon sleeve covering the barrel and the receptacle body, so no additional sleeving is required on a 600 V circuit. Fully insulated female disconnects are the usual pick where a tab could be touched after the connector is pulled off.
