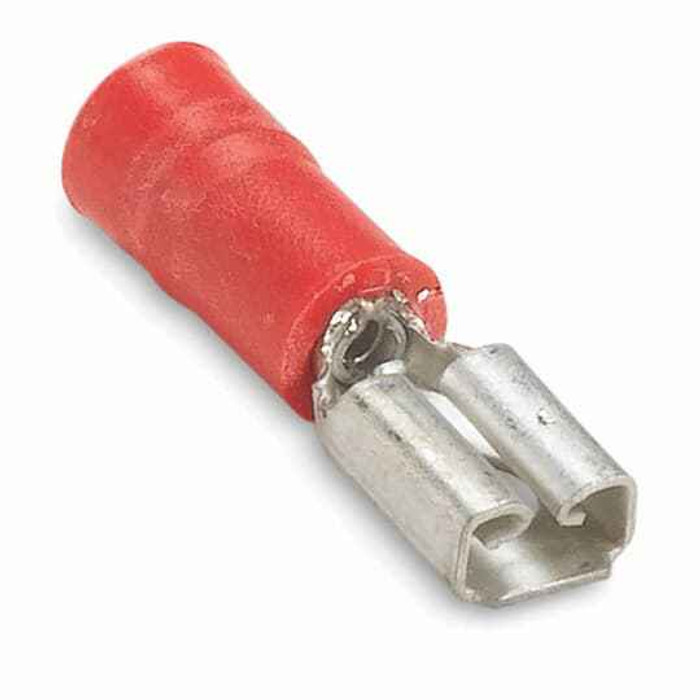

INS VIN FEM 187 DISCON No22-18 RED
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Vinyl
- Product Subgroup:
- Disconnects
- Product Type:
- Vinyl Insulated Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Brass
Sta-Kon RAD1827 – Frequently Asked Questions
1) Is the Sta-Kon RAD1827 disconnect UL listed?
Yes, it carries UL file E66716. That matters for inspected work in commercial and institutional panels where terminations have to be a listed component.
2) Can I use a vinyl insulated disconnect like the RAD1827 near a heat source?
The insulation is vinyl, which is fine for general control and appliance wiring at normal ambient temperatures but is the lower-temperature option. For terminations inside a furnace cabinet, near a heating element, or anywhere the wire itself is high-temp rated, specify a nylon-insulated or non-insulated terminal with high-temp sleeving instead.
3) Do I need a special crimp tool for Sta-Kon insulated terminals?
Use an insulated-terminal crimper with color-coded nests and set it on the red die for this one. Pliers or a bare-terminal tool will crush the vinyl sleeve and leave a joint that pulls off the wire. The terminal is a crimp-only connection, no solder.
4) Is the RAD1827 terminal barrel brass or steel, and does that affect conductivity?
The crimp barrel is brass, so it carries current directly without relying on a plated steel sleeve. Brass barrels are the norm on quick-disconnects used for low-voltage control and appliance wiring.
5) What is the exact part number and where is it made?
Order it as Sta-Kon RAD1827. It is manufactured in the United States.
6) Is the RAD1827 fully insulated, and will it shroud the male tab?
It is a vinyl insulated female disconnect, so the sleeve covers the crimp barrel and the receptacle body. If you need the mating tab shrouded as well for a tight terminal block or a bundle of adjacent connections, use a fully insulated (fully shrouded) disconnect rather than this standard insulated style.
