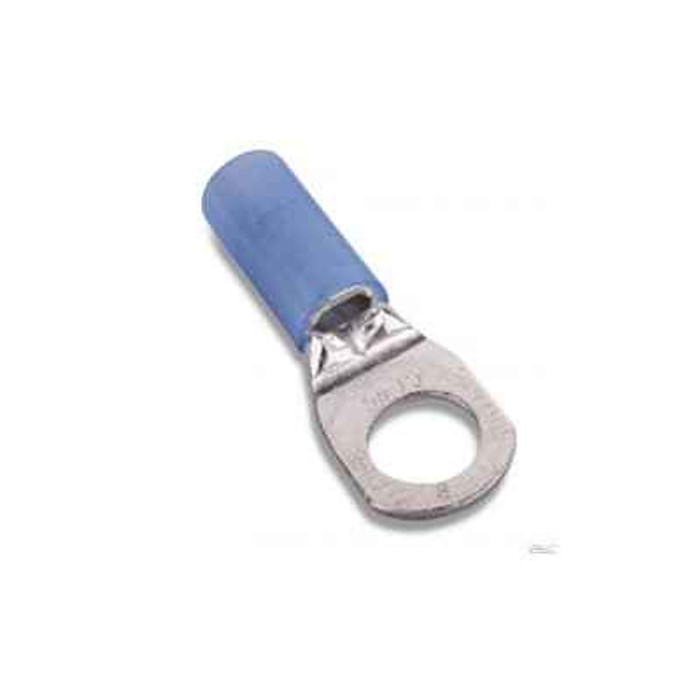

INS NYL RING TERM, 6AN, 3/8, BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 6AN
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon RE10731 – Frequently Asked Questions
1) What wire size does the Sta-Kon RE10731 ring terminal take?
The RE10731 is sized for 6 AWG wire, and the blue nylon insulation is the color code Sta-Kon uses for that size. Stranded copper conductor in that gauge is what it is meant to crimp onto, so don't try to force a 4 AWG or terminate an 8 AWG in it and expect a solid crimp.
2) What voltage can a Sta-Kon insulated ring terminal be used at?
Rated 600 V, which covers normal commercial and industrial branch circuit, panel, and control wiring. It carries UL file E9809.
3) Is the RE10731 terminal copper or aluminum, and can I use it on aluminum conductors?
The barrel is copper, so it is for copper conductors. Aluminum wire needs a terminal specifically listed AL/CU; putting a copper-only barrel on aluminum invites galvanic corrosion and a hot joint.
4) Is this a ring terminal or a fork terminal, and which should I use on a panel stud?
The RE10731 is a closed ring (ring tongue) terminal. The ring has to be slipped over the stud with the nut fully removed, but once it is torqued down it cannot vibrate off. A fork or spade terminal slides in under a loosened screw and is faster for service work, but it can back out. For a motor connection, battery stud, bus bar, or anything that sees vibration, the ring is the right choice.
5) Does the nylon insulation on this Sta-Kon terminal need a separate crimp tool?
Insulated terminals like the RE10731 crimp with an insulated-barrel crimp die matched to 6 AWG, not a bare-lug or hex die for non-insulated lugs. The nylon sleeve is part of the crimp, and the wrong die will split it. No heat shrink or extra sleeve is included or needed, the nylon body is the insulation.
6) What is the exact part number and country of origin for this blue 6 AWG ring terminal?
Order it as Sta-Kon RE10731. It is manufactured in Mexico.
