Sta-Kon F2041 INS PP FERRULE 10, 6 MM2, LG .787

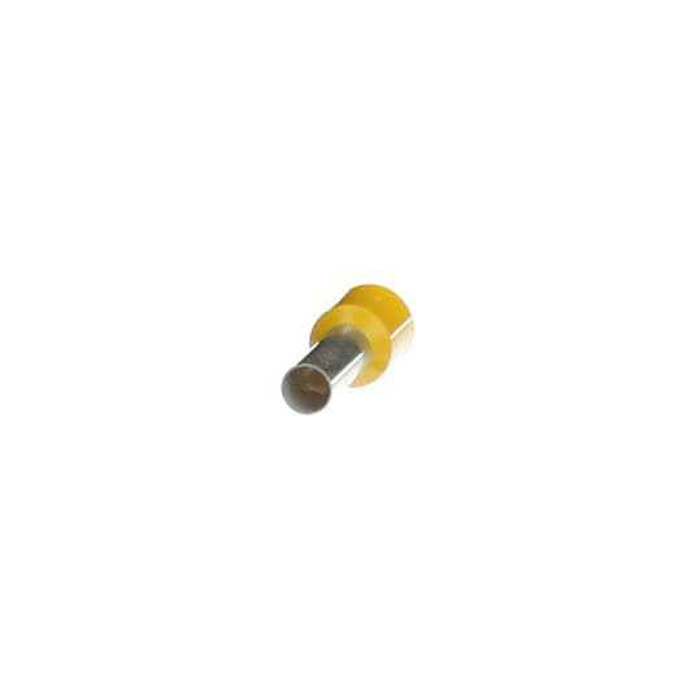

Sta-Kon Polypropylene Insulated Wire Ferrule 10 AWG 6 mm_ Yellow Copper Terminal

(No reviews yet) Write a Review

Model: F2041
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.45
$1.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sta-Kon Polypropylene Insulated Wire Ferrule 10 AWG 6 mm_ Yellow Copper Terminal

Professional Wire Termination Solution for Secure Electrical Connections

The Sta-Kon polypropylene insulated wire ferrule delivers reliable wire termination for 10 AWG conductors with 6 mm_ cross-sectional area. Featuring yellow polypropylene insulation over copper construction, this professional-grade ferrule ensures secure connections in electrical applications requiring dependable wire termination performance.

Professional Features & Benefits

  • 10 AWG Wire Compatibility: Precisely sized for 10 AWG conductors ensuring proper fit and secure termination without wire damage or connection failure.
  • Copper Construction: High-conductivity copper material provides excellent electrical performance and corrosion resistance for long-term reliability.
  • Polypropylene Insulation: Durable yellow polypropylene sleeve offers electrical insulation and color coding for easy identification during installation and maintenance.
  • 6 mm_ Cross-Section: Engineered dimensions accommodate 6 mm_ wire cross-sectional area for precise conductor termination in metric applications.
  • UL Listed: UL E489056 listing ensures compliance with safety standards for professional electrical installations.
  • German Engineering: Manufactured in Germany to exacting quality standards for consistent performance and reliability.

Technical Specifications

  • Color: Yellow
  • Country Of Origin: Germany (DE)
  • Department: Electrical
  • Material: Copper
  • Product Group: Wire Termination
  • Product Subgroup: Ferrules
  • Product Type: Polypropylene Insulated Ferrule
  • Standards: UL E489056
  • Wire Size: 10 AWG

Installation & Operation

  1. Strip wire insulation to appropriate length ensuring clean, straight cut without nicking conductor strands.
  2. Insert stripped conductor fully into ferrule ensuring all wire strands are contained within the copper sleeve.
  3. Crimp ferrule using appropriate crimping tool designed for insulated ferrules to achieve proper compression.
  4. Verify secure connection by gently tugging on wire to ensure ferrule is properly attached.
  5. Insert terminated wire into terminal block, connector, or device ensuring proper seating and connection.
  6. Complete installation following applicable electrical codes and manufacturer specifications for the connected equipment.

Professional Applications

  • Control Panel Wiring
  • Terminal Block Connections
  • Industrial Equipment Terminations
  • Electrical Enclosure Wiring
  • Automation System Connections
  • Commercial Building Electrical
  • Manufacturing Equipment Wiring

Why Choose Sta-Kon Quality?

Sta-Kon wire ferrules combine German engineering precision with UL listed safety compliance, delivering consistent termination performance for professional electrical applications. The copper construction and polypropylene insulation provide long-term reliability and easy identification in demanding electrical environments.

Manufacturer Resources

Product Specs

Country Of Origin:
Germany (DE)
Product Subgroup:
Ferrules
Product Type:
Polypropylene Insulated Ferrule
Standards:
UL E489056
Wire Size:
10 AWG
Department:
Electrical
Product Group:
Wire Termination
Product Color:
Yellow
Product Material:
Copper

Sta-Kon F2041 – Frequently Asked Questions

1) Will the Sta-Kon F2041 ferrule accept 10 AWG stranded wire?
Yes. The Sta-Kon F2041 is sized for 10 AWG conductors, which corresponds to the 6 mm2 metric cross-section. Strip the conductor clean, insert it so every strand sits inside the copper barrel, then crimp. If strands are left outside the barrel the connection will be undersized, so the full-insertion check matters more than crimp pressure.
2) Can I use this ferrule on a 12 AWG or 8 AWG conductor instead?
No. The F2041 barrel is made for 10 AWG / 6 mm2 only. A 12 AWG conductor leaves the barrel under-filled and the crimp will not hold, and 8 AWG will not enter the barrel at all. Order the ferrule matched to the conductor size you are terminating.
3) What does the yellow color on a 10 AWG wire ferrule mean?
Yellow is the color code on the polypropylene insulating sleeve of the F2041, and it identifies the 6 mm2 / 10 AWG size. On a control panel where several ferrule sizes are in use, the sleeve color is how an electrician tells a 10 AWG termination apart at a glance during troubleshooting rather than pulling it out of the terminal block.
4) Do I need a special crimper for insulated polypropylene ferrules?
Use a crimping tool made for insulated ferrules. The F2041 has a copper barrel inside a polypropylene sleeve, and a tool intended for bare lugs or non-insulated terminals will deform or split the sleeve instead of compressing the barrel evenly. After crimping, tug-test the wire before seating it in the terminal block.
5) Why use a ferrule instead of putting bare stranded wire straight into a terminal block?
A ferrule gathers the strands into a solid copper pin so the terminal screw clamps one body instead of loose wire. That prevents stray strands shorting to the neighboring terminal and stops the strand bundle from spreading and loosening under vibration. On 10 AWG control and equipment wiring, the F2041 is the 6 mm2 version of that termination.
6) What is the Sta-Kon part number for a 10 AWG insulated ferrule?
F2041 is the Sta-Kon manufacturer part number for the 10 AWG (6 mm2) yellow polypropylene insulated copper ferrule. Distributors ordering against a metric spec will see it called out as the 6 mm2 size.
