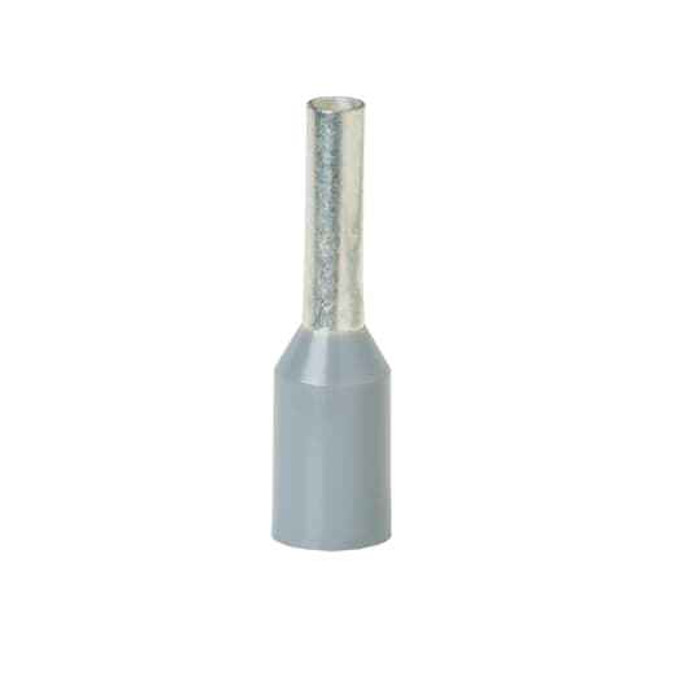

INS PP FERRULE 18, .75 MM2, LG .70
Manufacturer Resources
Product Specs
- Country Of Origin:
- Germany (DE)
- Product Subgroup:
- Ferrules
- Product Type:
- Polypropylene Insulated Ferrule
- Standards:
- UL E489056
- Wire Size:
- 18 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Grey
- Product Material:
- Copper
Sta-Kon F2026 – Frequently Asked Questions
1) What wire size does the Sta-Kon F2026 ferrule take?
The F2026 is sized for 18 AWG conductor, which is the 0.75 mm2 metric equivalent called out in the part description. Crimp it onto stranded 18 AWG before landing the conductor in a terminal block or breaker clamp.
2) Is the Sta-Kon F2026 ferrule UL recognized?
It carries UL file E489056. For a panel shop or institutional spec that requires a UL file reference on terminations, that is the number to cite on the submittal.
3) How long is the barrel on the Sta-Kon F2026 ferrule?
Contact barrel length is .70, per the part designation (LG .70). That is the conductor length to strip for a full insertion, with the insulated collar sitting back over the wire jacket.
4) Is the grey color on this Sta-Kon ferrule a size code?
Grey is the insulation color on the F2026, and on DIN-style ferrules the collar color tracks the conductor size, so grey here goes with the 0.75 mm2 / 18 AWG rating. Handy on a panel build when you are sorting a tray of mixed ferrules by sight.
5) What is the barrel made of, and will it work in an aluminum-rated terminal?
The barrel is copper, so use it on copper conductors landing in terminals rated for copper. The insulated sleeve is polypropylene.
6) Why use a ferrule like the F2026 instead of landing bare stranded wire in a terminal block?
A crimped ferrule gathers the strands into a solid pin so nothing frays or backs out under the clamp screw, and it keeps strands from splaying when the screw is torqued. On control panels and DIN rail terminal blocks with 18 AWG control wiring, that is the difference between a termination that holds torque and one that loosens. The F2026 adds a polypropylene collar that insulates right up to the terminal throat.
7) What manufacturer part number do I order for this grey 18 AWG insulated ferrule?
Order Sta-Kon F2026. Single catalog number covering the 18 AWG / 0.75 mm2 grey insulated ferrule with the .70 barrel.
8) Where is the Sta-Kon F2026 ferrule made?
Germany. Country of origin matters on government and institutional procurement where origin has to be declared on the submittal, so it is worth capturing on the PO.
