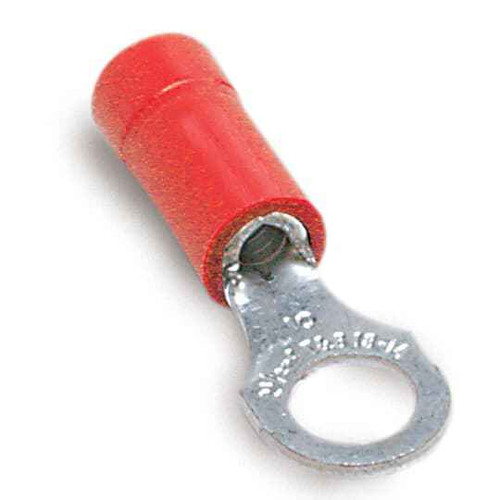

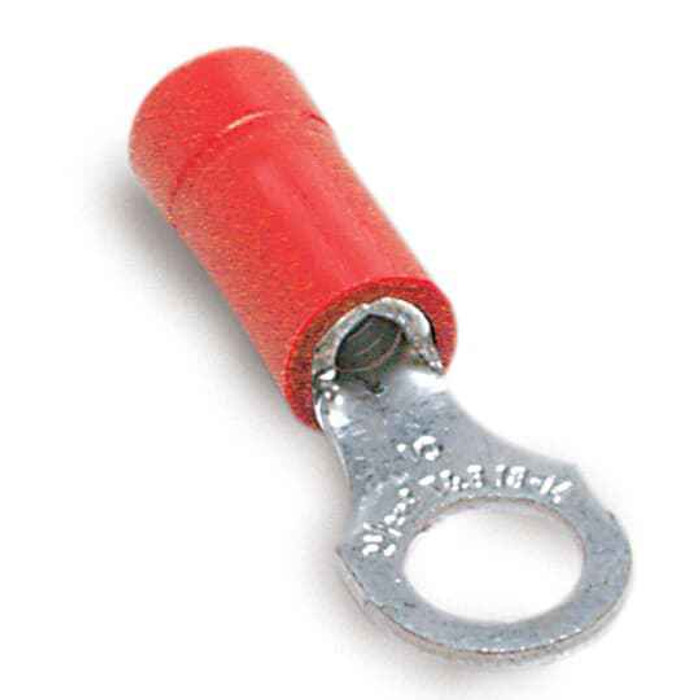

INS VIN RNG TRM 22-16 3/8 RED MYLAR
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Ring Terminal
- Standards:
- UL E9809
- Wire Size:
- 22-18 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RA737M – Frequently Asked Questions
1) What gauge wire does the Sta-Kon RA737M crimp onto?
It's sized for 22-18 AWG stranded copper conductors, which is the red insulation color code on Sta-Kon terminals. Anything heavier than 18 AWG will not seat in the barrel, and the red barrel is the quickest way to spot it in a bin of mixed terminals.
2) Is the Sta-Kon RA737M terminal UL recognized?
Yes. The RA737M carries UL file E9809. That's the reference an inspector or submittal reviewer will ask for on control panel and low voltage terminations.
3) Is the Sta-Kon RA737M ring terminal copper or aluminum?
Copper, with vinyl insulation over the barrel. Use it on copper conductors only; aluminum building wire needs a terminal rated AL or AL/CU, and this one isn't marked for that.
4) Do I need a special crimper for the Sta-Kon RA737M, and is one included?
The terminal ships as the terminal only, no tool. Sta-Kon insulated terminals are crimped with a Sta-Kon style ratcheting or plier crimper using the red die nest, matching the 22-18 AWG barrel. Using a generic pliers squeeze on an insulated barrel this small is how you get pull-out failures on a control panel.
5) Is the Sta-Kon RA737M made in the USA for government or Buy American jobs?
Country of origin on the RA737M is the United States, which is what procurement needs for Buy American documentation on federal, municipal, and institutional work.
