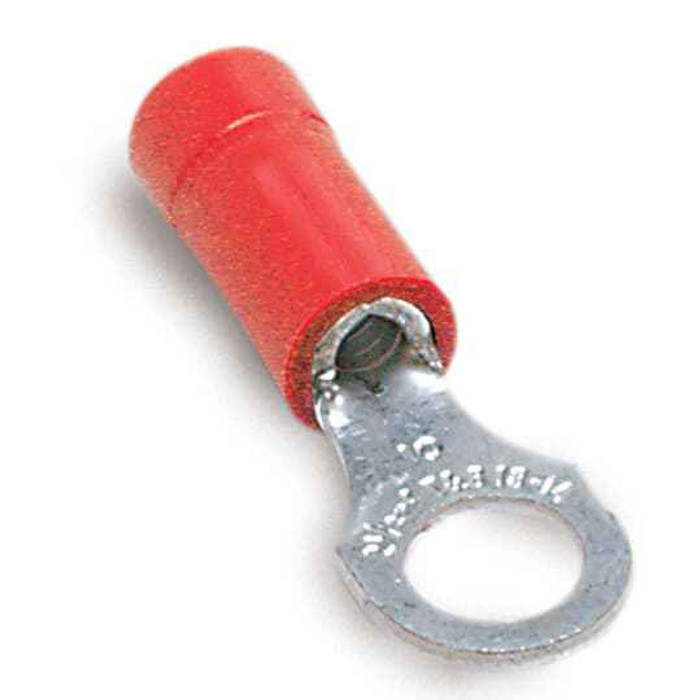

INS VIN RNG TRM 22-16 5/16 RED BELT
Manufacturer Resources
Product Specs
- Application:
- Wiring terminations or connections for applications such as wiring harness, panelboard, telecommunications, and automotive.
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 22-16 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Copper
Sta-Kon RA727M – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RA727M ring terminal accept?
The RA727M takes 22 to 16 AWG stranded copper wire. The red vinyl insulation is the standard color code for that range, so if you are crimping 14 or 12 AWG you need a blue or yellow barrel instead, not this one.
2) Is this red ring terminal rated for 600 volt control and panelboard wiring?
Yes. The Sta-Kon RA727M carries a 600 V rating and is UL recognized under file E9809, which covers it for panelboard, wiring harness, telecommunications, and automotive terminations.
3) Is the barrel on the RA727M copper or aluminum, and can I use it on aluminum conductors?
The conductor barrel is copper, so it is for copper wire only. Aluminum conductors need a terminal specifically marked AL or AL9CU with the proper inhibitor compound; crimping aluminum into a copper barrel sets up a dissimilar metal joint that corrodes and loosens.
4) Does the RA727M come loose in a bag or on a belt for a crimp tool?
It is supplied belted, meaning the terminals are strip-mounted for feeding into a semi-automatic or bench crimp applicator. If you are doing hand crimping one at a time in a panel, loose-piece packaging is the easier buy; belted stock is for harness and production work.
5) Is the insulation on this ring terminal nylon or vinyl, and does that matter for engine bay wiring?
The RA727M uses vinyl insulation. Vinyl handles general panel and automotive harness work fine, but nylon insulated terminals hold up better where heat and abrasion are higher, such as close to an engine or in a conduit pull. Pick nylon if the run sees sustained heat.
6) Is the Sta-Kon RA727M made in the USA for a government or institutional spec job?
Country of origin is the United States, which is what a federal, municipal, or institutional buyer working to a domestic sourcing clause needs on the submittal. Order it by the manufacturer part number RA727M.
