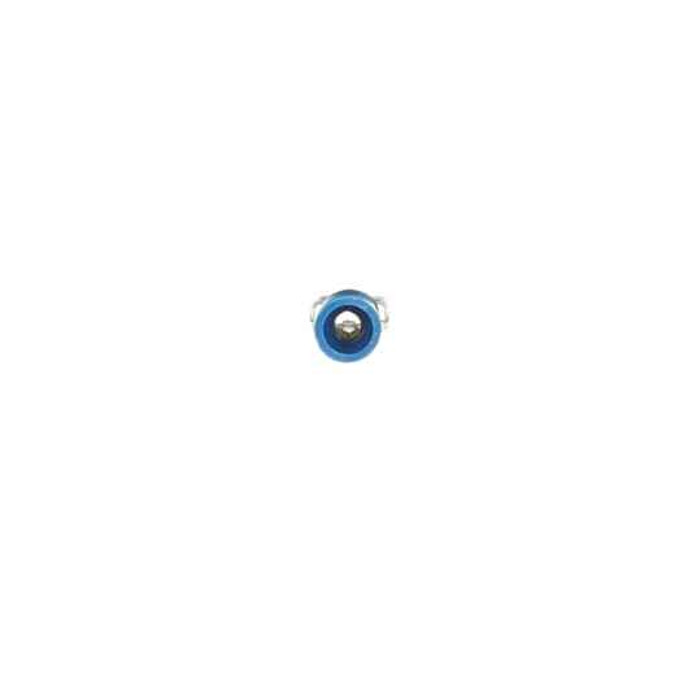

INS VINYL FEM 250 DISC No16-14 BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Vinyl
- Product Subgroup:
- Disconnects
- Product Type:
- Vinyl Insulated Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Brass
Sta-Kon 14RB-250FCP – Frequently Asked Questions
1) What wire size does the Sta-Kon 14RB-250FCP female disconnect crimp onto?
The Sta-Kon 14RB-250FCP is sized for 16-14 AWG stranded or solid copper wire, which is why the insulation sleeve is blue. Blue is the standard color code for the 16-14 AWG range, so if you are working in 22-18 AWG (red) or 12-10 AWG (yellow), this is the wrong barrel and the crimp will not hold.
2) Will this blue disconnect fit a 1/4 inch male tab?
Yes. The 250 in 14RB-250FCP means a .250 inch (1/4 inch) tab width, so it slides onto standard 1/4 inch quick-connect male tabs found on motors, relays, switches and HVAC contactors. It will not mate with .187 or .110 tabs.
3) Is the Sta-Kon 14RB-250FCP a male or female quick disconnect?
Female. It is the receptacle half that slips over a male tab, so order it for the wire end that plugs onto equipment terminals. If your tab is on the wire side, you need the male spade instead.
4) Is this disconnect UL listed for panel and control wiring?
It carries UL file E66716. The barrel is brass with a vinyl insulating sleeve, which is the common choice for 600V control and appliance wiring where a fully insulated connection is required.
5) What part number do I order to match existing blue Sta-Kon 1/4 inch female disconnects?
Order Sta-Kon 14RB-250FCP. That is the manufacturer part number for the vinyl insulated, blue, 16-14 AWG female 250 disconnect, and it is made in the United States.
6) Do I need a special crimp tool for these Sta-Kon terminals?
Use an insulated-terminal crimper matched to the blue 16-14 AWG die. Pliers or an uncalibrated tool will deform the brass barrel and leave a high-resistance joint. The vinyl sleeve stays on during crimping; the die compresses barrel and sleeve together.
