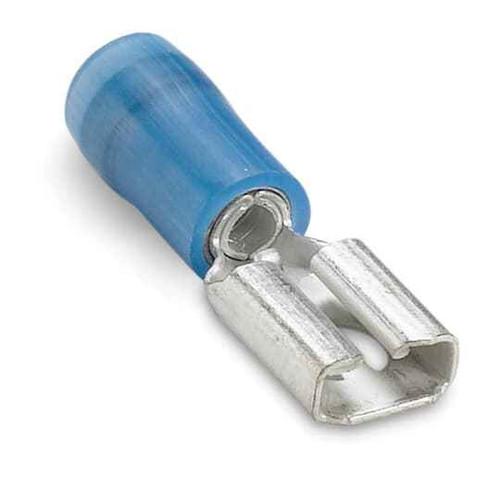

VNYL INS FEM DISC 16-14 BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Vinyl
- Product Subgroup:
- Disconnects
- Product Type:
- Vinyl Insulated Female Disconnect
- Standards:
- UL E66716
- Wire Size:
- 16-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Vinyl
Sta-Kon 14RB-250FL – Frequently Asked Questions
1) What wire gauge does the Sta-Kon 14RB-250FL female disconnect crimp onto?
The 14RB-250FL takes 16-14 AWG stranded wire. That is the blue color code range on insulated terminals, so if the wire you are terminating is 18 or 22 AWG you need a red-barrel terminal instead, and 12-10 AWG needs yellow.
2) Is the Sta-Kon 14RB-250FL a male or female quick-disconnect?
It is the female half, meaning it slides onto a 1/4 inch male spade tab, the kind found on contactors, relays, switches and motor terminals. If you need the blade side on your wire, you want a male disconnect, not this part.
3) Is the blue insulation on the 14RB-250FL just color coding, or does it matter electrically?
Both. The sleeve is vinyl, which insulates the crimped barrel so a terminal landing next to it on a crowded contactor cannot short against it, and blue is the standard industry code for the 16-14 AWG range. Techs reading your panel will know the gauge from the color without pulling the terminal.
4) Do I need a special crimper for the 14RB-250FL, or will pliers work?
Use an insulated-terminal crimper sized for the blue 16-14 AWG range. Vinyl-sleeved barrels like this one are designed to be crimped through the insulation in the matching color-coded nest; pliers deform the barrel unevenly and give you a joint that backs out under vibration.
5) Is 14RB-250FL the actual part number to order?
Yes, 14RB-250FL is the manufacturer part number for this Sta-Kon vinyl insulated female disconnect, and it is the only model on the item. Nothing further to specify on gauge or color: the part is fixed at 16-14 AWG blue.
6) Is the Sta-Kon 14RB-250FL made in the USA?
Country of origin on the 14RB-250FL disconnect is the United States, which matters if you are filling a government or institutional order with domestic-content language in the spec.
