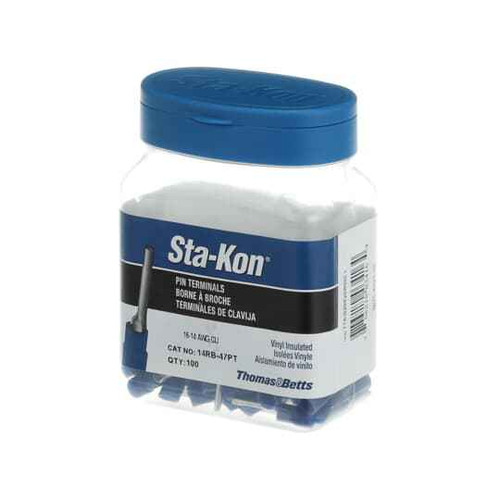

INS VINYL PIN TERMINAL No16-14 BLUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Vinyl Insulated Pin Terminal
- Voltage Rating:
- 300 V
- Wire Size:
- 16-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper
Sta-Kon RB47PT – Frequently Asked Questions
1) What wire size does the Sta-Kon RB47PT pin terminal take?
The RB47PT is sized for 16-14 AWG stranded or solid conductor. The blue insulation is the standard color code for that range, so on a panel where you also run red (22-16) and yellow (12-10) terminals, blue tells the next tech the gauge without pulling the wire. Anything smaller than 16 AWG won't be gripped properly by the barrel, and 12 AWG won't seat.
2) What is a pin terminal used for instead of a fork or ring terminal?

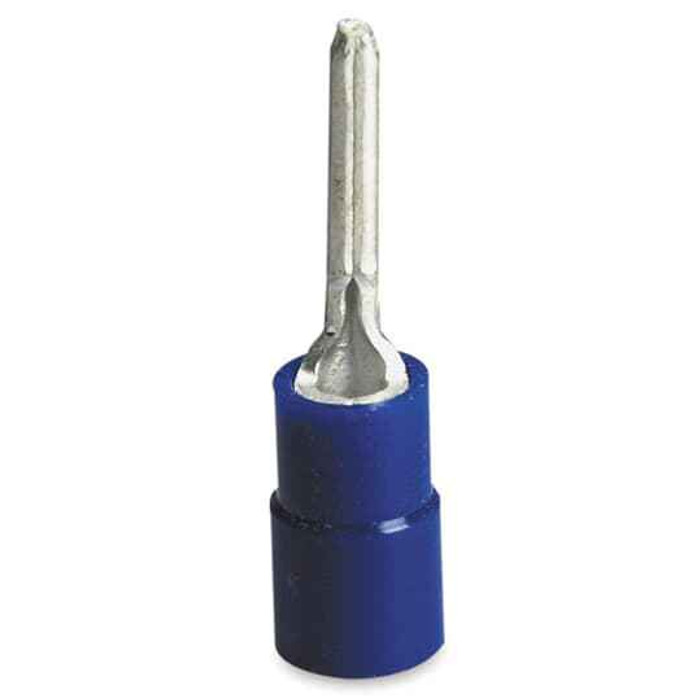

A pin terminal ends in a solid cylindrical pin, so it goes into a clamp-type or screw-cage connector the way a bare solid wire would, but without the loose strands. Fork and ring terminals are for screw-and-washer posts where you tighten down on a flat tongue. If the device has a captive screw clamp or a cage terminal block, the RB47PT is the right end; if it has a stud, use a ring or fork.
3) Is the Sta-Kon RB47PT barrel copper or aluminum?
Copper barrel with vinyl insulation over it. That makes it a copper-to-copper termination, so use it on copper conductors only. Aluminum conductors need a terminal rated AL/CU with the appropriate inhibitor compound.
4) Do I need a special crimp tool for the RB47PT, or will pliers work?
Pliers are not a crimp. The RB47PT is an insulated barrel terminal in the 16-14 AWG range, so it needs a ratcheting or plier-type crimper with the insulated-terminal nest that matches the blue color band. Crimping an insulated terminal in a non-insulated die crushes the vinyl and gives you a joint that pulls out. The tool is not supplied with the terminal.
5) Is the Sta-Kon RB47PT made in the USA?
Yes. Country of origin on the RB47PT is the United States, which matters if you are filling a government, school district, or federally funded MRO order with domestic-sourcing language in the spec.
6) What part number do I order for a blue 16-14 AWG Sta-Kon pin terminal?
Order Sta-Kon RB47PT. That is the manufacturer part number, and it is the single configuration offered: blue vinyl insulation, copper barrel, 16-14 AWG, 300 V. There is no finish or length choice to specify.
