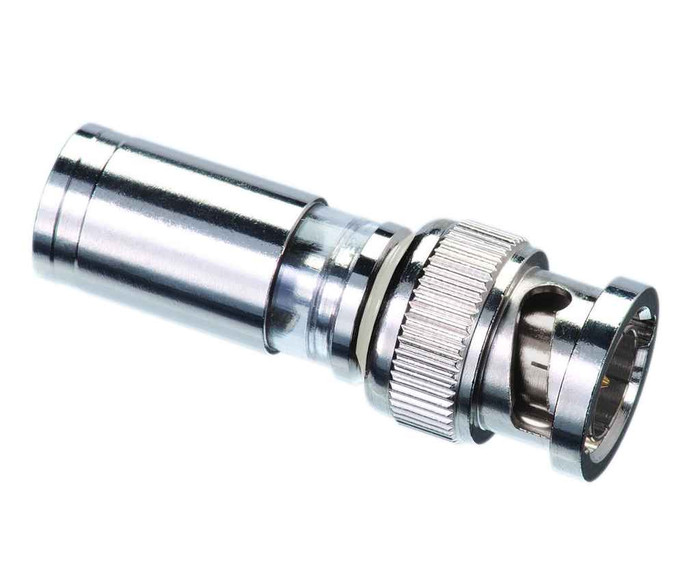

IDEAL Industries 89-049 InSITE™ RG-59 Plenum BNC Compression Connector -15 pk

Features

• RTQ™ design allows Regular/Tri/Quad shield cables to work in many BNC connectors
• Nickel plated brass bodies with color band series identification
• In addition to the InSITE feature, other improvements have been made to our BNC connectors
• Designed for optimal performance on 75Ω coaxial cables
• >40 pounds cable retention on all models
• Accepts 23-18 AWG solid center conductor pins – wider range than the competition
• Accepts RG-59 plenum coax
• Fixed position, gold plated center pin won’t come loose or separate from the connector
• Smoother and easier mating with sockets through increased BNC head travel range
• Lower cable insertion force – easier to push the connector on to the cable
• Increased ranges of compatible cable jacket diameters – works with more cable types and cable manufacturers
• A redesigned funneled pin entry - centers angled pins, reduces pin collapsing
