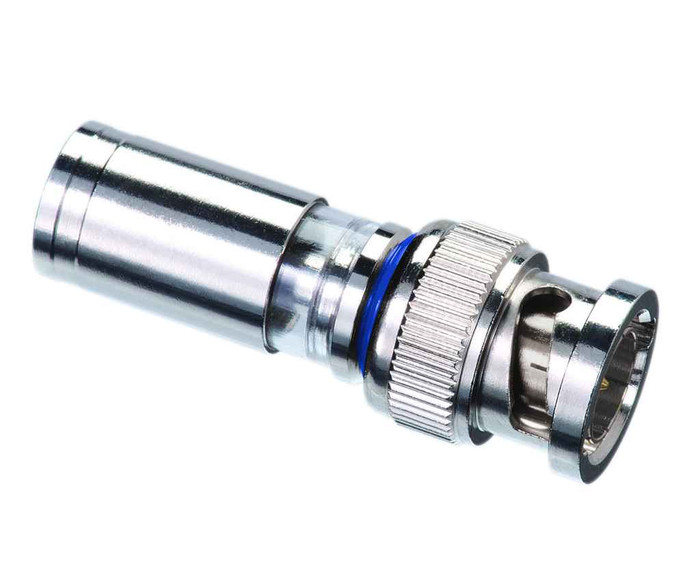

InSITE™ RTQ™ RG-6 BNC Compression Connector -4 pk
92-705 - spec sheet
Features
- Nickel plated brass bodies with color band series identification
- Designed for optimal performance on 75Ω coaxial cables
- Accepts 23-18 AWG solid center conductor pins – wider range than the competition
- Accepts RG-6/RG-6 Quad/RG-6 Plenum/RG-6 Plenum Quad coax cables
- RTQ™ design allows Regular/Tri/Quad shield cables to work in many BNC connectors
- Smoother and easier mating with sockets through increased BNC head travel range
- A redesigned funneled pin entry - centers angled pins, reduces pin collapsing
- Increased ranges of compatible cable jacket diameters – works with more cable types and cable manufacturers
- Lower cable insertion force – easier to push the connector on to the cable
- >40 pounds cable retention on all models
- Fixed position, gold plated center pin won’t come loose or separate from the connector
92-705 - spec sheet
Manufacturer Resources
Product Specs
- Product Group:
- Switches
- Deparetment:
- Electrical
- Product Subgroup:
- Switches & Receptacles
- Better Return Loss Performance:
- >35dB up to 1 GHz, >25dB up to 2 GHz, >20dB up to 3 GHz
- Center Conductor Range:
- 23-18 AWG Solid (.023” - .040”)
- Connector Model:
- 6BNCISRTQ
- Dielectric Diameter Range:
- .168” - .183”
- Frequency Range:
- 0 MHz to 3 GHz
- Outer Jacket Diameter Range:
- .226” - .305”
- Recommended Cable Prep Stripping Tools:
- 45-605 PrepPRO™
- Recommended Compression Tools:
- 30-793 OmniSeal™ PRO XL; 33-632 Linear X®3
- parent sku:
- IDL-92-705
