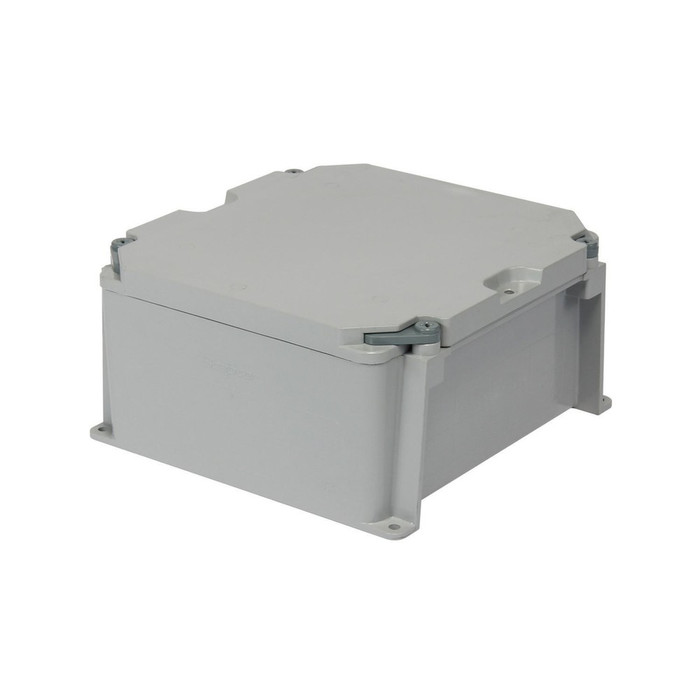

IPEX 277006 8"x8"x4" PVC Junction Box, Grey Scepter
The IPEX 277006 Scepter JBox is an 8"x8"x4" non-metallic junction box built from durable PVC, designed for both indoor and outdoor electrical installations in demanding environments. This grey PVC enclosure resists impact across a wide temperature range and is unaffected by water and chemical exposure, making it a reliable choice for industrial, commercial, and utility applications. Because the Scepter JBox is entirely non-metallic, it eliminates corrosion concerns tied to screws and other metal hardware, and it carries NEMA 1, 2, 3R, 4, 4X, 6*, 6P*, 12, and 13 ratings for use across a broad range of enclosure environments.
Key Features
- Trade Size: 8"x8"x4" enclosure dimensions provide ample interior space for conduit terminations and wiring connections.
- Durable Construction: Molded PVC material offers excellent impact resistance and long-term durability in a wide range of temperatures.
- Non-Metallic Design: Entirely non-metallic construction, including fasteners, eliminates corrosion concerns associated with metal screws and hardware.
- Molded Mounting Feet: Located on the corners, out of the way of conduit connections, for simplified installation.
- Integrated Gasket: Permanently fixed to the cover, requiring no separate installation and helping maintain the box's environmental ratings.
- Fasteners: Close by hand or with tool assist to open, and are 100% non-metallic for corrosion-free operation.
- Built-In Gridlines: Provide an easy reference for drilling knockouts accurately and consistently.
- Finish: Grey PVC finish suited for a wide variety of visible or concealed installation locations.
Certifications & Compliance
- NEMA 1, 2, 3R, 4, 4X, 6*, 6P*, 12, and 13 Rated
- CSA C22.2 No. 94
- CSA C22.2 No. 94.1
- CSA C22.2 No. 94.2
- CSA C22.2 No. 40
- UL 50
- UL 50E
Technical Specifications
- Diameter1: 8"
- Material: PVC
- Diameter2 Imperial: 8"
- Diameter3 Imperial: 4"
- Color: Grey
- Country of Origin: Canada
Typical Applications
- Indoor and Outdoor Electrical Installations
- Wet, Corrosive, and Chemical-Exposure Environments
- Conduit and Raceway Junction Points
- Industrial and Commercial Wiring Enclosures
- Utility and Infrastructure Electrical Systems
Why IPEX?
IPEX's Scepter JBox line combines a fully non-metallic PVC construction with an integrated gasket and 100% non-metallic fasteners to deliver a junction box that resists corrosion, impact, and chemical exposure across demanding NEMA-rated environments. Backed by CSA and UL certification and manufactured in Canada, the 277006 Scepter JBox is engineered for dependable, code-compliant performance in both indoor and outdoor electrical installations.
Manufacturer Resources
Spec Sheet
Product Specs
- Diameter1:
- 8"
- Base Quantity Metric:
- 1.000
- NAFTA:
- Yes
- Diameter3 Imperial:
- 4"
- Diameter2 Imperial:
- 8"
- list_batch:
- IPE-20260924
- Product Type:
- Junction Box
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Material:
- PVC
- Product Color:
- GREY
- Product Size:
- 8"x8"
- Product Group:
- Boxes & Enclosures
- Product Weight:
- 1.792 kg
IPEX 277006 – Frequently Asked Questions
1) Can the IPEX 277006 junction box be used outdoors in a wet location?
Yes. The 277006 Scepter JBox carries NEMA 1, 2, 3R, 4, 4X, 12 and 13 ratings (plus 6 and 6P with conditions), so it is suited to outdoor, wash-down and wet locations as well as indoor use. The gasket is permanently fixed to the cover, so the seal is there as soon as you close the lid, and the PVC body is unaffected by water and chemical exposure.
2) What size is the IPEX 277006 Scepter junction box inside?
It is an 8 x 8 x 4 inch enclosure, grey PVC. That 4 inch depth is what decides most jobs, it gives room behind the cover for conduit terminations and wire nuts or small terminal blocks. If you need more depth for stacked splices or a deeper device, step up to a larger Scepter box.
3) Does this PVC junction box come with knockouts, or do I drill my own?
You drill your own. The Scepter JBox has built-in gridlines molded into the walls as a reference so you can lay out and drill hole locations accurately. That means you pick the conduit entry size and position to suit the run rather than working around factory knockouts, but plan on supplying your own hole saw and the appropriate PVC terminal adapters or fittings.
4) Will a corrosive or chemical environment attack the screws on this box?
No metal to attack. The 277006 is entirely non-metallic including its fasteners, so there are no steel screws or hinges to rust out in a chlorine room, plating shop, or coastal install. That is the main reason crews pick a PVC box over a painted steel or even stainless enclosure in corrosive service.
5) How does this box mount to a wall or strut?
Molded mounting feet are built into the corners of the enclosure, positioned clear of the conduit entry areas so your fittings and the fasteners don't fight each other. You supply the anchors or bolts appropriate to the substrate.
6) Do I need a tool to open and close the cover on the 277006?
The cover fasteners close by hand and need a tool assist to open. Handy for maintenance access on a panel you open repeatedly, and because the fasteners are non-metallic they won't seize from corrosion the way metal screws in a steel enclosure do.
7) Where is the IPEX 277006 made, and does it qualify under NAFTA/USMCA?
Manufactured in Canada, and flagged NAFTA qualifying. That matters on government, institutional, and utility work with domestic or trade-agreement content requirements on the bill of materials.
8) Is this grey junction box OK for exposed installs where appearance matters?
The grey PVC finish is the standard Scepter colour and works for either exposed or concealed runs, matching typical grey PVC conduit and fittings. For a facility standardizing on PVC raceway, the box reads as part of the same system rather than a mismatched metal enclosure.
