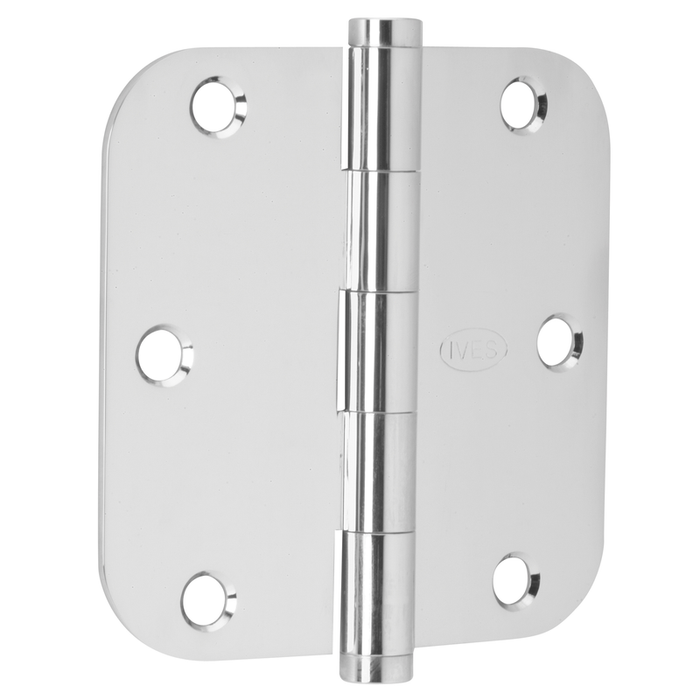

Ives 1011RP Residential Plain Bearing Hinges with 5/8" Radius Corners and Removable Pin

(No reviews yet) Write a Review

Model: 1011RPF619E
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$37.50
$26.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 1000 Series Residential Plain Bearing Hinges with 5/8" Radius Corners and Removable Pin

Professional Residential Door Hardware Solution

The Ives 1000 Series residential hinges deliver reliable plain bearing performance for doors weighing less than 70 lbs and not exceeding 3'0" x 7'0". These 3-1/2" x 3-1/2" full mortise hinges feature button non-rising pins and caps with 5/8" radius corners for smooth residential applications. Constructed with steel substrate and designed for low frequency use, these hinges exceed ANSI/BHMA A156.1 performance standards and meet ANSI/BHMA 156.7 template dimensions.

Professional Features & Benefits

  • Optimal Door Compatibility: Designed for doors weighing less than 70 lbs and not exceeding 3'0" x 7'0" dimensions for proper residential applications.
  • Standard Hinge Dimensions: 3-1/2" x 3-1/2" size provides versatile installation options for most residential door applications.
  • Plain Bearing Construction: Standard weight door design with plain bearing system optimized for low frequency residential use.
  • Removable Pin Design: Button non-rising pins and caps allow for easy door removal when maintenance or replacement is needed.
  • Radius Corner Profile: 5/8" radius corners provide smooth, professional appearance and reduce potential catch points.
  • Complete Installation Package: Packed with #9 x 1 FPHWS fasteners for wood doors, providing everything needed for installation.
  • Steel Construction: Durable steel substrate provides reliable performance for residential applications.
  • Industry Compliance: Exceeds ANSI/BHMA A156.1 performance standards and meets ANSI/BHMA 156.7 template hinge dimensions for code compliance.

Technical Specifications

  • Commercial/Residential: Residential
  • Corner Style: 5/8" Radius Corners
  • Department: Door Hardware
  • Duty Level: Medium Duty
  • Fasteners: Wood and Machine Screws
  • Product Category: Door Hinges and Pivots
  • Product Function: Plain Bearing
  • Product Group: Door Hinges and Pivots
  • Product Model: 1011
  • Product Size: 3-1/2" x 3-1/2"
  • Product Subgroup: Full Mortise Hinges
  • Product Substrate: Steel
  • Product Type: Hinges
  • Series: 1000
  • Subcategory: Hinges and Pivots

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Residential Interior Doors
  • Apartment and Condominium Units
  • Single-Family Home Construction
  • Residential Renovation Projects
  • Light Commercial Residential-Style Applications
  • Multi-Family Housing Developments
  • Residential Property Management

Why Choose Ives Quality?

Ives 1000 Series hinges deliver professional-grade reliability with steel construction and plain bearing design tested to exceed ANSI/BHMA A156.1 performance standards. These hinges are engineered for demanding residential applications where dependable performance and code compliance are essential, with complete fastener packages included for convenient installation.

Product Specs

Product Group:
Door Hinges and Pivots
Series:
1000
Fasteners:
Wood and Machine Screws
Corner Style:
5/8" Radius Corners
Subcategory:
Hinges and Pivots
Product Subgroup:
Full Mortise Hinges
Product Type:
Hinges
Duty Level:
Medium Duty
Commercial/Residential:
Residential
Product Model:
1011
Product Function:
Plain Bearing
Product Size:
3-1/2" x 3-1/2"
Product Category:
Door Hinges and Pivots
Product Substrate:
Steel
Department:
Door Hardware

Ives 1011RPF619E – Frequently Asked Questions

1) Will Ives 1011RP hinges hold a solid core door, or are they only for hollow core interior doors?
The 1011RP is rated for doors under 70 lbs that do not exceed 3'0" x 7'0". A typical 1-3/8 inch solid core interior door at 3'0" x 7'0" runs close to or above that ceiling, so on solid core slabs you are at the edge of the rating. For hollow core and light panel doors it is well inside it. If the door is heavier or larger than 3'0" x 7'0", step up to a ball bearing hinge rather than a plain bearing one.
2) Are screws included with the Ives 1011RP, and are they the right ones for a steel frame?
Each hinge is packed with #9 x 1 inch flat head phillips wood screws, which are what you want going into a wood jamb and a wood door. They are not the fastener for a hollow metal frame. A steel frame is drilled and tapped for 12-24 machine screws, so you will need to source those separately if the jamb is metal.
3) Can I take the door off without unscrewing the hinges from the frame?
Yes. The 1011RP uses a removable button non rising pin, so you tap the pin up and out and lift the door off the frame leaves. That is what you want for a rental turn, moving furniture, or painting a door off the opening. Because the pin pulls, this is not a hinge for an outswing exterior door where the barrel is on the outside, use a non removable pin hinge there such as the Deltana CSB45N.
4) I have a 4 inch hinge on the door now, can I use the Ives 1011RP instead?
Not without rework. The 1011RP is 3-1/2" x 3-1/2", so it is a half inch shorter and a half inch narrower than a 4 inch hinge, leaving open mortise at the top and bottom and a screw pattern that does not line up. Stay at 4 inch, the Delaney RH40xx and RH45xx are 4" x 4" residential hinges with the same 5/8 inch radius corner, and Orca makes a 4" x 4" square corner plain bearing commercial hinge if the existing mortise is square.
5) What is the closest equivalent to an Ives 1011RP 3-1/2 inch residential hinge from another brand?
The Schlage Residential S3P1010 is the nearest match. It is a 3.5 inch x 3.5 inch plain bearing full mortise hinge in the 1000 series, medium duty, sold in a pack of three - the same size, same plain bearing function, and same duty level as the Ives 1011RP, which is a 3-1/2 inch x 3-1/2 inch medium duty plain bearing hinge. The one difference to check before you order is the corner: the Schlage S3P1010 has square corners, while the 1011RP has 5/8 inch radius corners. Radius and square corners are not interchangeable in an existing mortise - a square corner hinge will not sit in a routed radius pocket without chisel work, and a radius hinge leaves gaps at the corners of a square pocket. Match the corner to what is already cut in the door.
6) Can I use an Ives 1011RP on a commercial opening instead of a commercial hinge?
The Ives 1011RP is specified as residential, medium duty, plain bearing, for doors under 70 lbs and not exceeding 3'0" x 7'0" in low frequency use. For a commercial opening, the hinges built for it are different parts: the Orca Hardware 3514 is a 3.5 inch x 3.5 inch plain bearing commercial hinge with 1/4 inch radius corners, medium duty; the Orca 4014 is the same commercial plain bearing build at 4 inch x 4 inch with 1/4 inch radius corners. Note the corner radius on the Orca hinges is 1/4 inch, not the 5/8 inch radius the 1011RP is cut to, so they are not a swap into a residential pocket. Size the hinge to the door weight and the traffic the opening actually sees.
7) What 3-1/2 inch hinge holds up better than a plain bearing hinge on a heavily used door?
Step up to a bearing hinge in the same 3-1/2 inch size. The Emtek 94013 is a heavy duty ball bearing hinge at 3-1/2 inch x 3-1/2 inch in plated steel, sold as a pair, and the Emtek 92013 is a heavy duty plain bearing hinge at the same 3-1/2 inch x 3-1/2 inch. Both carry square corners. The Ives 1011RP is a medium duty plain bearing hinge sized 3-1/2 inch x 3-1/2 inch for doors under 70 lbs and no larger than 3'0" x 7'0", built for low frequency residential use. On an apartment entry, a corridor door, or anything cycling all day, the heavier bearing construction is the one specified.
8) My doors take 4 inch hinges with a 5/8 inch radius - what do I order instead of the 1011RP?
The Ives 1011RP is a 3-1/2 inch x 3-1/2 inch hinge, so it will not fill a 4 inch mortise. In 4 inch with the same 5/8 inch radius corner, the Delaney RH45xx is a bulk residential exterior hinge at 4 inch x 4 inch with 5/8 inch radius, sold by the pair, and the Delaney RH40xx is a 4 inch x 4 inch residential hinge offered in 5/8 inch radius and square corner. If the 4 inch opening is commercial rather than residential, the Orca 4040 is a 4 inch x 4 inch square corner plain bearing commercial hinge and the Orca 4014 is the 1/4 inch radius corner version of the same. Measure the existing hinge leaf height before ordering.
9) I need a hinge that cannot be pulled from the outside - is the Ives 1011RP the right choice?
No. The Ives 1011RP uses a removable pin with button non-rising pins and caps, which is what lets you lift a door off for maintenance - the opposite of what an out-swinging exterior or secure door needs. For a non-removable pin, the Hager BB1168 is a non-removable pin full mortise ball bearing heavy duty hinge, and the Deltana CSB45N is a 4-1/2 inch x 4-1/2 inch square hinge with a non-removable pin, sold as a pair. The Deltana DE44R5TA is a 4 inch x 4 inch security hinge with 5/8 inch radius corners in steel. Any door that swings out into a public corridor or exterior should be on an NRP or security hinge.
10) Do I have to specify handing when I order Ives 1011RP hinges?
No. A full mortise butt hinge like the 1011RP is symmetrical and non handed, the same hinge works on a left hand or right hand door. What you do need to get right is which way the pin drops in, since the button non rising pin is removable from the top, so the barrel has to be oriented pin up on the hung door for the door to come off cleanly.
11) What finishes does the Ives 1011RP residential hinge come in for matching the rest of the door hardware in a unit?
Six finishes: 605 bright brass, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, and 643E aged bronze. For property managers standardizing a building, 626 satin chrome and 619 satin nickel are the two that pair with most residential lever lines, and 622 matte black matches current black trim packages.
12) Is the Ives 1011RP steel or brass, and will the finish hold up in a bathroom or a coastal unit?
The 1011RP is built on a steel substrate with a plated finish. Steel base hinges are the standard for interior residential openings and that is where this one belongs. For high moisture or salt air, steel is the wrong base metal regardless of plating, a non ferrous hinge such as the McKinney T2314 is what to specify there.
13) Do Ives 1011RP hinges meet ANSI/BHMA standards for a multi-family project spec?
The 1011RP is tested to exceed ANSI/BHMA A156.1 performance requirements and meets ANSI/BHMA A156.7 template hinge dimensions. The A156.7 template compliance is the one that matters on a spec job, it means the hole pattern is the industry template and the hinge interchanges with any other template hinge of the same size.
14) Can I run wire through an Ives 1011RP for an electric strike or access control?
No. The 1011RP is a plain mechanical butt hinge with no conductor path through it. Power transfer through the hinge requires a purpose built electrified hinge, Command Access ETH-CB70 is a 3 knuckle standard weight energy transfer hinge, and the ETM-CB70 adds an integrated door position switch if you also need door status monitoring.
15) What is the difference between a plain bearing hinge and a ball bearing hinge when choosing a replacement?
Plain bearing hinges run knuckle on knuckle with no bearing race between them, which suits lighter doors and lower cycle counts. The Ives 1011RP is a plain bearing hinge at medium duty, sized 3-1/2 inch x 3-1/2 inch for doors under 70 lbs in low frequency use. Ball bearing hinges carry bearings between the knuckles to handle weight and cycles: the Orca 3535 is a 4-1/2 inch x 4-1/2 inch square corner ball bearing commercial hinge at medium duty, and the Don-Jo HWBB74545 is a heavy weight full mortise ball bearing hinge at 4-1/2 inch x 4-1/2 inch, heavy duty. If the door is a hollow metal commercial leaf or carries a closer, the buyer is shopping the ball bearing side of that line, not the 1011RP.
16) Is there a 3-1/2 inch radius corner residential hinge sold in bulk for a whole building of doors?
Yes. The Delaney RH35xx is a 3-1/2 inch x 3-1/2 inch bulk steel residential interior hinge with 5/8 inch radius corners, sold by the pair. That is the same size and the same 5/8 inch radius corner profile as the Ives 1011RP, so it drops into the same routed pocket. The Delaney is specified for interior residential doors; the Ives 1011RP is a residential plain bearing hinge for doors under 70 lbs. For a unit turnover or a multi-family rehab where every interior door takes the same hinge, either fits the same prep - decide on finish and packaging.
17) Will a Deltana DSB35 work in place of an Ives 1011RP?
Only if the mortise has square corners. The Deltana DSB35 is a 3-1/2 inch x 3-1/2 inch residential square hinge sold as a pair - matching the 3-1/2 inch x 3-1/2 inch size of the Ives 1011RP and the same residential application. The corner is where they part: the DSB35 is a square hinge, while the 1011RP is cut with 5/8 inch radius corners. In new construction where the pocket has not been routed yet, either works and the router bit follows the hinge. In a replacement, the corner already cut in the jamb decides it.
18) Which hinges look similar to the Ives 1011RP but will not work as a substitute?
Several hinges share the full mortise shape and are built for an entirely different job. The BEST CECB179-12C is a steel full mortise concealed bearing electrified hinge with a 12-wire quick connect, and the Command Access ETH-CB70 is a 3 knuckle standard weight energy transfer hinge - both exist to carry power through the door to an electric lock, not simply to hang it. The Command Access ETM-CB70 adds door position sensing on top of that. The Stanley 2060R is a spring hinge, which self-closes the door. The Ives 1011RP is a plain bearing residential hinge with a removable pin and no electrical or closing function. If the opening has an electric strike, a card reader, or a self-closing requirement, none of those jobs are done by the 1011RP.
19) What hinge do I use for a 3 inch mortise on a small closet or cabinet door?
The Ives 1011RP is a 3-1/2 inch x 3-1/2 inch hinge and will overhang a 3 inch pocket. For 3 inch, the Deltana DSB3 is a 3 inch x 3 inch square hinge sold as a pair. Bifold and narrow closet doors are commonly hung on 3 inch leaves, so measure the leaf height on the existing hinge rather than assuming it matches the 3-1/2 inch used on passage doors elsewhere in the unit.
20) For a standard weight commercial hollow metal door, what replaces a residential plain bearing hinge?
Move to a 5-knuckle architectural hinge sized for the door. The McKinney MP79 MacPro is a full mortise 5-knuckle standard weight hinge, and the McKinney MPB79 MacPro is the 5-knuckle standard weight hinge in the same MacPro family; both are standard duty. The Stanley FBB191 is a 5-knuckle full mortise standard weight hinge at 4.5 inch x 4.5 inch. The Ives 1011RP is a residential medium duty plain bearing hinge for doors under 70 lbs and no larger than 3'0" x 7'0", so a full-size hollow metal leaf is outside what it is specified for. Weigh the door and check the leaf size cut into the frame before selecting.
21) Is there a plain bearing hinge for a door that is not mortised into the frame?
Yes, and it is a different mounting family entirely. The Hager 1129 is a half mortise plain bearing commercial hinge, 4-1/2 inch standard weight steel, heavy duty - half mortise means one leaf mortises into the door and the other surface-mounts to the frame. The Hager 990 STEEL is a full surface prison hinge, 3 inch x 4 inch, plain bearing with a welded tip, where both leaves mount on the surface. The Ives 1011RP is a full mortise hinge, so both of its leaves need a routed pocket in the door and jamb. Channel iron frames and clad openings often take half mortise or full surface instead.
22) Do I need a non-ferrous hinge instead of a steel one for a bathroom or coastal door?
If the opening sees moisture, look at a non-ferrous body. The McKinney T2314 is a non-ferrous hinge, standard weight, 5 knuckle, medium duty. The Ives 1011RP is built on a steel substrate as a residential plain bearing hinge, which suits interior residential doors. On a pool room, a beach-front exterior, or a wash-down area, the non-ferrous option is the one that holds its face over time.
23) What hinge is used on a detention or high-security opening rather than a residential hinge?
Detention openings use a purpose-built hinge. The BEST BB855 is a heavy-duty steel double weight concealed ball bearing prison hinge in the detention hardware family, and the Stanley BB855 is a double weight prison hinge at 5 inch by 6 inch, furnished with no holes and not swaged, heavy duty. The Ives 1011RP is a residential medium duty plain bearing hinge with a removable pin - correct for a unit interior door, and not what a correctional or holding-cell spec calls for.
24) Is a decorative square barrel hinge an option in place of a standard residential hinge?
It is, at a larger size and with a different look. The McKinney SQ3331 is a square barrel 2-knuckle decorative hinge at 4-1/2 inch by 4-1/2 inch, standard duty - the visible barrel is square rather than the round barrel of a conventional hinge, and it uses two knuckles instead of the usual five. The Hager 920 is a full mortise concealed plain bearing hinge with 2 knuckle steel construction, medium duty. The Ives 1011RP is a 3-1/2 inch x 3-1/2 inch residential plain bearing hinge with 5/8 inch radius corners and a conventional barrel. On a design-driven interior where the hinge is meant to be seen, the square barrel is the different statement; on a straight replacement, size and corner still govern.
