Ives 482Z Zinc Solid Bar Door Guard with Interlocking Strike Plate

Ives 482Z Zinc Solid Bar Door Guard with Interlocking Strike Plate

(No reviews yet) Write a Review

Model: 482Z-626E
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.50
$18.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 482Z Zinc Solid Bar Door Guard with Interlocking Strike Plate

Professional Security Door Guard for Controlled Access

The Ives 482Z Zinc Solid Bar Door Guard provides an additional security layer for commercial doors that are flush with frames. The solid bar interlocks with the ball on the strike plate to permit the door to be slightly opened for viewing while maintaining security. The hinged bar design allows the door guard to be positioned 180В° away from the door when not in use, and the strike plate is specifically designed to prevent the solid bar from marring the inside of the door during operation.

Professional Features & Benefits

  • Interlocking Security Design: Solid bar interlocks with ball on strike plate for secure viewing access while maintaining door protection.
  • Hinged Bar Operation: 180В° positioning capability allows door guard to swing completely away from door when not in use for unobstructed access.
  • Strike Plate Dimensions: H: 2-1/2", W: 7/8" strike plate designed to prevent marring of door interior during operation.
  • Flush Door Compatibility: Specifically designed for use on doors that are flush with frames for optimal fit and function.
  • Zinc Construction: Durable zinc substrate provides corrosion resistance and long-term reliability in commercial applications.
  • ANSI/BHMA Compliance: Meets ANSI/BHMA A156.16 standards for quality and performance assurance.
  • Complete Installation Kit: Packed with sheet metal screws for immediate installation without additional hardware requirements.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.16
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Strike: H: 2-1/2", W: 7/8"
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Model: 482Z
  • Product Subgroup: Door Guards
  • Product Substrate: Zinc
  • Product Type: Door Guards - Swing Bar
  • Subcategory: Latches, Catches and Bolts

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and frame compatibility for flush-mounted doors.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes as specified in manufacturer instructions using provided sheet metal screws.
  4. Install strike plate on frame ensuring proper alignment with door guard mounting position for optimal interlocking function.
  5. Mount door guard to door surface and test hinged bar operation through full 180В° range of motion.
  6. Test interlocking function between solid bar and strike plate ball to verify secure engagement and smooth operation. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities

Why Choose Ives Quality?

Ives door guards deliver professional-grade security hardware with zinc construction and ANSI/BHMA A156.16 compliance for demanding commercial applications. The interlocking solid bar design and anti-marring strike plate demonstrate Ives' commitment to both security and door protection. Engineered for reliable performance in commercial environments where controlled access and door security are essential.

Manufacturer Resources

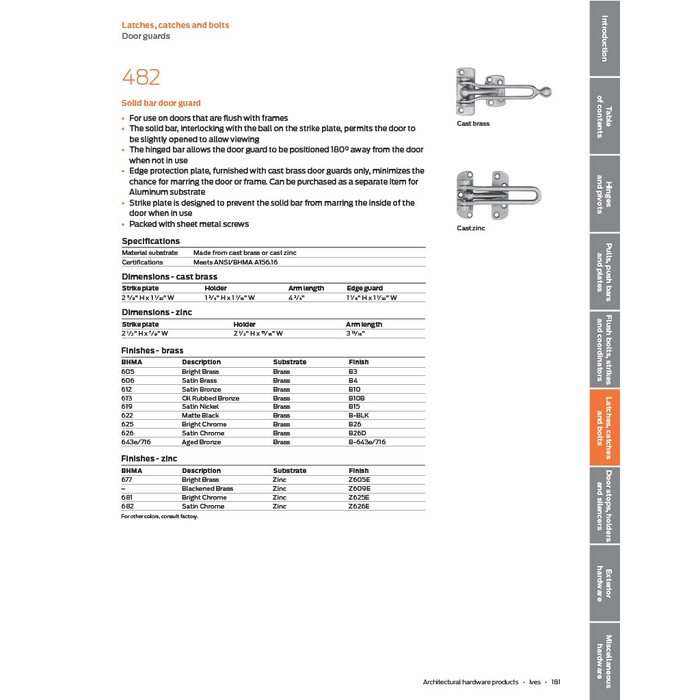

Ives Full Line Catalog

Product Specs

Subcategory:
Latches, Catches and Bolts
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Guards
Product Type:
Door Guards - Swing Bar
ANSI/BHMA:
ANSI/BHMA A156.16
Commercial/Residential:
Commercial
Product Model:
482Z
Door Strike:
H: 2-1/2", W: 7/8"
Product Category:
Door Trim and Accessories
Product Substrate:
Zinc
Department:
Door Hardware

Ives 482Z-626E – Frequently Asked Questions

1) Will the Ives 482Z door guard work on a door that sits flush with the frame?
That's exactly the application it's built for. The 482Z is a swing bar guard for doors flush with their frames, with the bar mounted on the door and the strike plate on the frame. The solid bar drops over the ball on the strike so the door can be cracked open for viewing while it stays latched. On a door with an applied stop or a reveal that leaves the frame face proud of the door, the bar and strike won't align on the same plane and you'd need a different guard style.
2) What size is the strike plate on the Ives 482Z, and how much frame face do I need?
The 482Z strike measures H: 2-1/2 inches by W: 7/8 inch, so you need at least about an inch of flat, uninterrupted frame face to land it, plus clearance above and below for the 2-1/2 inch height. On a narrow hollow metal stop or a frame with an applied stop eating the face, check that dimension before you drill. The strike is shaped to keep the bar from marring the door as it swings.
3) Is the Ives 482Z rated to a commercial standard for apartment or hotel doors?
It meets ANSI/BHMA A156.16, the standard covering auxiliary hardware including door guards, and Ives lists the 482Z as a commercial product rather than a residential one. If your spec or a housing standard calls for A156.16 auxiliary hardware on unit entry doors, the 482Z answers it directly.
4) Is the Ives 482 a lock, or does it replace my deadbolt?
It's an auxiliary guard, not a lock. The 482Z has no cylinder and no key, and it only works from the inside of the room, so it does nothing when the unit is unoccupied. It goes on top of the existing latch and deadbolt to let an occupant open the door a few inches and identify who is outside. Keep the primary locking hardware on the door.
5) What is a comparable swing bar door guard to the Ives 482Z?
The Delaney Hardware Safety Door Guard, ball bearing (DLY-465800), is the closest comparable swing bar guard. Both are surface-applied bar guards that let a door open a few inches for viewing before stopping. The Ives 482Z is a zinc solid bar guard whose bar interlocks with a ball on the strike plate, and its strike measures H: 2-1/2 in by W: 7/8 in. The 482Z is rated commercial and meets ANSI/BHMA A156.16, so on an opening where the guard has to carry that standard, specify the 482Z rather than substituting.
6) How much does the Ives 482 door guard let the door open when it's engaged?
Enough to see and speak through, not enough to enter. The 482Z is a solid bar guard: the bar stays captured on the ball of the strike plate, so the door opens only to the length of the bar's travel and then stops. Release is from the inside only, by lifting the bar off the ball. It's the commercial equivalent of a chain guard, but with a rigid zinc bar instead of a chain.
7) Do I need to order screws or anchors separately for the Ives 482 door guard?
No extra fasteners to buy. The 482Z ships with sheet metal screws for both the bar and the strike plate. On a hollow metal door and frame those thread straight into the drilled prep; on a wood door they bite as-is. Ives supplies templates for marking the hole locations, so a single unit is a drill-and-drive job.
8) What finishes does the Ives 482 door guard come in, and how do I match my existing hardware?
Four finishes: 677 Bright Brass, 609 Blackened Brass, 681 Bright Chrome, and 682 Satin Chrome. If you're matching satin chrome lever trim across a building, order the 682; bright brass openings take the 677. The 609 blackened brass is the darker antique-look option. All four are the same guard, so pick purely on what the rest of the opening looks like.
9) Is a ball bearing door guard the same thing as the Ives 482Z interlocking bar guard?
They are not the same mechanism, so check before swapping one for the other. The Delaney Safety Door Guard (DLY-465800) is a ball bearing type. The Ives 482Z uses a solid bar that interlocks with a ball on the strike plate, and the strike itself is shaped to keep the bar from marring the inside of the door; the hinged bar swings a full 180 degrees clear of the door when it is not in use. On a fleet of doors already prepped for the 482Z, the strike prep at H: 2-1/2 in by W: 7/8 in and the interlock geometry are what have to match, not just the bar length.
10) Does the Ives 482 guard swing out of the way when it isn't being used?
It does. The bar is hinged and swings a full 180 degrees away from the door, so it lies back flat against the door face and leaves the opening clear. That matters in a corridor or a unit door where a fixed bar would be in the way of a hand truck or a wheelchair on the way through.
11) Will a zinc door guard hold up in a coastal or high humidity building?
The 482Z is zinc, which resists corrosion better than a plain steel chain guard in damp corridors, laundry rooms, or coastal multi-family. The finish over it matters too: satin and bright chrome (682, 681) wear better against handling than the brass finishes, which will patina with use. For a fleet of doors, standardizing on one finish across the building keeps replacements simple later.
