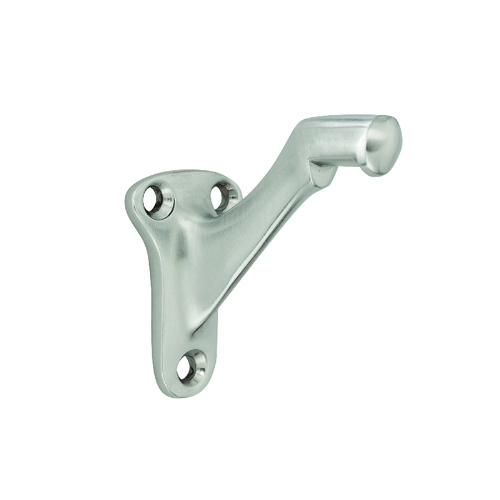

Ives 59B Brass Handrail Bracket with Large Faceplate

(No reviews yet) Write a Review

Model: IVE-59-B3
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$34.50
$16.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives 59B Brass Handrail Bracket with Large Faceplate

Commercial-Grade Handrail Support Hardware

The Ives 59B Brass Handrail Bracket features a large faceplate design measuring H: 2-15/16", W: 1-1/2" for secure wall attachment in commercial applications. Constructed from solid brass substrate for increased strength and durability, this bracket meets ANSI/BHMA A156.16 standards and comes packaged with fasteners for wood applications.

Professional Features & Benefits

  • Large Faceplate Design: H: 2-15/16", W: 1-1/2" dimensions provide secure attachment to wall surfaces for reliable handrail support.
  • Solid Brass Construction: Brass substrate delivers exceptional durability and corrosion resistance for long-lasting performance in commercial environments.
  • Complete Installation Package: Includes fasteners for wood applications, providing everything needed for immediate installation.
  • ANSI/BHMA Compliance: Meets ANSI/BHMA A156.16, L13061 standards for commercial handrail bracket applications.
  • Commercial-Grade Strength: Solid construction design provides increased strength for demanding commercial and institutional applications.
  • Professional Finish Options: Available in multiple finishes to complement various architectural designs and interior specifications.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA 156.16, L13061
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Other / Miscellaneous Hardware
  • Product Dimension: H: 2-15/16", W: 1-1/2"
  • Product Group: Other / Miscellaneous Hardware
  • Product Model: 59B
  • Product Subgroup: Handrail Brackets
  • Product Substrate: Brass
  • Product Type: Brackets and Hooks
  • Subcategory: Miscellaneous Hardware

Installation & Operation

  1. Review manufacturer specifications and verify wall construction is suitable for handrail bracket mounting. Confirm structural adequacy for expected load requirements.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on wall surface at proper height and spacing.
  3. Prepare wall by drilling required holes per manufacturer specifications using appropriate drill bits for wall material type.
  4. Install bracket using provided fasteners for wood applications or appropriate fasteners for other wall materials per manufacturer torque specifications.
  5. Mount handrail to bracket ensuring proper alignment and secure attachment throughout the full length of installation.
  6. Test bracket and handrail assembly to verify proper support and stability. Refer to manufacturer documentation for complete installation details and load specifications.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Choose Ives Quality?

Ives handrail brackets deliver professional-grade reliability with solid brass construction designed for increased strength in demanding commercial applications. Meeting ANSI/BHMA A156.16 standards ensures compliance with industry requirements for commercial handrail installations. Engineered for commercial environments where dependable performance and code compliance are essential.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Subcategory:
Miscellaneous Hardware
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Handrail Brackets
Product Type:
Brackets and Hooks
ANSI/BHMA:
ANSI/BHMA 156.16, L13061
Commercial/Residential:
Commercial
Product Model:
59B
Product Dimension:
H: 2-15/16", W: 1-1/2"
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Brass
Department:
Door Hardware

Ives IVE-59-B3 – Frequently Asked Questions

1) Does the Ives 59B handrail bracket come with mounting fasteners, or do I need to supply my own anchors?
The 59B ships with fasteners for wood, so if you are hitting a stud or a wood blocking backer you have what you need in the box. Drywall with no blocking, CMU, concrete, or steel stud is a different story: those need anchors rated for the wall material, and you buy those separately. On commercial stair and corridor work, most installers set blocking or hit structure behind the finish anyway, since the bracket is only as strong as what it is fastened to.
2) Is the Ives 59B brass handrail bracket certified to a hardware standard for commercial buildings?
Yes. The 59B is built to ANSI/BHMA A156.16 and carries the product designation L13061, which is the auxiliary hardware standard architects cite on handrail bracket schedules. It is a commercial-rated bracket, not a residential-only part, which is why it turns up on school, healthcare, and government stair and corridor specs. If your spec section calls out A156.16 for handrail brackets, the 59B answers it directly.
3) I need handrail brackets to match the satin chrome hardware already in my building. Does the Ives 59B come in a matching finish?
Six finishes are made in the 59B, and satin chrome is one of them. The full run is 605 bright brass, 609 blackened brass, 619 satin nickel, 625 bright chrome, 626 satin chrome, and 643E aged bronze. Those are BHMA finish codes, so if your existing levers, closers, or hinges are tagged 626, the 626 bracket will read as the same finish family without you having to eyeball it. For a building running darker hardware, 609 and 643E are the two dark options.
4) What is the difference between Ives 59B15, 59B26, 59-B26D and 59-B3? Are they different brackets?
Same bracket, different finish. The 59B body is constant and the suffix carries the finish: 59B15 is 619 satin nickel, 59B26 is 625 bright chrome, 59-B26D is 626 satin chrome, 59-B3 is 605 bright brass, 59-B5 is 609 blackened brass, and 59B716 is 643E aged bronze. Order by the full part number, because 59B26 and 59-B26D are one letter apart and land on bright versus satin chrome.
5) Does the Ives 59B include the handrail, or is it the bracket only?
Bracket and wood fasteners only. The rail itself, whether wood, pipe, or a formed metal rail, is a separate purchase, and so is any anchor you need for a non-wood wall. Order the brackets by count for your run and the rail on its own line.
6) Is the Ives 59B solid brass or brass plated?
Brass is the substrate on the 59B, not a plating over pot metal, and the finish sits on top of that. For a buyer, the practical difference is what happens years in: a plated zinc bracket that gets chipped in a stairwell starts corroding at the chip, where a solid brass body does not. That is also why it holds up in humid interiors, natatorium corridors, and coastal buildings where hardware gets wiped down constantly.
