Ives 66B Brass Casement Fasten...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$56.80
$48.23
IVE_66_625_SR1_square

Ives 66B Brass Casement Fastener with Multiple Strike Options

(No reviews yet) Write a Review

Model: IVE-66-B26-RS-MS-SS
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$56.80
$48.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

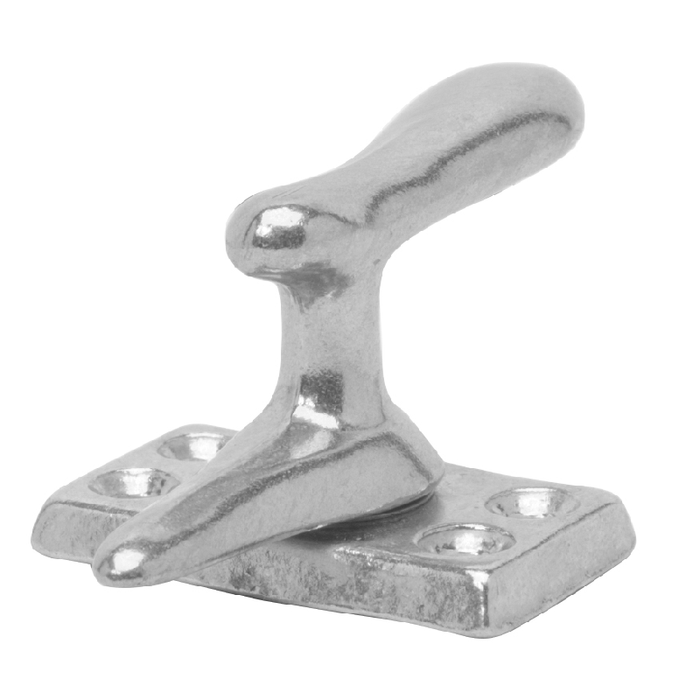

Ives 66B Brass Casement Fastener with Multiple Strike Options

Professional Window Hardware for Weather-Tight Security

The Ives 66B Brass Casement Fastener provides reliable weather-tight fastening and security for windows, louvered doors, and small doors. Constructed with solid brass substrate and measuring H: 2-1/16", W: 1-1/16", L: 1-7/8", this fastener meets ANSI/BHMA A156.16 standards for commercial applications. Each unit is packaged with three strike options and wood application fasteners for versatile installation.

Professional Features & Benefits

  • Compact Dimensions: H: 2-1/16", W: 1-1/16", L: 1-7/8" for precise fit on windows and small doors.
  • Solid Brass Construction: Durable brass substrate provides long-lasting performance and corrosion resistance for window applications.
  • Multiple Strike Options: Packaged with Surface Strike (SS), Rim Strike (RS), and Mortise Strike (MS) for flexible installation configurations.
  • Weather-Tight Performance: Designed to provide secure fastening that prevents air and moisture infiltration around windows.
  • Versatile Applications: Ideal for windows, louvered doors, and small doors requiring secure fastening solutions.
  • ANSI/BHMA Compliance: Meets ANSI/BHMA A156.16 standards for commercial-grade window hardware performance.
  • Complete Installation Package: Includes fasteners for wood applications, providing everything needed for installation.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA 156.16
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Window Hardware
  • Product Dimension: H: 2-1/16", W: 1-1/16", L: 1-7/8"
  • Product Group: Window Hardware
  • Product Model: 66B
  • Product Subgroup: Casement Fasteners
  • Product Substrate: Brass
  • Product Type: Casement Fasteners
  • Subcategory: Miscellaneous Hardware

Installation & Operation

  1. Review manufacturer specifications and verify window or door preparation requirements including material compatibility and mounting surface conditions.
  2. Select appropriate strike option (Surface Strike, Rim Strike, or Mortise Strike) based on window frame configuration and security requirements.
  3. Use manufacturer-provided templates to mark mounting hole locations accurately on window frame and sash surfaces.
  4. Prepare window frame and sash by drilling required holes per manufacturer specifications using provided wood fasteners.
  5. Install fastener body and selected strike using appropriate mounting hardware and secure per manufacturer torque specifications.
  6. Test fastener operation to verify proper alignment, secure latching, and weather-tight seal. Make final adjustments as needed and refer to manufacturer documentation for complete installation details.

Professional Applications

  • Commercial Office Building Windows
  • Educational Facility Window Security
  • Healthcare Institution Window Hardware
  • Retail Establishment Window Systems
  • Industrial Building Window Fastening
  • Multi-Tenant Residential Window Security
  • Government Building Window Hardware

Why Choose Ives Quality?

Ives window hardware delivers professional-grade reliability with solid brass construction that meets ANSI/BHMA A156.16 commercial standards. The comprehensive strike package and included wood fasteners provide complete installation flexibility for demanding commercial applications. Engineered for weather-tight performance where dependable window security and environmental protection are essential.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Product Group:
Window Hardware
Subcategory:
Miscellaneous Hardware
Product Subgroup:
Casement Fasteners
Product Type:
Casement Fasteners
ANSI/BHMA:
ANSI/BHMA 156.16
Commercial/Residential:
Commercial
Product Model:
66B
Product Dimension:
H: 2-1/16", W: 1-1/16", L: 1-7/8"
Product Category:
Window Hardware
Product Substrate:
Brass
Department:
Door Hardware

Ives IVE-66-B26-RS-MS-SS – Frequently Asked Questions

1) Will the Ives 66 casement fastener work on my window frame, or do I need a separate strike?
Every Ives 66B comes packaged with all three strikes, so you pick the one your frame takes at install: Surface Strike (SS) for mounting flat on the frame face, Rim Strike (RS) where the sash closes against a rim, and Mortise Strike (MS) where you can cut the frame for a flush strike. No separate strike order is needed. Wood application fasteners are in the box too, so on a wood sash and frame you have the complete package.
2) Is the Ives 66 casement fastener rated for commercial buildings, and what standard does it meet?
Commercial grade, and it is built to ANSI/BHMA 156.16, the standard covering auxiliary hardware. That is the line item a spec writer or an institutional buyer needs on a school, healthcare, or government window package. The body is solid brass rather than a plated pot metal casting, which is what keeps it serviceable on operable windows that get cycled daily.
3) What finishes does the Ives 66 casement fastener come in, and can I match the rest of my window hardware?

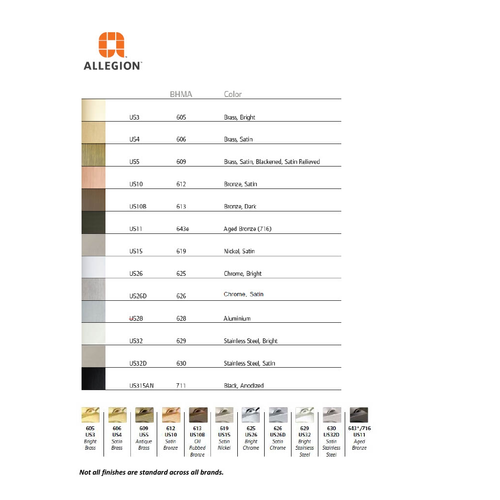

Six finishes: 605 bright brass, 609 blackened brass, 619 satin nickel, 625 bright chrome, 626 satin chrome, and 643E aged bronze. Those are standard BHMA finish numbers, so if the other hardware in the building is specified as 626 or 605 you can match on the number rather than by eye. For a fleet of windows across a property, order every opening on the same finish code and the fasteners will match regardless of when you buy them.
4) Can I use a casement fastener like the Ives 66 on a louvered door or a small door, or is it windows only?
Windows, louvered doors, and small doors are all in scope for the 66B. Understand what it is, though: a casement fastener pulls a sash or leaf tight against its frame and holds it there. It is not a lock and it is not a latch you can key. If the opening needs to be secured against entry or needs to be keyed to a building system, you want a lock, not a fastener. Where you want a light door or louver held closed and weather tight, this is the right part.
5) What is the actual part number to order for a satin chrome Ives casement fastener?
Ives model 66B, and the finish is carried in the part number. Satin chrome (626) is 66-B26D-RS-MS-SS, bright chrome (625) is 66-B26-RS-MS-SS, satin nickel (619) is 66-B15-RS-MS-SS, blackened brass (609) is 66-B5-RS-MS-SS, aged bronze (643E) is 66B-643E/716-RS-MS-SS, and bright brass (605) is 66B3. The RS-MS-SS suffix on those numbers is the three strikes shipping in the package, not something you add.
6) Do I need to buy screws for an Ives 66 casement fastener, or are they included?
Wood application fasteners ship with the 66B, so on a wood sash and wood frame everything needed to mount the body and the chosen strike is in the package. If you are mounting into aluminum, steel, or a hollow composite sash, plan on sourcing the appropriate machine screws or anchors for that substrate, because the supplied fasteners are for wood.
7) Will a brass casement fastener corrode on exterior windows?
Solid brass is the substrate on the 66, and brass does not rust the way a plated steel fastener does, which is why it holds up on operable exterior sash exposed to weather. The plated finishes (chrome, nickel, aged bronze) sit over that brass body, so a scratch through the plating exposes brass rather than bare steel.
