Ives 71 Brass Casement Adjuster with Multi-Position Hold Feature

Ives 71 Brass Casement Adjuster with Multi-Position Hold Feature

(No reviews yet) Write a Review

Model: 71B3-10
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$110.90
$52.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives Brass Casement Adjuster with Multi-Position Hold Feature

Professional Window Hardware Solution

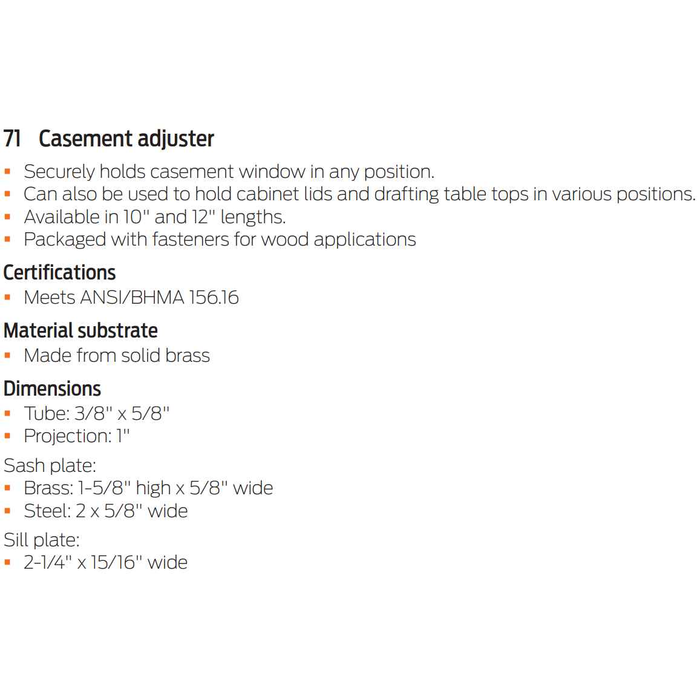

The Ives Brass Casement Adjuster provides secure positioning control for casement windows in any desired position. This versatile hardware solution features brass construction with dimensions of 3/8" x 5/8" x 1" and is available in 10" and 12" lengths. Meeting ANSI/BHMA A156.16 standards, this commercial-grade adjuster can also be used for cabinet lids and drafting table tops requiring variable positioning control.

Professional Features & Benefits

  • Multi-Position Hold Capability: Securely holds casement windows in any position for precise ventilation control and operational flexibility.
  • Versatile Application Design: Can also be used to hold cabinet lids and drafting table tops in various positions for expanded functionality.
  • Durable Brass Construction: Brass substrate provides corrosion resistance and long-lasting performance in commercial applications.
  • Compact Dimensions: 3/8" x 5/8" x 1" profile allows installation in space-constrained applications while maintaining strength.
  • Multiple Length Options: Available in 10" and 12" lengths to accommodate different window sizes and installation requirements.
  • Complete Installation Package: Packaged with fasteners for wood applications for convenient installation.
  • ANSI/BHMA Compliance: Meets ANSI/BHMA A156.16 standards for quality assurance and code compliance.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA 156.16
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Window Hardware
  • Product Dimension: 3/8" x 5/8" x 1"
  • Product Group: Window Hardware
  • Product Model: 71
  • Product Subgroup: Casement Fasteners
  • Product Substrate: Brass
  • Product Type: Casement Adjusters
  • Subcategory: Miscellaneous Hardware

Installation & Operation

  1. Review manufacturer specifications and verify window construction is suitable for adjuster mounting. Confirm material compatibility and structural adequacy.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on window frame and sash surfaces.
  3. Prepare window frame and sash by drilling required holes per manufacturer specifications using provided fasteners for wood applications.
  4. Install all mounting hardware and secure the adjuster to window frame and sash per manufacturer torque specifications.
  5. Adjust operational components for proper alignment and smooth operation throughout the full range of window movement.
  6. Test adjuster operation to verify proper function and secure hold capability at various positions. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Specialty Applications for Cabinet and Drafting Table Hardware

Why Choose Ives Quality?

Ives window hardware delivers professional-grade reliability with brass construction meeting ANSI/BHMA A156.16 standards for demanding commercial applications. The complete installation package with wood fasteners and multiple length options ensures proper fit and dependable performance. Engineered for commercial applications where precise window positioning and long-term durability are essential.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Product Group:
Window Hardware
Subcategory:
Miscellaneous Hardware
Product Subgroup:
Casement Fasteners
Product Type:
Casement Adjusters
ANSI/BHMA:
ANSI/BHMA 156.16
Commercial/Residential:
Commercial
Product Model:
71
Product Dimension:
3/8" x 5/8" x 1"
Product Category:
Window Hardware
Product Substrate:
Brass
Department:
Door Hardware

Ives 71B3-10 – Frequently Asked Questions

1) What length Ives 71 casement adjuster do I need for my window?
The Ives 71 casement adjuster comes in 10 inch and 12 inch arm lengths. Pick the length off how far the sash swings open: the longer 12 inch arm gives you more opening travel, the 10 inch keeps the throw shorter on smaller sashes. Both lengths come in either 605 bright brass or 625 bright chrome, so finish doesn't limit your length choice.
2) Will an Ives 71 adjuster hold a casement window part way open, or only fully open?
It holds anywhere in the swing, not just at the stops. That's the point of the 71: you set the sash where you want it for ventilation and the adjuster holds that position. Same reason it gets used on cabinet lids and drafting table tops where you need a position other than open or closed.
3) Does the Ives 71 casement adjuster meet ANSI/BHMA for a commercial spec?
It's built to ANSI/BHMA A156.16, the standard for auxiliary hardware, and Ives rates the 71 for commercial use rather than residential only. That's the line item to put on a submittal for a school, hospital, or municipal building where window hardware has to be called out to a standard.
4) How much clearance do I need between the sash and the jamb for an Ives 71 adjuster?
The body measures 3/8 x 5/8 x 1 inches, so it takes very little room at the mounting points. If you have a shallow reveal or a deep stop crowding the sash, measure against that 3/8 inch dimension before you commit. Beyond the body, allow for the swing of the 10 or 12 inch arm across the sash face.
5) Does the Ives 71 casement adjuster come with screws, or do I have to buy fasteners separately?
Fasteners for wood are in the package. If you're mounting to a wood sash and wood frame, everything you need to fix the adjuster is there. Metal or clad frames are a different story, you'd be sourcing your own fixings for that substrate.
6) Is the Ives 71 casement adjuster brass all the way through or just brass plated?
Brass is the substrate, not a coating over steel, which is why it holds up in humid and coastal openings where a plated steel arm pits. The two finishes on top of it are 605 bright brass and 625 bright chrome.
7) I'm standardizing window hardware across a building. Can I use the same Ives 71 on every casement?
Two variables to lock down and you can run it fleet wide: length (10 or 12 inch) and finish (605 bright brass or 625 bright chrome). Windows with different sash sizes may need both lengths, but you can hold one finish across all of them so the openings match. Brass construction and the A156.16 rating make it the same spec line on every unit.
8) Can I use a casement adjuster instead of a casement operator crank?
They do different jobs. The Ives 71 is a hold-open adjuster: you push the sash open by hand and the adjuster keeps it there at whatever position you set. A crank operator drives the sash open and closed through a gear and worm. If the window has no operator and you just need it to stay put at a chosen opening, the 71 is the part. If you need to work the sash from inside without reaching across it, an adjuster won't do that for you.
9) What's the actual Ives part number for a 10 inch bright brass casement adjuster?
Ordering codes on the 71 run model number, finish, then length. Bright brass (605) is 71B3-10 in the 10 inch and 71B3-12 in the 12 inch. Bright chrome (625) is 71B26-10 and 71B26-12. Ives model designation is simply 71.
