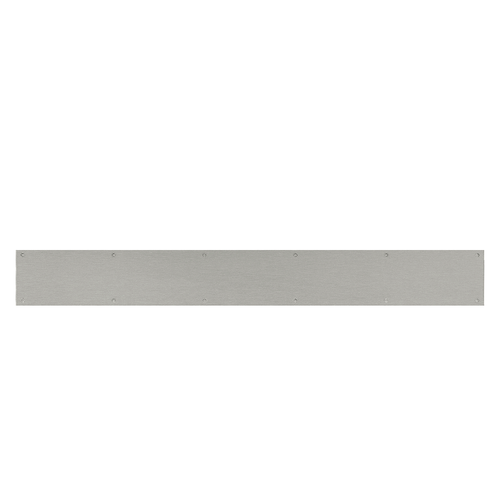

Ives 8400 Series Door Kick Plate with Four Beveled Edges - 4" Height

Professional Door Protection Solution

The Ives 8400 Series kick plate provides superior door protection with a 4" height design featuring four beveled edges and countersunk mounting holes. This commercial-grade protection plate meets ANSI/BHMA A156.6 for J301 standards and is available in aluminum, brass, and stainless steel substrates with various finish options to match existing door hardware. All stainless steel plates come standard in 300 series construction for enhanced durability.

Professional Features & Benefits

  • Standard Height Configuration: 4" height provides optimal lower door protection while maintaining aesthetic proportions for commercial applications.
  • Premium Edge Treatment: Four beveled edges come standard on all plates for professional appearance and reduced edge wear.
  • Professional Mounting System: Countersunk mounting holes with standard #6 x 5/8" oval head screws (16 per pack) ensure secure installation and flush surface finish.
  • Multi-Substrate Construction: Available in aluminum, brass, and stainless steel substrates with 300 series stainless steel standard for superior corrosion resistance.
  • ANSI/BHMA Compliance: Meets ANSI/BHMA A156.6 for J301 standards ensuring Grade 1 performance for commercial applications.
  • UL Fire Rating: UL protection plates certified to UL10C for fire-rated door applications where required.
  • Flexible Sizing Options: Protection plates available in 1/2" increments with custom sizing available through customer service consultation.
  • Enhanced Mounting Options: Multiple mounting configurations available including standard holes, adhesive backing, self-drilling screws, and security screws that exceed industry standards.

Technical Specifications

  • ANSI/BHMA: Meets ANSI/BHMA A156.6 for J301
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Height: 4"
  • Product Model: 8400
  • Product Subgroup: Door Armor and Protection Plates
  • Product Type: Door Protection and Kick Plates
  • Series: 8400
  • Subcategory: Kick Plates
  • Tags: 4 kick plate, 4 inch kick plate, ives kickplates, brass kick plate, brass kickplates, white kick plates

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and material compatibility for the selected substrate.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface, ensuring proper alignment and spacing.
  3. Prepare door by drilling required holes per manufacturer specifications for countersunk mounting hardware.
  4. Install mounting hardware using provided #6 x 5/8" oval head screws and secure the kick plate to door per manufacturer torque specifications.
  5. For brass plates on metal doors, apply gasket tape kit around perimeter to reduce tarnishing from electrolytic oxidation as recommended.
  6. Verify flush mounting and proper alignment. Refer to manufacturer documentation for complete installation details and optional mounting configurations.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Ives Quality?

Ives 8400 Series kick plates deliver professional-grade door protection with Grade 1 ANSI/BHMA A156.6 compliance and UL10C fire rating certification. Available in multiple substrate options including 300 series stainless steel construction with mounting hardware that exceeds industry standards. Engineered for demanding commercial applications where long-lasting door protection and aesthetic appeal are essential.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Series:
8400
Product Group:
Door Trim and Accessories
Subcategory:
Kick Plates
Product Subgroup:
Door Armor and Protection Plates
Product Type:
Door Protection and Kick Plates
ANSI/BHMA:
Meets ANSI/BHMA A156.6 for J301
Commercial/Residential:
Commercial
Tags:
4 kick plate, 4 inch kick plate, ives kickplates, brass kick plate, brass kickplates, white kick plates
Product Model:
8400
Product Height:
4"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Ives 840032D434 – Frequently Asked Questions

1) What is the cross-brand equivalent to the Ives 8400 kick plate in satin stainless steel?
The closest peer is the Hager 190S, a 190 Series door protection plate supplied in satin stainless steel with four beveled edges. The Ives 8400 in 630 satin stainless steel is a 4 inch high plate offered in 24, 30, 32, 34 and 35 inch lengths, with four beveled edges standard and countersunk mounting holes, and it meets ANSI/BHMA A156.6 for J301. Both are surface-applied plates that protect the lower face of the door, so the substitution comes down to matching height, length and finish to the opening you are covering.
2) Do Ives 8400 kick plates come with mounting screws, or do I supply my own?
Screws are included: #6 x 5/8 inch oval head, 16 per pack. The holes in the plate are countersunk, so the heads finish flush with the face and nothing sits proud for a cart or a mop bucket to catch. Ives provides a template for marking hole locations, and the door gets drilled per that template before the plate goes on.
3) Will a brass kick plate tarnish if I put it on a hollow metal door?
It can, and Ives calls for a gasket tape kit around the perimeter of the plate when a brass plate goes on a metal door. The tape breaks the contact between the two dissimilar metals and cuts the electrolytic oxidation that tarnishes the brass. This applies to the 605 bright brass and 606 satin brass 8400 plates. On a metal door where nobody wants to maintain brass, 630 satin stainless in 300 series avoids the issue entirely.
4) Is the 4 inch high plate enough protection, or should I go taller for cart traffic?
Four inches covers the shoe-and-toe damage you get on an office or tenant corridor door and keeps the proportions tidy. Where the abuse comes from carts, gurneys, hand trucks or bed frames, the strike zone sits well above 4 inches and you want a taller plate. The 8400 is made in 1/2 inch increments, so you can step the height up rather than settling for the standard 4 inch. Height is the decision to make first; width follows from the door leaf.
5) The spec calls for ANSI/BHMA A156.6 J301 protection plates. Does the Ives 8400 meet it?
Yes. The 8400 meets ANSI/BHMA A156.6 for J301, which is the architectural door trim standard's type designation for kick plates. That is the line an institutional or government spec usually cites, and it is the one to put on the submittal. It is a commercial-duty plate, not a residential item.
6) Can I install a kick plate without drilling into the door face?
The 8400 is offered with more than one mounting method. Besides the standard countersunk holes with oval head screws, you can get adhesive backing, self-drilling screws, or security screws. Adhesive is the option when you don't want to put fasteners through a door face; self-drilling screws save the pilot step on hollow metal; security screws are the choice for lobbies, schools and anywhere the plate is a target. Specify the mounting when you order, because the standard plate ships prepped with countersunk holes.
7) The other doors in the building already have Hager 190S kick plates. Will an Ives 8400 match them?
The Hager 190S is a satin stainless steel protection plate with four beveled edges, and the Ives 8400 is offered in 630 satin stainless steel, also with four beveled edges standard on every plate, so a stainless-to-stainless swap keeps the same finish family and the same beveled profile on all four sides. Before ordering, measure the plate already on the door: the Ives 8400 covered here is 4 inches high, in 24, 30, 32, 34 and 35 inch lengths, so the length needs to match the door width you are working with rather than the plate on the neighboring door if the doors differ.
8) I need a 4 inch kick plate in brass or oil-rubbed bronze rather than stainless. Which one covers that?
The Ives 8400 is the one to specify for those openings. It is offered in 605 bright brass, 606 satin brass, 613 satin bronze oil-rubbed and 630 satin stainless steel, all 4 inches high, with lengths of 24, 30, 32, 34 and 35 inches depending on finish. The Hager 190S is a 190 Series door protection plate supplied in satin stainless steel, which suits an opening where a stainless plate is wanted. One install note for the brass plates: on a metal door, a gasket tape kit around the perimeter is recommended to reduce tarnishing from electrolytic oxidation.
9) How is the Ives 8400 different from the Hager 190S kick plate?
Both are commercial door protection plates with four beveled edges. The Hager 190S is a 190 Series protection plate we carry in 630 satin stainless. The Ives 8400 at 4 inch height gives you four finishes to pick from (605, 606, 613, 630) across five widths, and it carries the ANSI/BHMA A156.6 J301 reference plus UL10C certified plates for fire rated openings. If the building is already standardized on one brand's trim, match it; if you need a bronze or brass face rather than stainless, the 8400 is the one that offers it.
10) Why does an Ives 8400 kick plate have beveled edges on all four sides instead of two?
All four edges come beveled as standard on the 8400. Two-edge plates leave the top and bottom square, which is where a mop head, a cart wheel or a shoe catches and starts peeling the plate off the door. Four bevels also make the plate look finished from any angle, which matters when it sits on the pull side of a corridor door at eye level in a lobby or a patient room.
11) My doors are an odd width and none of the stock kick plate sizes fit. What are my options?
The 8400 is produced in 1/2 inch increments, and custom sizing beyond the stock run is available through customer service. Give them the door leaf width and whether it is a single or a pair, and they'll size the plate off that. For a stainless run, 300 series is standard on every 8400 stainless plate regardless of the size you order.
12) Which kick plate holds up in a kitchen, a wash-down area, or a coastal building?
Go stainless. Every 8400 stainless plate is 300 series, which is the corrosion-resistant grade, and 630 satin stainless is the finish to order (for example the 4 x 34 in 630). Brass and bronze faces will react in a wet or salt-air environment and need upkeep; 300 series stainless does not. It is also the easier surface to clean and disinfect, which is why it is the default on healthcare and food service openings.
