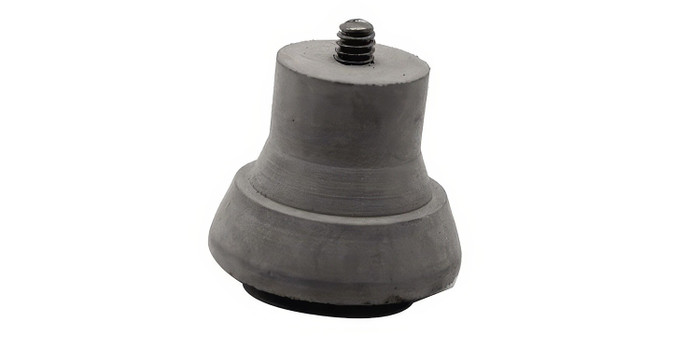

Ives FSPART1063 Rubber Stop for FS1154 Black Finish

The FSPART1063 is the replacement rubber shoe (the tip) for a plunger type floor door holder, not the whole holder. When the rubber on the bottom of the plunger wears smooth and stops gripping, you buy this part rather than pulling and rebuilding the holder. The rubber is non-marring, so it grips the floor without leaving marks on tile or finished concrete.

It fits all three. The FSPART1063 is designed for the Ives FS1154 plunger door holder and also fits the FS544 and FS555, which were formerly sold as the Glynn-Johnson 1154 series. If you have older Glynn-Johnson stock in the building, this is the same rubber.

Two diameters matter. The insert (the stem that pushes up into the plunger housing) is 5/8 inch, and the base that contacts the floor is 1 inch. Measure the bore in the bottom of your existing plunger: if it takes a 5/8 inch stem, this seats. That is the dimension that decides fit, not the base.

The Ives FSPART1063 is the replacement rubber package for the FS1154 plunger type door holder, in a black non-marring rubber with a 5/8 inch insert diameter and a 1 inch base diameter. The same part also fits the FS544 and FS555 plunger models, which were formerly sold as the Glynn-Johnson 1154 series, so a building with a mix of old Glynn-Johnson and current Ives plungers can standardize on one shoe. Nothing in the Delaney, Deltana, Emtek or Orca floor stop range is a tip kit for that plunger body - the Orca 22HD Series goose neck floor stop with black tip and the Orca 23LP Series dome floor stop with gray tip are complete stops sold as units, not loose rubber inserts.

A worn shoe is a rubber part and the FSPART1063 addresses that alone; a damaged plunger body needs a whole stop. For a door that still has to be held open, the SOSS MDH magnetic door holder and stop measures 3-5/16 inches by 1-3/4 inches and is rated heavy duty, holding the door magnetically rather than on a plunger foot. The Orca 22HD Series goose neck floor stop carries a Product Function of Door Holder as well. If the opening only needs the swing arrested, the Orca 23LP Series dome floor stop is a Door Stop by function and mounts low rise to the floor.

No - those are different classes of part. The FSPART1063 is a rubber insert with a 5/8 inch insert diameter and 1 inch base that seats into an existing plunger holder. The Deltana UFB4505 is a round universal floor door bumper at 1-1/2 inches in solid brass, the Deltana UFBS138 is a square universal floor door bumper at 1-3/8 inches, and the Emtek 2254 floor door bumper is 1-3/8 inches by 1-1/4 inches - each is a complete bumper that fastens to the floor on its own, not a shoe that fits inside a plunger tube. If the FS1154, FS544 or FS555 plunger body is sound, the FSPART1063 is what restores it.

Commercial and heavy duty. Ives rates the FSPART1063 for commercial door hardware use at a heavy duty level, which is why it turns up on corridor and stairwell holders in schools and multi-family buildings where the door gets kicked open all day. Ordering these by the handful for a maintenance shelf is normal practice.

If the plunger housing and the mounting are sound, replace the rubber. The FSPART1063 is a maintenance part for exactly that job, and swapping the shoe restores grip without touching the floor anchor or the door. Buy a complete unit only when the housing itself is damaged or the anchor has pulled out of the slab. In that case, a one-piece holder like the Orca Hardware 22HD Series goose neck floor stop with black tip covers the door holder function outright.

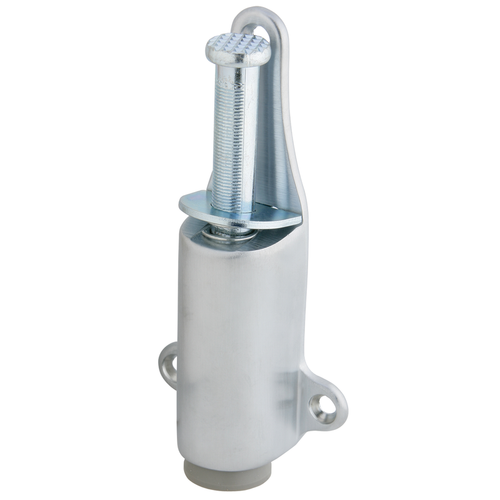

A holder part. The FS1154, FS544 and FS555 it fits are plunger type holders, meaning you step the plunger down to hold the door open against traffic or wind, then release it. That is a different job from a bumper that only limits swing. For pure swing protection, a wall or floor bumper such as the Emtek 2254 floor door bumper or the Deltana UFB4505 round universal floor bumper is the type to look at, and neither takes this rubber.

FSPART1063, also written FSPART.1063 in some Ives literature. Both refer to the same black rubber package for the FS1154 plunger holder. If a counter asks for the Glynn-Johnson equivalent, it is the same rubber used on the 1154 series.

No. The FSPART1063 has a 5/8 inch insert stem sized to the Ives plunger bore. Tips off other stop styles, like the Delaney dome stop or the Emtek 2253 goose style stop, are built for those bodies and are not interchangeable with the FS1154, FS544 or FS555 plunger. Order the FSPART1063 for the plunger holders.

The FSPART1063 is a black non-marring rubber shoe, so it keeps the plunger stop looking as installed. Where the appearance of the floor stop itself matters, the Deltana UFBD3505 is a 3-1/2 inch round universal floor bumper described as decorative in solid brass, and the Deltana UFBP4505 is a 1-5/8 inch round universal floor door bumper with a pattern cap in solid brass. The Emtek 2251 half dome door stop and the Emtek 2257 cylindrical floor bumper at 1-1/2 inches are other floor-mounted shapes. Those replace the stop entirely, where the FSPART1063 renews a plunger holder you already own.

They are different stops. The FSPART1063 is the rubber package for the FS1154 plunger type door holder, a foot that is pressed down to hold the door. A goose neck stop is a curved arm rising from the floor to catch the door face - the Delaney gooseneck floor door stop, the Emtek 2253 goose style door stop, and the Orca 22HD Series goose neck floor stop with black tip are that shape, and the Orca unit lists a door thickness range of 1-3/8 inch or 1-3/4 inch. A goose neck stop does not take the FSPART1063 shoe.

Black, and it is only offered in black. On a plunger holder the rubber sits at floor level under the housing, so the finish of the holder itself (the visible part) is unaffected by this swap. If you are matching a run of holders across a floor, the tips will all read the same once replaced.
