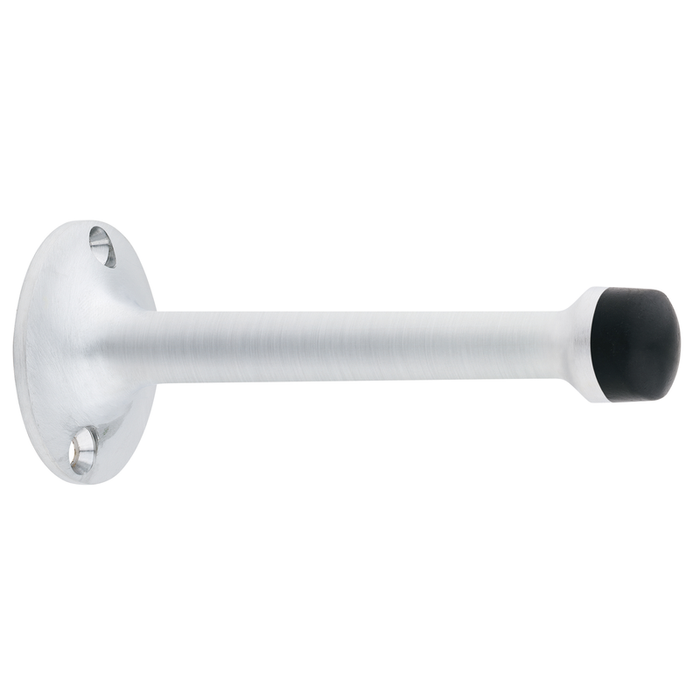

Ives WS65 cast aluminum wall stop with replaceable rubber bumper, 673 Aluminum Clear Coat finish, side view

Ives WS65 Cast Aluminum Wall Stop with Replaceable Rubber Bumper

(No reviews yet) Write a Review

Model: WS65S3AL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.90
$3.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives WS65 Cast Aluminum Wall Stop with Replaceable Rubber Bumper

The Ives WS65 is a cast aluminum wall stop with a replaceable non-marring white rubber bumper that prevents door, wall, and frame damage. Dimensions are 1-5/8" diameter and 3-3/4" length. Packed with fasteners for wood applications. Meets ANSI/BHMA 156.16.

Features

  • Replaceable Rubber Bumper: Non-marring white rubber bumper protects wall, molding, and door finishes; replaces without removing the base.
  • Cast Aluminum Body: Commercial-grade construction for high-traffic applications.
  • Compact Profile: 1-5/8" diameter and 3-3/4" length fits standard wall clearances.
  • Fasteners Included: Packed with fasteners for wood applications.
  • ANSI/BHMA 156.16 Compliant: Meets the standard for door stops and holders.

Specifications

  • Model: WS65
  • Material: Cast Aluminum
  • Diameter: 1-5/8"
  • Length: 3-3/4"
  • Application: Commercial
  • Standard: ANSI/BHMA 156.16
  • Type: Wall Stop

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Subcategory:
Stops
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Wall
Commercial/Residential:
Commercial
Product Model:
WS65
Product Dimension:
DI: 1-5/8", L: 3-3/4"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Ives WS65S3AL – Frequently Asked Questions

1) How far off the wall does the Ives WS65 hold the door, and will it clear a lever handle?
The WS65 is 3-3/4 inches long and 1-5/8 inches in diameter, and that length is what sets how far short of the wall the door stops. Before you commit, measure from the finished wall face to whatever sticks out furthest on the door at the point the stop will strike, usually the lever or a pull, and compare it against 3-3/4 inches. It is a single fixed length, so there is no adjustment once it is on the wall. If you need more or less standoff than that, ABH's RM Series and RMS Series wall door stops are offered in multiple length options.
2) What fasteners come with the Ives WS65, and can I mount it straight to drywall?
The WS65 comes packed with fasteners for wood applications, so as supplied it is a stud or solid-blocking installation. Into hollow gypsum board, plaster, block, or masonry you supply your own anchors. This matters more on a wall stop than on most trim: wood screws driven into bare drywall pull out the first time a door swings hard into the stop, and then you are patching wall instead of stopping a door. Locate the stud or add blocking where the door lands before you drill.
3) My door swings past the end of a wall, is a wall stop like the WS65 still the right choice?
No. A wall stop only works where there is solid wall backing exactly where the door lands, at the height the stop is set. If the door opens past the end of a wall, into a corner, or into open floor with nothing behind it, you want a floor stop or an overhead stop instead, and the WS65 will be a return. ZenSupply carries other stop styles for those openings, including Delaney's 3 inch heavy duty rigid door stop and 3 inch spring door stop.
4) What is the closest cross-brand equivalent to the Ives WS65 wall stop?
Two other wall-mounted bumpers do the same job of catching the door at the wall. The Delaney 2-1/4 inch concave wall bumper (40270x) is a concave-face wall bumper, and the Emtek 2255 is a brass wall bumper supplied with a regular rosette. The Ives WS65 itself is a cast aluminum wall stop measuring 1-5/8 inch in diameter with a 3-3/4 inch overall length, using a replaceable non-marring white rubber bumper and packed with fasteners for wood applications. Cross-reference on projection first: the WS65 stands the door off at 3-3/4 inch, while the Delaney bumper is a 2-1/4 inch unit, so the two hold the door at different distances from the wall.
5) The door swings into open floor with no wall behind it. What do I order instead of a wall bumper?
A wall bumper needs a wall to bear against, so on that opening look at a stop that is not wall-mounted. Delaney offers a 3 inch spring door stop (40210X) and a 3 inch heavy-duty rigid door stop (4021XX): the spring version flexes when the door contacts it, the rigid version does not give. The Ives WS65 is specifically a wall stop, 1-5/8 inch diameter by 3-3/4 inch long in cast aluminum, and belongs on openings where the door swings back to a solid wall surface.
6) What finishes does the Ives WS65 wall stop come in, and how do I match the hardware already in my building?
Four finishes, all on the same cast aluminum body: 666 Bright Brass (WS65S3AL), 668 Satin Bronze (WS6510AL), 673 Aluminum Clear Coat (WS6527), and 703 Satin Bronze Oil-Rubbed (WS6510B-AL). Order by the BHMA finish number and it lines up with the levers, hinges, and kick plates already specified on the openings. One thing worth knowing before you pick a dark finish: the rubber bumper is white, so it reads as a light dot against the 703 oil-rubbed bronze.
7) Can the rubber bumper on the Ives WS65 be replaced without taking the stop off the wall?
Yes, and that is the practical case for specifying it across a building. The white non-marring rubber bumper is a replaceable part, so when it tears or flattens on a heavily used opening you change the bumper and the cast aluminum body stays fastened where it is. No re-drilling, no re-finding the stud, no wall patching. On corridor and stairwell doors that see hundreds of cycles a day, that is the difference between a five minute maintenance call and a full reinstall.
8) Does the Ives WS65 meet ANSI/BHMA 156.16 for a commercial door hardware spec?
The WS65 meets ANSI/BHMA 156.16, which is the standard covering auxiliary hardware, the section stops and bumpers fall under in a hardware spec. It is built as a commercial product rather than a residential one, with a cast aluminum body. If your spec section calls out 156.16 compliance for door stops, the WS65 satisfies that line as written.
9) Is there a lower profile wall bumper than the Ives WS65 if I do not want a stop sticking out of the wall?
The WS65 is a projecting stop, 3-3/4 inches long and 1-5/8 inches in diameter, so it does stand off the wall. The disc-style alternative ZenSupply carries is the Delaney 2-1/4 inch concave wall bumper, which sits close to the wall rather than reaching out from it. The tradeoff is reach: a concave bumper only works where the door face already comes close to the wall, and it will not hold a lever or a pull off the drywall the way a projecting stop does. If the door hardware is what is hitting the wall, you want the projecting stop.
10) How is the Ives WS65 different from the Emtek 2255 brass wall bumper?
Different jobs. The Emtek 2255 is a brass wall bumper supplied with a regular rosette, so it is trimmed to sit inside a decorative hardware package. The WS65 is cast aluminum, 3-3/4 inches long by 1-5/8 inches in diameter, meets ANSI/BHMA 156.16, and carries a replaceable bumper for service life on high traffic openings. Where the stop has to visually match a designer suite, look at the Emtek. Where it has to survive an apartment corridor or a school and be maintained by swapping a bumper, the WS65 is the piece that fits the rest of the spec.
11) Is a Delaney 2-1/8 inch hole plate metal cover a substitute for a wall stop?
No. The Delaney 2310011 is a 2-1/8 inch hole plate metal cover, a plate that conceals a bored opening in a surface. It does not arrest a swinging door and carries no bumper. The part that stops the door is the wall stop itself, such as the Ives WS65, a cast aluminum wall stop with a replaceable non-marring rubber bumper that keeps the door off the wall and molding. The two are ordered for different reasons and a hole plate cover will not protect drywall from a lever or knob.
12) My specification calls for a brass wall bumper. Does the Ives WS65 satisfy that, or do I need a different part?
It depends on whether the specification means a brass body or a brass-toned finish. The Ives WS65 has a cast aluminum body and is supplied in 666 bright brass, 668 satin bronze, 703 satin bronze oil-rubbed, and 673 aluminum clear coat, so it can match brass trim visually. If the drawing calls out brass as the material, the Emtek 2255 is a brass wall bumper furnished with a regular rosette. Confirm which the architect intended before you commit the order, because the two read the same on a finish schedule and different on a material schedule.
13) Do I need to specify left hand or right hand when ordering the Ives WS65 wall stop?
No handing on it. The WS65 fastens to the wall, not to the door or the frame, so the same part serves a left hand or a right hand opening and you can stock one part number for a whole building. Finish is the only choice you make on the order.
14) How do I cross-reference an Ives WS65 to the ABH RM or RMS series when standardizing wall stops across a building?
Cross on projection, because that is what changes the fit at each opening. The Ives WS65 is fixed at 3-3/4 inch length and 1-5/8 inch diameter. The ABH RM Series and the ABH RMS Series are two separate wall door stop lines, each offered with multiple length options, so a cross means selecting the length in that series that matches the standoff the WS65 gives you. Where a building has a mix of flush walls and deep base trim, one Ives size will cover the flush walls while the multi-length ABH lines cover the openings that need more or less reach.
