Ives RL32A Brass Roller Latch with ASA Strike and Adjustable Projection

Ives RL32A Brass Roller Latch with ASA Strike and Adjustable Projection

(1 review) Write a Review

Model: IVE-RL32A-US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$167.70
$78.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives RL32A Brass Roller Latch with ASA Strike and Adjustable Projection

Professional Light-Duty Door Closure Solution

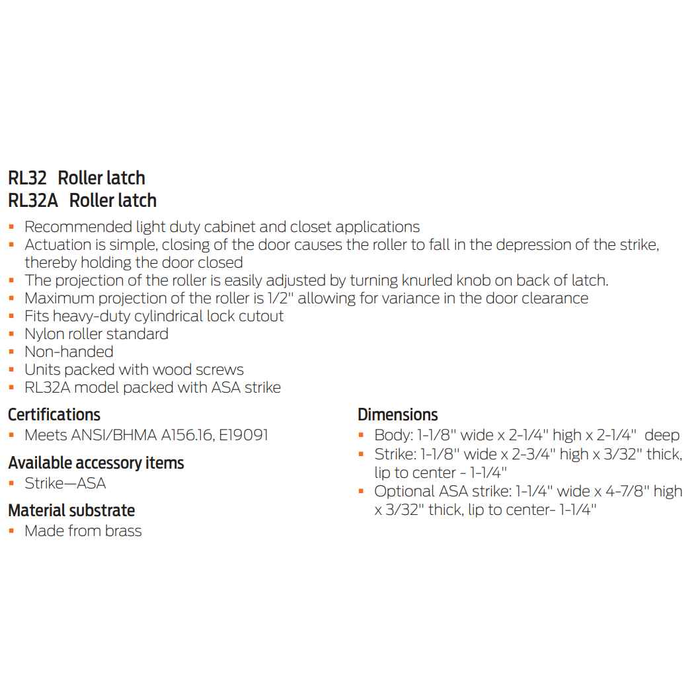

The Ives RL32A Brass Roller Latch provides reliable door closure for light-duty cabinet and closet applications. This non-handed roller latch features simple actuation where closing the door causes the nylon roller to fall into the strike depression, holding the door securely closed. The unit includes an ASA strike and offers maximum roller projection of 1/2" with easy adjustment via the knurled knob on the back of the latch.

Professional Features & Benefits

  • Adjustable Roller Projection: Maximum 1/2" projection with knurled knob adjustment allows for variance in door clearance and precise fit.
  • Heavy-Duty Compatibility: Fits heavy-duty cylindrical lock cutout for versatile installation options in existing door preparations.
  • Durable Brass Construction: Brass substrate provides corrosion resistance and long-lasting performance in commercial applications.
  • Complete Installation Package: RL32A model includes ASA strike and wood screws for immediate installation readiness.
  • Non-Handed Design: Universal configuration eliminates handing concerns and simplifies inventory management.
  • Standard Nylon Roller: Smooth operation with reduced wear on strike surface for extended service life.
  • ANSI/BHMA Compliance: Meets ANSI/BHMA A156.16 standards for quality assurance and professional applications.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.16, E19091
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Strike: 1-1/8" x 2-3/4" x 3/32"
  • Product Category: Door Trim and Accessories
  • Product Dimension: 1-1/8" x 2-1/4" x 2-1/4"
  • Product Group: Door Trim and Accessories
  • Product Model: RL32A
  • Product Subgroup: Door Latches and Catches
  • Product Substrate: Brass
  • Product Type: Roller Latches
  • Subcategory: Latches, Catches and Bolts

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and cylindrical lock cutout compatibility.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface for the 1-1/8" x 2-1/4" x 2-1/4" latch body.
  3. Prepare door by drilling required holes to accommodate the heavy-duty cylindrical lock cutout specifications.
  4. Install the roller latch using provided wood screws and secure the ASA strike (1-1/8" x 2-3/4" x 3/32") to the door frame.
  5. Adjust roller projection using the knurled knob on the back of the latch, with maximum projection of 1/2" to accommodate door clearance variations.
  6. Test door closure operation to verify the nylon roller properly engages the strike depression and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Cabinet Systems
  • Educational Facility Storage Areas
  • Healthcare Institution Closets
  • Retail Display Cabinets
  • Industrial Equipment Enclosures
  • Multi-Tenant Residential Storage
  • Government Building Interior Doors

Why Choose Ives Quality?

Ives roller latches deliver professional-grade reliability with brass construction and ANSI/BHMA A156.16 compliance for demanding commercial applications. The RL32A model combines adjustable roller projection up to 1/2" with heavy-duty cylindrical lock cutout compatibility for versatile installation options. Engineered for light-duty applications where dependable door closure is essential without security requirements.

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Product Group:
Door Trim and Accessories
Subcategory:
Latches, Catches and Bolts
ANSI/BHMA:
ANSI/BHMA A156.16, E19091
Product Subgroup:
Door Latches and Catches
Product Type:
Roller Latches
Commercial/Residential:
Commercial
Product Model:
RL32A
Product Dimension:
1-1/8" x 2-1/4" x 2-1/4"
Door Strike:
1-1/8" x 2-3/4" x 3/32"
Product Category:
Door Trim and Accessories
Product Substrate:
Brass
Department:
Door Hardware

Ives IVE-RL32A-US26D – Frequently Asked Questions

1) Will an Ives RL32A roller latch hold a door shut without a lock, or do I still need a latchbolt?
The RL32A is a closure device, not a security device. Closing the door pushes the nylon roller into a depression in the strike and friction holds the door shut, so it keeps a cabinet, closet or storage door from drifting open. There is no bolt, no keying, and nothing to resist someone pulling the door. Ives lists it as light duty. If the opening needs to be secured, or it is a fire door, you need a latching lockset instead.
2) Can I put an Ives RL32A roller latch into an existing knob or lever bore in a door?
Yes. The RL32A body fits a heavy-duty cylindrical lock cutout, so it drops into a door already prepped for a cylindrical lockset. The latch body measures 1-1/8 x 2-1/4 x 2-1/4 inches. That makes it a straightforward swap where a lockset was pulled off a closet or storage door and nobody wants it locking anymore, without repairing the face bore.
3) Does the Ives RL32A roller latch come with a strike, and what size is the strike prep?
An ASA strike ships with the RL32A along with wood screws, so nothing else has to be ordered to install it. The strike measures 1-1/8 x 2-3/4 x 3/32 inches. Wood screws mean the frame side is set up for a wood jamb out of the box; a hollow metal frame needs machine screws and tapped holes, which are not in the package.
4) Can I use the Ives RL32A on a fire-rated door?
No. A fire door has to positively latch, and a roller latch only holds the door with friction from the nylon roller in the strike depression. The RL32A is a light-duty closure for cabinets, closets and storage doors. On a rated opening, use a latching lockset or exit device with the appropriate label.
5) Do I have to order an Ives RL32A roller latch left hand or right hand?
No handing to specify. The roller latch is non-handed, so one part number covers left and right swing, inswing and outswing. For a property manager stocking a maintenance shop or a facility standardizing across many closet doors, that means one shelf item instead of two.
6) Roller latch or a roller catch, which one do I want for a cabinet door?
The difference is the prep. The RL32A is a mortise-style unit sized for a heavy-duty cylindrical lock cutout, 1-1/8 x 2-1/4 x 2-1/4 inches, so it belongs on a door that is already bored or that you are willing to bore. For a light cabinet door with no bore, a surface-applied roller catch like the Emtek 8803 heavy duty roller latch mounts without cutting a lock prep. Choose by what the door is prepped for, not by the door type.
7) Is the Ives RL32A roller latch ANSI/BHMA rated?
Yes. The RL32A carries ANSI/BHMA A156.16 with the E19091 designation, which is the auxiliary hardware standard covering items like roller latches. Ives classes it as commercial hardware. If your facility spec calls out A156.16 auxiliary hardware, this meets it as written on the submittal.
8) What finishes does the Ives RL32A roller latch come in, and can I match the other hardware in the building?
Six finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil-rubbed satin bronze, 625 bright chrome and 626 satin chrome. Those are the standard BHMA finish numbers, so 626 satin chrome matches the satin chrome on most commercial levers and closers, and 613 matches oil-rubbed bronze trim. Order by finish suffix, for example RL32A-US26D for 626.
9) Which roller latch comes with the strike included?
The Ives RL32A ships with an ASA strike measuring 1-1/8" x 2-3/4" x 3/32" plus wood screws, so the frame side is covered in the same order. The Emtek 8803 is catalogued as a Roller Catch in a 7/8" x 6" size; verify the strike arrangement for that one separately when you spec it. If your frame is already prepped for a standard ASA strike lip, the RL32A strike matches that cutout and no additional frame work is needed.
10) Is a roller catch the same thing as a roller latch for a commercial closet door?
They work on the same principle - a spring-loaded roller drops into a depression in the strike to hold the door shut without a latch bolt - but the mounting differs. The Ives RL32A is a brass, non-handed unit built to ANSI/BHMA A156.16 for commercial use, with roller projection adjustable to a maximum of 1/2" via a knurled knob on the back of the latch, which lets you dial in the hold on doors with inconsistent clearance. The Emtek 8803 is a Roller Catch in a 7/8" x 6" size. Both hold a door closed rather than secure it, so neither substitutes for a latching lockset where the opening needs to stay shut against force.
11) Is the Ives RL32A roller latch brass all the way through or just brass plated?
Brass is the substrate, not a coating over steel, which is why it holds up in damp closets, kitchens and mechanical spaces where a plated steel catch will rust at the screw holes. The roller itself is nylon, which is the part that takes the wear each time the door closes and keeps it from chewing up the strike.
12) What is the difference between the Ives RL32A and the plain RL32 roller latch?
The A suffix is the strike package. RL32A comes with the ASA strike, 1-1/8 x 2-3/4 x 3/32 inches, plus wood screws. If you are ordering for a frame that already has an ASA strike prep, that is the one you want, and it saves buying the strike separately.
How fast can I get the Ives IVE-RL32A-US26D delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Ives IVE-RL32A-US26D come with a warranty?
Absolutely. The Ives IVE-RL32A-US26D is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Ives IVE-RL32A-US26D?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Ives IVE-RL32A-US26D from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.

Product Reviews

  • 5
    Brass roller latch

    Posted by matt on Mar 24th 2023

    one latch is able to securely hold a large, heavy barn door for easy open and close when the doors are in use and not locked

!
