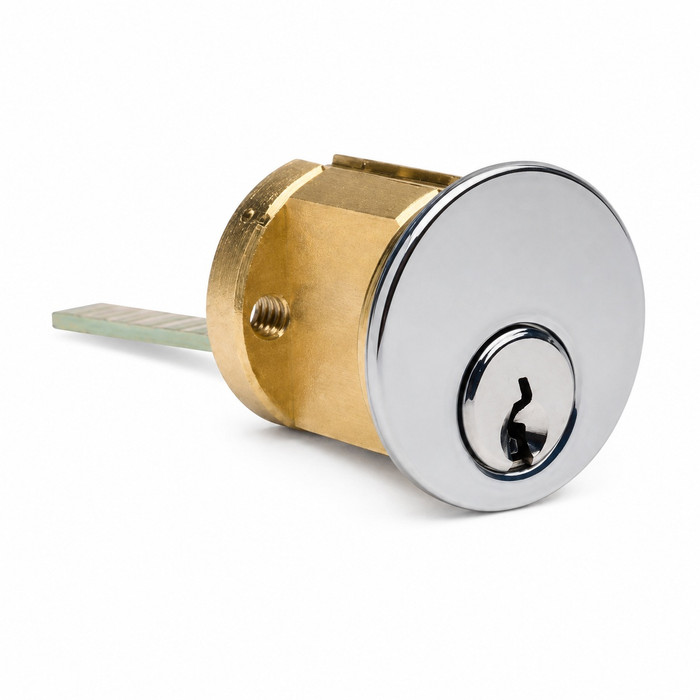

Kaba Ilco Kaba Ilco 7076 1 1/8" (28.6mm) 6 Pin Keyed Rim Cylinder ILC-7076

Kaba Ilco 7076 1 1/8" (28.6mm) 6 Pin Keyed Rim Cylinder

(No reviews yet) Write a Review

Model: 7076-AA-26D
Selected Finish is
Selected Keyway is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Kaba Ilco 7076 1 1/8" (28.6mm) 5 Pin Keyed Rim Cylinder

The line of Rim Cylinders is ideal for use on a 1½" (38.1mm) to 3½" (88.9mm) door thicknesses. Each Rim Cylinder is machined from solid brass bar stock and is furnished with lost motion tailpiece, trim ring, mounting plate, and break-off screws.

  • Model 7076 is 6 pin
  • 31 keyways
  • Screw cap design
  • 1 1/8" (28.6mm) Length
  • Includes rigid tailpiece installed and lazy action tailpiece in box
  • Includes trim ring, mounting plate, and break off screws
  • Horizontal or vertical tailpiece
  • Factory master keying/construction master keying available



Keyways:



Finishes:

  • Bright Brass
  • Satin Brass
  • Antique Brass
  • Satin Bronze
  • Oil Rubbed Bronze
  • Satin Nickel
  • Bright Chrome
  • Satin Chrome
  • Black Aluminum
  • Bright Stainless Steel
  • Satin Stainless Steel



Product Downloads

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Rim Cylinders
Subcategory:
Cylinders
Commercial/Residential:
Commercial
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Parts and Accessories
Department:
Door Hardware

Kaba Ilco 7076-AA-26D – Frequently Asked Questions

1) What comes in the box with an Ilco 7076 rim cylinder, and do I need anything else to install it?
Each 7076 ships with a rigid tailpiece already installed, a lazy action (lost motion) tailpiece loose in the box, a trim ring, a mounting plate, and break-off screws. That is everything needed to mount it through the door and set the screw length for your door thickness. You supply nothing extra for the mounting itself, though the device it drives (exit device, rim lock) is separate.
2) How do I choose between the Ilco 7076 and a Medeco high security rim cylinder?
The 7076 is a conventional brass rim cylinder for standard commercial keying, and its strength is keyway breadth, 31 keyways so it drops into whatever system a building already runs. If the opening needs key control and attack resistance instead, ZenSupply carries the Medeco 100400H, a 6-pin 1-1/8 inch rim cylinder with horizontal/vertical tailpiece that is UL 437 listed, Grade 1 and heavy duty. Same size class, different job: pick the Medeco where keys must not be duplicated, pick the 7076 where matching the existing keyway and finish is what matters.
3) What is the difference between a rim cylinder and a mortise cylinder, and which one do I need?
A rim cylinder like the 7076 mounts from the outside face of the door and is held by a mounting plate and two screws on the inside, driving the device through a flat tailpiece. A mortise cylinder instead threads into the lock body. If you are replacing the key cylinder on a rim exit device or a surface-mounted rim lock, a rim cylinder is what you want. If the cylinder you pulled out has threads around its body, that is a mortise cylinder and this one will not go in.
4) What rim cylinder should be used when the exit device is a Sargent and the mounting pattern does not match a standard rim cylinder?
The Medeco 100403 is a 6-pin rim cylinder built with a Sargent mounting style and a horizontal/vertical tailpiece, rated Grade 1 heavy duty. The Kaba Ilco 7076 is a standard 6 pin rim cylinder furnished with trim ring, mounting plate and break-off screws, and it is offered in Sargent keyways including GA Sargent LA, GB Sargent LA-LC and GC Sargent RA-RC for keying into an existing Sargent system. Keyway compatibility and mounting style are separate decisions: matching the key does not by itself match a Sargent-specific mounting pattern.
5) What is a high security alternative to the Kaba Ilco 7076 rim cylinder for an opening that needs drill and pick resistance?
The Kaba Ilco 7076 is a 6 pin rim cylinder machined from solid brass bar stock, supplied with lost motion tailpiece, trim ring, mounting plate and break-off screws, and it is a conventional pin tumbler cylinder rather than a high security one. When the opening calls for a listed high security cylinder, the Medeco 100400H is a 6-pin 1-1/8 inch rim cylinder with horizontal/vertical tailpiece that is UL 437 listed and rated Grade 1 heavy duty. Both are 1-1/8 inch 6-pin rim cylinders with horizontal or vertical tailpiece, so the mounting and length match while the key control and attack resistance differ.
6) Does the Ilco 7076 tailpiece work on a device that needs a horizontal tailpiece?
Both orientations are covered. The 7076 works horizontal or vertical, and it comes with two tailpieces, a rigid one installed and a lazy action one in the box. Rim exit devices generally want the horizontal or vertical position their chassis calls for, and lost motion tailpieces are what many exit devices require so the cylinder does not bind. Fit the one your device specifies.
7) What finishes does the Kaba Ilco 7076 rim cylinder come in for matching existing hardware?
Eleven finishes: Bright Brass, Satin Brass, Antique Brass, Satin Bronze, Oil Rubbed Bronze, Satin Nickel, Bright Chrome, Satin Chrome, Black Aluminum, Bright Stainless Steel, and Satin Stainless Steel. For a building being standardized, satin chrome and satin stainless are the usual matches to commercial exit device trim, and oil rubbed bronze or antique brass suit older brass hardware sets.
8) Can I get Ilco 7076 rim cylinders master keyed for an apartment building?
Factory master keying and construction master keying are both available on the 7076. Construction master keying lets trades work the site on a temporary key that is voided once the permanent key is first used, which is the normal setup on a building turnover. Order every cylinder in the same keyway so the whole fleet keys to one system.
9) For a rim cylinder that has to match existing Schlage or Yale keys across a building, which cylinder covers the most key systems?
The Kaba Ilco 7076 is offered in 31 keyways covering Schlage C, E, F and Everest, Yale 8 and Yale, Corbin and Corbin/Russwin, Russwin and Russwin D1, Sargent LA, LA-LC and RA-RC, Arrow, Kwikset, Weiser, Lockwood, Segal 9, Dominion 1054F and Lori, in finishes from bright brass through satin stainless steel. That breadth is what lets one part number key into whatever system is already on the property. The Medeco comparables, including the 100300 5 pin 1-1/16 inch rim cylinder and the 100400H UL 437 listed 6-pin, are high security cylinders on their own restricted key systems rather than aftermarket keyway matches.
10) What is the difference between the Kaba Ilco 7076 and an electronic rim cylinder like the Medeco 100400 XT?
The Kaba Ilco 7076 is a mechanical pin tumbler rim cylinder keyed to one of 31 keyways, with factory master keying and construction master keying available. The Medeco 100400 XT is an electronic no-wire rim cylinder with horizontal/vertical tailpiece, drill and tamper resistant, rated Grade 1 heavy duty. The 7076 is keyed and rekeyed like any mechanical cylinder and needs no credential programming; the XT is an audited electronic credential platform. Choose the mechanical cylinder when the door stays on a key system and the electronic one when access needs to be assigned and revoked per user.
11) Is the Ilco 7076 rim cylinder solid brass or plated pot metal?
Machined from solid brass bar stock. That is the body material regardless of which of the eleven finishes you order, so a satin chrome or black aluminum finish is a plating over the same brass cylinder, not a different casting.
12) Is the Kaba Ilco 7076 rated for commercial use or is it a residential cylinder?
Commercial. The 7076 is a commercial replacement part, a solid brass rim cylinder for storefront doors, rim exit devices and rim locks. It is offered in Kwikset and Weiser keyways too, so it can be keyed to residential-style keys where a mixed-use property runs them, but the cylinder itself is built for commercial openings.
