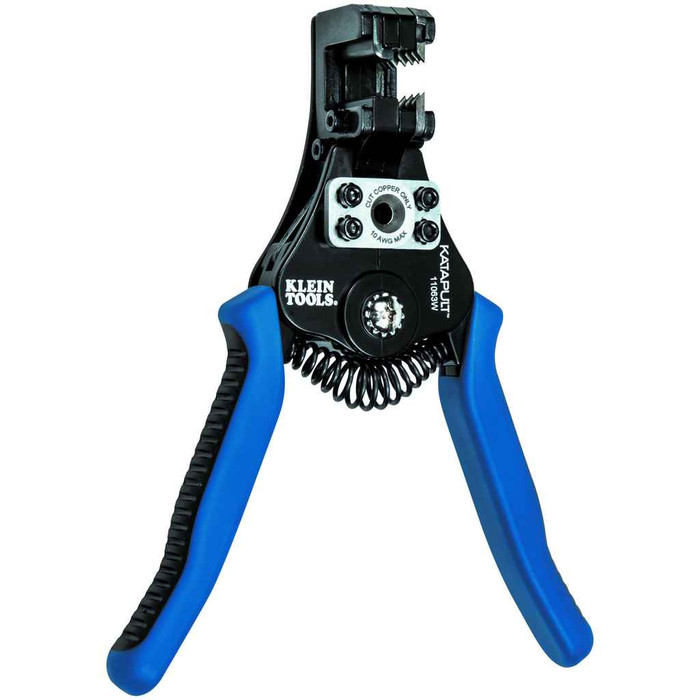

Klein Tools 11063W Katapult® Wire Stripper and Cutter for Solid and Stranded Wire

Klein Tools Katapult Wire Stripper and Cutter 8-20 AWG Solid 10-22 AWG Stranded Professional Tool

(No reviews yet) Write a Review

Model: 11063W
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$97.90
$52.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Klein Tools Katapult Wire Stripper and Cutter 8-20 AWG Solid 10-22 AWG Stranded Professional Tool

Professional precision wire stripping with compound action technology

Klein Tools Katapult Wire Stripper and Cutter delivers professional-grade wire preparation with precision machined stripping holes and compound action technology. The cast alloy chassis with heavy-duty Ecoat finish provides corrosion resistance and durability for demanding electrical work. Features tension loaded wire-grip that gently holds cable while retaining geometry, and removes up to 1-inch of insulation in a single step for efficient wire preparation.

Professional Features & Benefits

  • 8-20 AWG Solid and 10-22 AWG Stranded Capacity: Handles the most common wire gauges for versatile electrical applications and professional installations.
  • Cast Alloy Chassis with Heavy-Duty Ecoat Finish: Provides superior corrosion resistance and long-lasting durability in demanding work environments.
  • Compound Action Stripping Technology: Single-action squeezing motion delivers efficient grip and strip operation for increased productivity.
  • Precision Machined Stripping Holes: Cleanly removes insulation without damaging wire conductors, ensuring reliable electrical connections.
  • Tension Loaded Wire-Grip System: Gently holds cable while maintaining proper geometry for consistent, professional results.
  • Up to 1-Inch Insulation Removal: Strips jacket layer in a single step for efficient cable preparation and reduced installation time.
  • 6.594" Overall Length: Optimal size provides comfortable handling and precise control for detailed electrical work.

Technical Specifications

  • Department: Electrical
  • Depth: 6.6250 in
  • Handle Color: Blue/Black
  • Height: 5.2500 in
  • Hold Open Spring: Yes
  • Material: Cast Alloy Chassis with Heavy-Duty Ecoat Finish
  • Overall Length: 6.594" (16.8 cm)
  • Product Group: Hand Tools
  • Product Subgroup: Pliers & Cutters
  • Strips And Cuts: 8-20 AWG Solid, 10-22 AWG Stranded
  • Weight: 0.7500 lbs
  • Width: 5.2500 in

Professional Applications

  • Residential Electrical Installations
  • Commercial Wiring Projects
  • Industrial Maintenance and Repair
  • Control Panel Assembly
  • Telecommunications Wiring
  • Automotive Electrical Work
  • Professional Service and Repair

Why Choose Klein Tools Quality?

Klein Tools delivers professional-grade reliability with cast alloy construction and heavy-duty Ecoat finish for long-lasting performance. The precision machined components and compound action design ensure consistent results for demanding electrical applications, backed by Klein Tools' commitment to professional tool quality and durability.

Manufacturer Resources

Spec Sheet

Product Specs

Handle Color:
Blue/Black
Hold Open Spring:
Yes
Overall Length:
6.594" (16.8 cm)
Strips And Cuts:
8-20 AWG Solid, 10-22 AWG Stranded
Department:
Electrical
Product Group:
Hand Tools
Product Subgroup:
Wire Strippers & Crimpers
Product Height:
5.2500 in
Product Material:
Cast Alloy Chassis with Heavy-Duty Ecoat Finish
Product Weight:
0.7500 lbs
Product Width:
5.2500 in
Product Depth:
6.6250 in
Product Type:
Wire Stripper

Klein Tools 11063W – Frequently Asked Questions

1) What wire gauges does the Klein Katapult 11063W strip and cut?
The Katapult 11063W handles 8-20 AWG solid and 10-22 AWG stranded wire. That covers the usual residential and commercial branch circuit range (12 and 14 AWG solid romex conductors) right down to 20 or 22 AWG control and low-voltage conductors. If you are working 6 AWG feeders or larger, this is not the tool for it.
2) Can I strip stranded THHN with the Katapult, or is it solid wire only?
Both. Solid is covered from 8 through 20 AWG and stranded from 10 through 22 AWG, using precision machined stripping holes that pull the insulation without nicking the conductor. Note the stranded range starts at 10 AWG, so 8 AWG stranded falls outside what the holes are cut for.
3) How much insulation can this Klein stripper take off in one pull?
Up to 1 inch of insulation in a single step. The compound action means one squeeze grips the wire and strips it, and a tension loaded wire-grip holds the cable without crushing it so the conductor geometry stays intact. For panel work and device terminations where you want a consistent 3/4 inch strip length, that is a single motion per conductor.
4) Do I need a separate cutter, or does the Katapult cut wire too?
It strips and cuts across the same range: 8-20 AWG solid and 10-22 AWG stranded. For a stocking order, that means one tool covers strip and cut for typical branch wiring, though most electricians still carry side cutters or linesman pliers for heavier conductors and screw shanks.
5) What is the exact Klein part number to order for the Katapult stripper?
Order Klein Tools 11063W. That is the Katapult wire stripper and cutter for solid and stranded wire, cast alloy body, 6.594 inch overall length. There is a single model configuration, so there are no finish or size options to specify.
6) Is the Katapult 11063W suitable for low-voltage and control panel wiring?
Down to 22 AWG stranded and 20 AWG solid, yes, which covers most control, telecom, and thermostat conductors. Klein lists control panel assembly and telecommunications wiring among its applications. Anything finer than 22 AWG, such as fine instrumentation leads, needs a dedicated small-gauge stripper.
7) Will this wire stripper hold up in a damp or industrial environment?
The chassis is cast alloy with a heavy-duty Ecoat finish, which is what gives it corrosion resistance on outdoor service work, plant maintenance, and jobs where tools live in a wet van. The Ecoat is on the body, not the cutting edges, so wipe and oil the jaws like any other hand tool.
8) Does the Klein Katapult have a spring return so it opens on its own?
Yes, it has a hold open spring, so the jaws reset after each strip and you can run conductor after conductor one-handed while your other hand manages the cable. Handles are blue and black.
