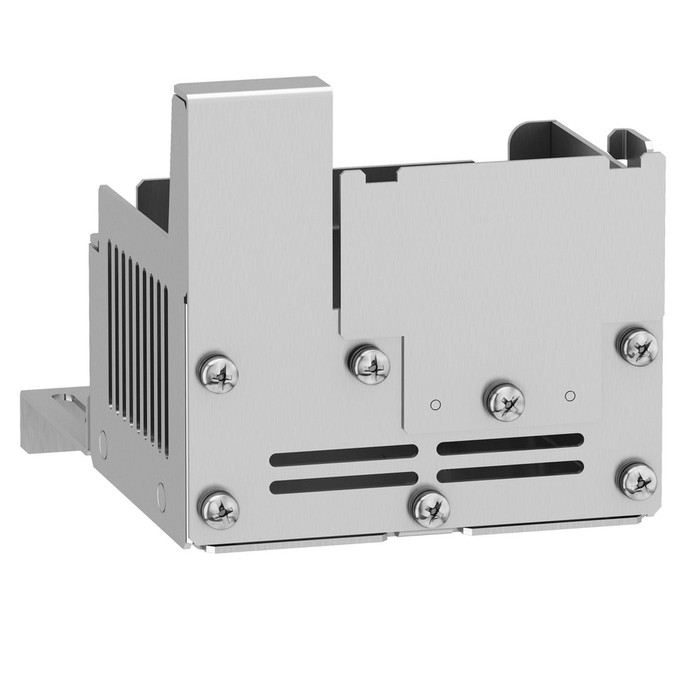

Square D ATV320 UL Type 1 Conformity Kit, Underside Drive Mounting Accessory
The Square D ATV320 UL Type 1 Conformity Kit is a mounting accessory for the Altivar Machine ATV320 range of variable speed drives, built for Original Equipment Manufacturers (OEMs) and control panel builders. This kit mounts underneath the drive and enables the ATV320 (frame size 2) to meet UL Type 1 enclosure requirements. It ships as a mechanical device kit, packaged 1 ea, compatible with ATV320...C 1.1 kW, 200...240 V single-phase variable speed drives.
Key Features
- UL Type 1 Conformity: Enables the Altivar Machine ATV320 drive to meet UL Type 1 requirements.
- Frame Size 2 Fit: Engineered for ATV320 drives with a frame size of 2.
- Underside Mounting: Mounts under the variable speed drive without altering its footprint.
- Mechanical Device Kit: Kit composition is a mechanical device, categorized as a mounting and fixing accessory.
- Drive Compatibility: Compatible with variable speed drive ATV320...C 1.1 kW, 200...240 V, single phase.
- Packaging: Supplied 1 ea.
Certifications & Compliance
- UL Type 1 Standard
- California Prop 65 Warning: may expose you to lead and lead compounds, known to the State of California to cause cancer and reproductive harm.
Technical Specifications
- Take Back: No
- Tier: 1
- Returnability: Yes
- Sustainable Packaging: No
- Packaging Without Single Use Plastic: No
- Reach Free Shvc: Yes
- Tier Id: 1
- ROHS Eur In Scope: No
- Recycled Metal Content At Cr Level: 0 %
- Legacy WEEE Scope: Out
- China ROHS Regulation: X
- Packaging Made With Recycled Cardboard: No
- China ROHS Label: 5
- Serviceability: No
- With Recycled Cardboard: No
- Without Single Use Plastic: No
- ROHS Exemption Information: Yes
- Traceability: No
- Reach Free Of Svhc: Yes
- ROHS Eur Full Compliance Status: Pro-active compliance (out of EU RoHS legal scope)
- Relationshiptype: Compatible relationship
- China ROHS In Scope: Yes
- Eu Rohs Directive: Pro-active compliance (out of EU RoHS legal scope)
- Scope Perimeter: At least in Europe
- Return Indicator: Y
Typical Applications
- OEM Machine Building with Altivar ATV320 Variable Speed Drives
- UL Type 1 Enclosure Compliance for Industrial Control Panels
- Variable Speed Drive Mounting and Accessory Installations
- Industrial Automation and Machine Control Systems
Why Square D?
Square D backs the Altivar Machine ATV320 range with purpose-built accessories like this UL Type 1 conformity kit, helping OEMs and panel builders meet code requirements with a mechanical fit engineered for the ATV320 frame size 2 drive. Choosing Square D accessories ensures compatible, reliable performance for industrial variable speed drive installations.
Manufacturer Resources
Product Specs
- Product Type:
- Mounting Kit
- Series:
- Altivar Machine ATV320
- Standards:
- UL Type 1
- Configuration:
- Underside Drive Mounting
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Parts & Accessories
Square D VW3A95812 – Frequently Asked Questions
1) Will the Square D VW3A95812 kit fit my ATV320 drive?
The VW3A95812 UL Type 1 conformity kit is built for ATV320 frame size 2 drives, specifically the ATV320...C 1.1 kW, 200 to 240 V single-phase variable speed drive. If your Altivar Machine drive is a different frame size or a different voltage/phase rating, this is not the matching kit for it.
2) What does the ATV320 UL Type 1 conformity kit actually do?
It is a mechanical kit that mounts underneath the Altivar Machine ATV320 drive so the drive meets UL Type 1 enclosure requirements. There is no electronics in it, no wiring to land, and it does not change the drive's footprint on the panel back plate.
3) Do I need this kit if my ATV320 is already inside a control cabinet?
The kit exists to bring the bare ATV320 drive itself up to UL Type 1. If your drive is installed inside an enclosure that already carries the required rating for the application, the conformity kit is about the drive's own terminal protection rather than the cabinet. Panel builders and OEMs typically add it when the drive assembly has to be documented as UL Type 1 in its own right.
4) Is the VW3A95812 a cooling or heat sink accessory for the ATV320?
No. It is strictly a mounting and fixing accessory that attaches under the drive for UL Type 1 conformity. It does not provide ventilation, filtering, or thermal management, and it is not an EMC or line filter option.
5) How many pieces come in the Square D VW3A95812 conformity kit?
It ships as one kit, supplied 1 ea, containing the mechanical underside mounting parts. One kit covers one frame size 2 ATV320 drive, so order one per drive you need to bring to UL Type 1.
6) What is the exact part number and country of origin for this ATV320 Type 1 kit?
Square D manufacturer part number VW3A95812, part of the Altivar Machine ATV320 accessory range, made in Indonesia.
7) Does the Square D ATV320 conformity kit carry a Prop 65 warning?
Yes. The VW3A95812 kit carries a California Prop 65 warning for lead and lead compounds, known to the State of California to cause cancer and reproductive harm. Institutional and government buyers who need that disclosure on file should note it.
