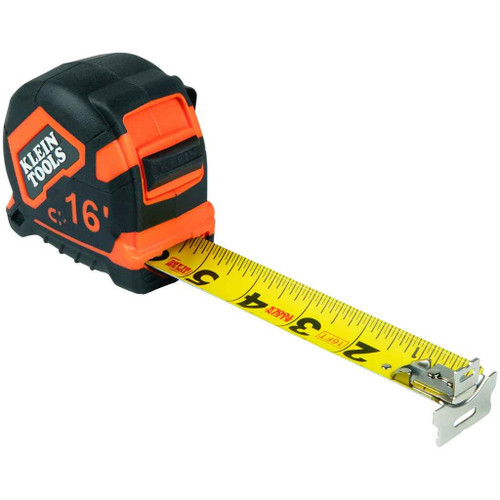

Klein Tools Tape Measure, Compact, Double-Hook

Klein Tools Tape Measure, Compact, Double-Hook

(No reviews yet) Write a Review

Model: 9516

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Tape Measure, 25-Foot Compact, Double-Hook

  • Warnings

    • Not insulated. Do NOT use on live circuits.
    • To avoid personal injury and prevent damage to product, do not allow the blade to retract into case at full speed.
    • Always wear eye protection.
    • Do NOT open case. Spring motor is under tension and opening may cause injury.

  • Features

    • 5-Point reinforced housing improves impact resistance and exterior durability
    • Tape Measure with 13-Foot Reach (standout plus estimated extension of typical user) and a 10-Foot Standout
    • Double-sided imperial scale markings with added architectural scale for versatility to assist different types of measurements
    • Compact Design, Easy to Read Bold Lines Every 1/8''; 13-Foot Reach
    • Uncluttered, easy-to-read bold lines marked on blade every 1/8-Inch
    • US Patent D803711
    • Durable nylon coating increases steel blade wear resistance and protection in jobsite environments
    • Blade retraction speed controlled by finger brake and protects fingers from touching the blade
    • Compact and lightweight tape measure design is easy to carry around for all day use and to store in tight spaces


9525 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Department:
Electrical
Product Type:
Tape Measure
Lockable Tape:
Yes
Product Details:
Tape Measure
Rewind Type:
Automatic
Product Subgroup:
Tool Kits
Belt Clip:
Yes
Product Material:
Steel, ABS plastic
Measurement Standard:
SAE
Case Material:
ABS Plastic
Case Color:
Orange/Black
Standout Length:
Up to 13' (4 m)
Graduations:
1/16''
Hook:
Double-Sided
Tape Width:
1 1/8"
Product Group:
Tool Sets
Magnetic:
No
Tape Material:
Steel
Tape Coating:
Nylon

Klein Tools 9516 – Frequently Asked Questions

1) What lengths does the Klein Tools compact double-hook tape measure come in?
Two blade lengths: 16-foot (model 9516) and 25-foot (model 9525). Both use the same 1-1/8 inch wide nylon-coated steel blade and the same compact 5-point reinforced housing, so the only decision is reach. The 25-foot is the usual pick for commercial layout and stud runs; the 16-foot keeps the case smaller on a belt for service and device work.
2) Can I use this Klein tape measure around live electrical panels?
No. The 9516 and 9525 tape measures are not insulated and must not be used on live circuits. The blade is steel, so treat it as a conductor: de-energize before measuring inside gear or a panel enclosure. Klein also calls for eye protection during use.
3) How far will this tape stand out unsupported before it folds over?
Standout is rated up to 13 feet (4 m), with 10 feet of that being blade standout and the balance the estimated arm extension of a typical user. That is what lets one person measure a ceiling height or across an opening without a second hand holding the end.
4) What is a double-sided hook for on a tape measure, and does it help on metal studs?
The double-sided hook grabs on both the push and the pull, so you can hook a stud flange, a track edge, or a box ear from either direction instead of flipping the case around. It is not magnetic, so on steel studs and panel enclosures you still hook or hold the end rather than relying on a magnet to stick.
5) How fine are the markings on this Klein tape, and is there a metric scale?
Graduations run to 1/16 inch, with bold lines called out every 1/8 inch to keep the blade easy to read fast. It is an SAE (imperial) blade, marked on both sides, and it also carries an architectural scale. There is no metric scale, so if your drawings are in millimeters this is the wrong tape.
6) Does this tape measure lock, and does it clip to a belt or pouch?
Yes to both. The blade locks where you set it, rewind is automatic, and a finger brake controls retraction speed so the blade does not snap back at full speed (which is also how the housing and your fingers survive the day). A belt clip is included for carrying on a tool belt or pouch.
7) How durable is the case and blade for daily jobsite and MRO use?
The case is ABS plastic with 5-point reinforcement for impact resistance, and the steel blade carries a nylon coating to resist wear and abrasion in dirty conditions. Orange and black case, which is easy to spot on a floor or in a gang box. Do not open the case to service it, the spring motor is under tension.
