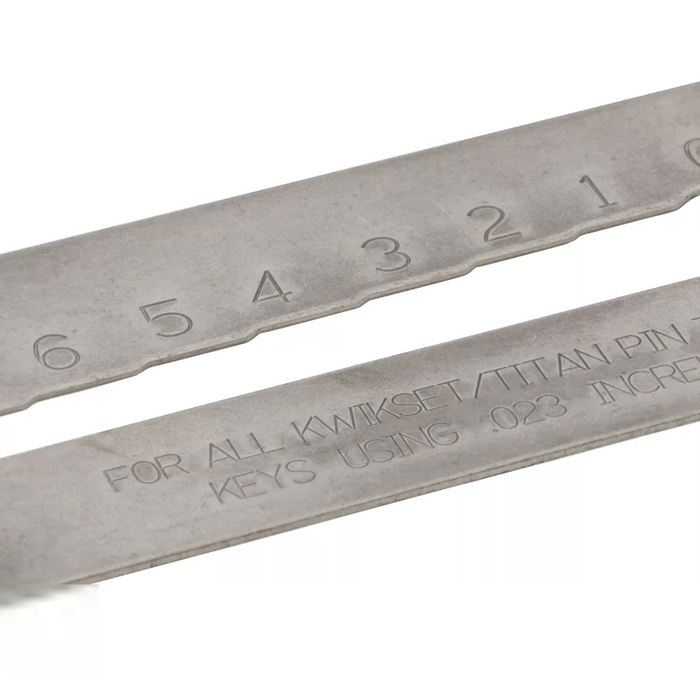

Kwikset 80049 Key Gauge For All Kwikset/Titan Pin Tumbler Keys Using .023 Increments

No. The 80049 gauge is cut for Kwikset and Titan pin tumbler keys on the .023 inch depth increment, and Schlage uses a different depth step and keyway. For Schlage decoding, the Schlage Commercial 40-104 Pin Tumbler Key Gauge is the equivalent tool.

The Schlage Commercial 40-104 Pin Tumbler Key Gauge is the corresponding tool on the Schlage side, listed with a key decoder function. The Kwikset 80049 reads Kwikset and Titan pin tumbler keys cut in .023 inch depth increments, so the two are not interchangeable across keyways - use the 80049 when the keys on the bench are Kwikset or Titan, and the 40-104 when they are Schlage pin tumbler keys.

The 80049 is a gauge - it decodes cut depths on Kwikset and Titan pin tumbler keys and does not itself repin a cylinder. For the pinning work, the Schlage Commercial 40-132 Retail Keying Kit is listed with a pinning kit function, as is the Schlage Commercial 40-074 Everest Vice Jaw Upgrade Kit. A gauge and a pinning kit are complementary rather than substitutes; a bench that rekeys regularly carries both.

It is a decoding gauge only, listed as an installation accessory, not a pinning kit. You still need the pin assortment and follower tools to actually rekey. If you want a kit-style package instead, Schlage offers the 40-132 Retail Keying Kit and the 40-133 Home Secure Keying Kit on the Schlage side.

It helps with the first step. Decode one existing key with the 80049 to get the cut depths, then pin the other Kwikset or Titan cylinders to those same depths so they all run on one key. The gauge reads depths only; the pins and the cylinder work are separate.

No. The 40-074 is an Everest vice jaw upgrade kit with a pinning kit function - it is bench fixturing for holding cylinders during pinning work. The Kwikset 80049 is a gauge used to read cut depths on Kwikset and Titan pin tumbler keys at .023 inch increments. They address different steps of the job and neither replaces the other.

It depends on what the staff does in house. The Kwikset 80049 gauge only decodes existing Kwikset and Titan pin tumbler keys cut in .023 inch increments, which is what you want when you are identifying or duplicating what is already on the doors. If maintenance is changing key combinations on the cylinders themselves, a kit such as the Schlage Commercial 40-133 Home Secure Keying Kit or the Schlage Commercial 40-132 Retail Keying Kit covers that side of the work. Keep the tool matched to the keyway family already installed in the building.

Yes. Kwikset classes the 80049 as a commercial item, and it is the standard bench tool for a property management or MRO shop that maintains Kwikset and Titan cylinders across a building and needs to decode existing keys before pinning replacements.
