Klein Tools 93LCLGR Rechargeable Self-Leveling Green Cross-Line Laser Level with Red Plumb
Model: KLN-93LCLGR
Rechargeable Self-Leveling Green Cross-Line Laser Level with Red Plumb
Warnings
Class II Laser Product.
Laser Radiation: Do Not Stare Into Beam.
See instruction manual for additional warnings...
Klein Tools
$414.29
$307.96

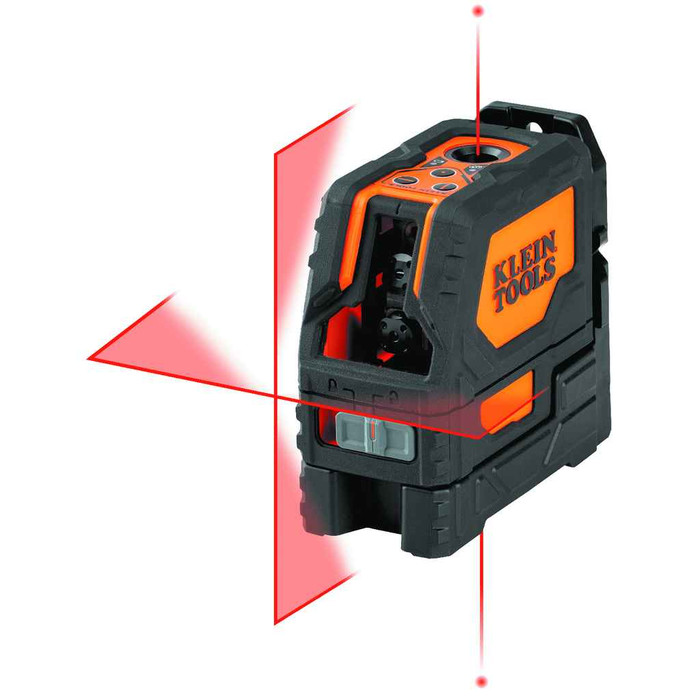

Klein Tools Self-Leveling Laser Level with Red Cross-Line and Plumb Spot - IP54 Water Resistant Professional Alignment System
Professional precision alignment with self-leveling technology and comprehensive mounting solutions
Klein Tools delivers professional-grade laser alignment with this self-leveling laser level featuring red cross-line and plumb spot projection. The IP54 water and dust resistant ABS housing ensures reliable performance in demanding work environments, while the integrated magnetic 360-degree mounting bracket with rare earth magnets provides versatile positioning options. Complete with hard carrying case and mounting clamp for ceiling grid applications, this system offers comprehensive alignment solutions for professional contractors and tradespeople.
Professional Features & Benefits
- Self-Leveling Technology: Automatically levels horizontal and vertical lines for consistent accuracy without manual adjustment, improving efficiency and reducing setup time.
- IP54 Water and Dust Resistance: ABS housing protects internal components from moisture and debris, ensuring reliable operation in challenging job site conditions.
- 65' Maximum Distance Range: Extended projection range covers large work areas and multi-room applications without repositioning the unit.
- Four Beam Configuration: Projects horizontal, vertical, plumb up, and plumb down beams independently or together for comprehensive alignment versatility.
- Integrated Magnetic Mounting: 360-degree mounting bracket with permanent rare earth magnets provides secure attachment to metal surfaces and includes 1/4" and 5/8" tripod threads.
- Low Battery Indicator: Alerts users to battery status preventing unexpected shutdowns during critical alignment tasks.
- Complete Professional Kit: Includes hard carrying case, mounting clamp, instruction manual, and 3 x AA alkaline batteries for immediate deployment.
Technical Specifications
- Accuracy: �3/32" per 33' (�2 mm per 10 m) Vertical & Horizontal Beams, �1/8" per 33' (�3 mm per 10 m) Plumb Up Spot, �5/32" per 33' (�4 mm per 10 m) Plumb Down Spot
- Bag Or Case: Hard Carrying Case
- Batteries: 3 x AA
- Department: Electrical
- Depth: 5.3000 in
- Height: 5.0000 in
- Included: Laser Level; Hard Carrying Case; Instruction Manual; Mounting Clamp; 3 x AA 1.5V Alkaline Batteries
- Ingress Protection: IP54 - Water and Dust Resistant
- Laser Color: Cross Line - Red; Plumb - Red
- Low Battery Indicator: Yes
- Magnet Type: Permanent Rare Earth
- Material: ABS Housing, Electronic Components
- Maximum Distance: 65' (20 m)
- Number Of Beams: Four Horizontal, Vertical, Plumb Up, Plumb Down
- Overall Height: 5" (12.7 cm)
- Overall Length: 5.3" (13.5 cm)
- Overall Width: 2.6" (6.6 cm)
- Plumb Laser: Yes
- Product Details: Self-Leveling Laser Level
- Product Group: Test & Measurement
- Product Subgroup: Environmental Meters
- Product Type: Self-Leveling Laser Level
- Transit Locking Mechanism: Yes
- Weight: 1.7900 lbs
- Width: 2.6000 in
Professional Applications
- Electrical Installation and Panel Alignment
- Framing and Construction Layout
- Tile and Flooring Installation
- Cabinet and Fixture Mounting
- Suspended Ceiling Grid Installation
- HVAC Equipment Positioning
- General Construction Alignment Tasks
Why Choose Klein Tools Quality?
Klein Tools delivers professional-grade reliability with IP54 water and dust resistance, transit locking mechanism for transport protection, and comprehensive accuracy specifications. The ABS housing construction and permanent rare earth magnet mounting system ensure long-term durability in demanding professional environments, backed by Klein Tools' commitment to quality craftsmanship.
Manufacturer Resources
Spec Sheet
Product Specs
- Bag Or Case:
- Hard Carrying Case
- Batteries:
- 3 x AA
- Ingress Protection:
- IP54 - Water and Dust Resistant
- Laser Color:
- Cross Line - Red; Plumb - Red
- Low Battery Indicator:
- Yes
- Magnet Type:
- Permanent Rare Earth
- Maximum Distance:
- 65' (20 m)
- Number Of Beams:
- Four Horizontal, Vertical, Plumb Up, Plumb Down
- Overall Height:
- 5" (12.7 cm)
- Overall Length:
- 5.3" (13.5 cm)
- Overall Width:
- 2.6" (6.6 cm)
- Plumb Laser:
- Yes
- Transit Locking Mechanism:
- Yes
- Product Type:
- Laser Level
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Measuring Tools
- Product Details:
- Self-Leveling Laser Level
- Product Height:
- 5.0000 in
- Product Material:
- ABS Housing, Electronic Components
- Product Weight:
- 1.7900 lbs
- Product Width:
- 2.6000 in
- Product Depth:
- 5.3000 in
- Country of Origin:
- China
Klein Tools 93LCLS – Frequently Asked Questions
1) How accurate is the Klein Tools 93LCLS laser level over a room-length run?
The 93LCLS holds plus or minus 3/32 inch per 33 feet (2 mm per 10 m) on the horizontal and vertical lines. The plumb up spot is plus or minus 1/8 inch per 33 feet (3 mm per 10 m) and the plumb down spot is plus or minus 5/32 inch per 33 feet (4 mm per 10 m). Those are three different tolerances, so if you are transferring a point from a ceiling to a floor, expect the down spot to be the loosest of the three. For cabinet runs, tile courses, and receptacle heights across a typical room, the line accuracy is the number that matters.
2) How far will the Klein 93LCLS red laser project?
Maximum distance is 65 feet (20 m). That covers most single rooms, a corridor section, or a suspended ceiling bay without moving the unit. On a long open floor plate you will be leapfrogging the tool rather than shooting the whole run at once. It is a red beam on both the cross line and the plumb spots, so in bright exterior daylight the practical working distance drops well short of the rated figure.
3) Can I mount the Klein 93LCLS laser level on a tripod, or does it only sit on the floor?
Both. The 360 degree magnetic bracket that comes attached carries a 1/4 inch and a 5/8 inch tripod thread, so it takes a standard camera-style tripod (1/4-20) and a construction-grade laser tripod or pole (5/8-11) without an adapter. The bracket also uses permanent rare earth magnets, which is the faster option on a job: stick it to a steel stud, a ceiling grid tee, a panel enclosure, or strut and skip the tripod entirely. A mounting clamp for ceiling grid work is in the box as well.
4) Will a cross-line laser with a plumb spot handle laying out receptacles and transferring points to the ceiling, or do I need a rotary?
For interior layout, the 93LCLS covers it. It throws four beams: horizontal, vertical, plumb up, and plumb down. The crossed horizontal and vertical lines set device heights, tile courses, and cabinet runs, while the plumb up and down spots let you carry a floor point straight to the ceiling for a light, a sprinkler drop, or a hanger rod. That up and down spot pair is the reason to pick this over a plain two-line level. Where it will not substitute is long-range exterior grading or elevation work over hundreds of feet, which is rotary laser territory, and the rated 65 foot maximum distance is the line to judge that against.
5) What comes in the box with the Klein Tools 93LCLS laser level?
Everything needed to work the day it arrives: the laser level, a hard carrying case, a mounting clamp, the instruction manual, and 3 x AA 1.5V alkaline batteries. You do not need to buy batteries or a case separately. The only thing not included is a tripod, if you want one, and the bracket is threaded 1/4 inch and 5/8 inch to accept one.
6) Can I use the Klein 93LCLS laser level on a dusty framing site or outside in light rain?
It is rated IP54, water and dust resistant, in an ABS housing. The 5 in that rating means dust protected, enough for drywall sanding, concrete cutting dust, and general framing debris. The 4 covers splashing water from any direction, so light rain, overspray, or a wet slab will not kill it. IP54 is not submersion or pressure washing, so it is a splash rating and nothing more.
7) Does the Klein 93LCLS have a transit lock to protect the pendulum when it is thrown in a truck?
Yes, there is a transit locking mechanism. Lock the pendulum before the tool goes in the case, and it rides in a van or gang box without the compensator swinging and knocking itself out of calibration. This is the single biggest cause of a self-leveling laser drifting out of spec, and it is why the hard carrying case and the lock matter together rather than separately.
8) Can I run just the horizontal line on the Klein 93LCLS, or does it always project all four beams?
The four beams, horizontal, vertical, plumb up, and plumb down, run independently or together. That matters on a ceiling grid or a tile floor where a stray vertical line across the work just adds confusion, and it matters for battery life on a long day since you are only powering the beams you are using.
9) What batteries does the Klein 93LCLS laser level take, and how do I know when they are low?
Three AA cells, and three 1.5V alkalines ship in the box. There is a low battery indicator on the unit, so you get warning before it shuts down mid-layout rather than losing a line halfway through a cabinet run. Standard AA means a crew restocks it from the same box of batteries that feeds their flashlights and test meters, with no proprietary pack to charge or lose.
10) How big is the Klein 93LCLS laser level, and will it fit in a tool pouch?
The tool measures 5.3 inches long by 5 inches high by 2.6 inches wide and weighs 1.79 pounds. That is pouch and bucket-organizer sized on its own, though it ships in a hard case that is larger. Under two pounds with a magnetic bracket means it will hang off a steel stud or a ceiling tee without needing support, which is the practical reason the weight matters more than the shipping figure.
11) What is the Klein Tools part number for this self-leveling cross-line laser?
The manufacturer part number is 93LCLS. That is a self-leveling laser level projecting a red cross line plus red plumb up and plumb down spots, supplied with the hard case, mounting clamp, and batteries. Klein sells several lasers in the 93 series that differ in beam configuration, so quote the full 93LCLS when ordering or matching what a crew already carries.
