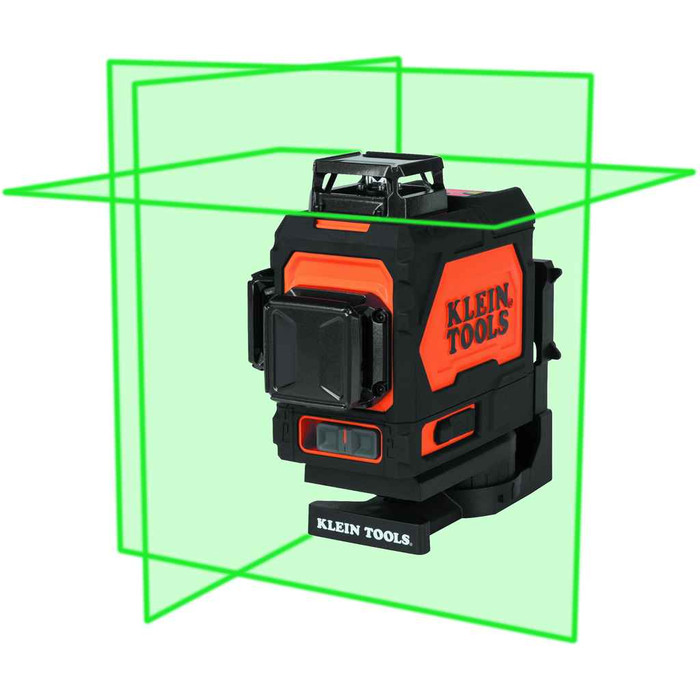

Klein Tools Self-Leveling Green Planar Laser Level with 3 Orthogonal 360� Lines and 9-Hour Battery

Klein Tools Self-Leveling Green Planar Laser Level with 3 Orthogonal 360� Lines and 9-Hour Battery

Professional 3-beam laser alignment with rechargeable lithium-ion power

Klein Tools delivers professional-grade laser alignment with this self-leveling green planar laser level, featuring 3 orthogonal 360� lines for comprehensive X-, Y-, and Z-plane projection. The integrated rechargeable lithium-ion battery provides over 9 hours of continuous operation, while the IP54 water and dust resistant ABS housing ensures reliable performance in demanding work environments. Complete with magnetic mounting bracket, hard carrying case, and USB charging capability for professional versatility.

Professional Features & Benefits

• 3 Orthogonal 360� Planar Lines: Projects independent or combined X-, Y-, and Z-plane lines for comprehensive alignment of studs, concrete, tiles, and conduit installations.
• Green Laser Technology (510-530 nm): Delivers enhanced visibility and precision with bright green laser lines that are easier to see than traditional red lasers in various lighting conditions.
• 9-Hour Rechargeable Battery: Integrated lithium-ion battery pack provides extended runtime with convenient USB-A to USB-C charging for uninterrupted productivity.
• �3/16" per 33' Accuracy: Maintains professional-grade precision across the full 91-foot indoor and outdoor range for reliable measurement and alignment.
• IP54 Water and Dust Resistance: Rugged ABS housing construction withstands jobsite conditions while protecting internal components from environmental exposure.
• Integrated Magnetic Mounting: Rare earth magnets with 1/4-20 tripod threads provide versatile mounting options for hands-free operation on metal surfaces or standard tripods.
• Transit Locking Mechanism: Protects sensitive leveling components during transport and storage, ensuring consistent accuracy and extended tool life.

Technical Specifications

• Accuracy: +/-3/16" per 33' (+/-4.7 mm per 10 m)
• Application: Self-Leveling Laser Alignment Instrument
• Bag Or Case: Hard Carrying Case
• Batteries: Lithium-Ion
• Battery Life: 9 hr
• Department: Electrical
• Depth: 5.5000 in
• Height: 4.7400 in
• Included: Laser Level; Lithium-Ion Battery; USB-A to USB-C Cable; Magnetic Mounting Bracket; and Hard Carrying Case
• Indoor Range: 91' (28 m)
• Ingress Protection: IP54 - Water and Dust Resistant
• Laser Color: Green
• Laser Safety: �1mW Each Beam, Class 2 Laser Product
• Laser Wavelength: 510-530 nm
• Low Battery Indicator: Yes
• Magnet Type: Rare Earth Magnets
• Material: ABS Housing and Electronic Components
• Maximum Distance: 91' (28 m)
• Number Of Beams: 3
• Outdoor Range: 91' (28 m)
• Overall Height: 3.5" (1.4 cm)
• Overall Length: 5.5" (2.2 cm)
• Overall Width: 4.8" (1.9 cm)
• Plumb Laser: No
• Product Details: Self-Leveling Laser Level
• Product Group: Test & Measurement
• Product Subgroup: Environmental Meters
• Product Type: Self-Leveling Laser Level
• Pulse Mode: No
• Receiver: No
• Standard: EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
• Transit Locking Mechanism: Yes
• Weight: 1.8900 lbs
• Width: 3.4900 in

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical conduit and fixture alignment in commercial and residential installations
• Tile and flooring layout for precise pattern alignment
• Concrete form and structural alignment in construction projects
• HVAC ductwork and equipment positioning
• Framing and drywall installation alignment
• Plumbing rough-in and fixture placement
• General construction layout and measurement verification

Why Choose Klein Tools Quality?

Klein Tools delivers professional reliability with comprehensive safety certifications including EN61326-1:2013, EN60825-1:2014, and CFR compliance standards. The rugged IP54-rated construction and transit locking mechanism ensure consistent performance and extended service life, while the complete accessory package including hard carrying case provides professional-grade protection and convenience for demanding jobsite applications.
