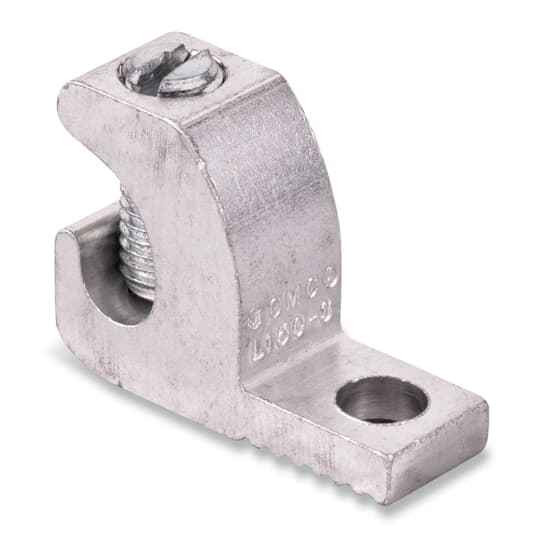

Blackburn Lay-In Grounding Lug #14 to 1/0 AWG Aluminum Conductor with Tin Plating

Blackburn Lay-In Grounding Lug #14 to 1/0 AWG Aluminum Conductor with Tin Plating

Professional mechanical grounding solution for reliable electrical connections

The Blackburn lay-in grounding lug provides secure mechanical grounding for aluminum conductors ranging from #14 to 1/0 AWG. Featuring tin plating for enhanced corrosion resistance and reliable electrical contact, this grounding device delivers professional-grade performance for electrical installations requiring dependable ground connections.

Professional Features & Benefits

• Wire Range #14 to 1/0 AWG: Accommodates multiple conductor sizes for versatile installation applications
• Aluminum Conductor Compatibility: Specifically designed for aluminum wire connections with optimal contact performance
• Tin Plating: Provides superior corrosion resistance and maintains reliable electrical contact over time
• Lay-In Design: Simplifies installation process with easy conductor placement and secure mechanical connection
• UL E9809 Listed: Meets rigorous safety and performance standards for professional electrical applications
• Mechanical Grounding Type: Delivers robust physical and electrical connection for grounding systems

Technical Specifications

• Country Of Origin: Mexico (MX)
• Department: Electrical
• Insulation Material: No
• Material Of Conductor: Aluminum
• Product Group: Wire Termination
• Product Subgroup: Lugs
• Product Type: Mechanical Grounding
• Selling Unit Of Measure: each
• Standards: UL E9809
• Type2: Grounding devices or assemblies

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical grounding systems
• Commercial building electrical installations
• Industrial facility grounding applications
• Electrical panel and equipment grounding
• Service entrance grounding connections
• Electrical contractor installations

Why Choose Blackburn Quality?

Blackburn grounding lugs deliver reliable performance with UL E9809 listing ensuring compliance with professional electrical standards. The tin plating provides long-term durability and corrosion resistance, while the mechanical grounding design ensures secure connections for critical electrical safety applications.
