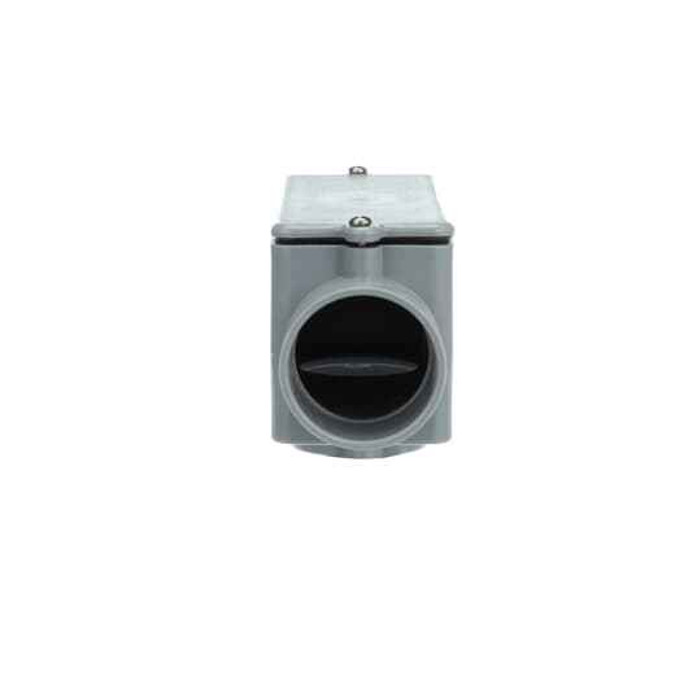

Carlon 1-1/2 Inch Gray PVC Type LB Conduit Body with Textured Lid
Professional-Grade 32 Cubic Inch Conduit Fitting Solution
The Carlon 1-1/2 Inch Gray PVC Type LB Conduit Body delivers professional-grade conduit fitting performance for Schedule 40 and 80 conduit applications. This PVC conduit body features a textured lid design and 32 cubic inch capacity designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand.
Professional Features & Benefits
Superior Construction Quality
- 32 Cubic Inch Capacity - Provides ample space for wire splicing and connections with professional reliability
- Textured Lid Design - Enhanced grip surface for secure installation and maintenance access in all conditions
- 1-1/2 Inch Hub Size - Perfect fit compatibility with Schedule 40 and 80 conduit systems for seamless integration
- Gray PVC Construction - Durable non-metallic material resists corrosion and provides long-lasting electrical performance
UL Listed Safety & Compliance
- UL e11461 Certification - Meets rigorous electrical safety standards for professional conduit system installations
- Code Compliant Design - Engineered to meet NEC requirements for conduit body applications in residential and commercial projects
- Type LB Configuration - Standard 90-degree pull configuration for directional wire routing and access in conduit runs
Technical Specifications
Hub Size: 1-1/2 inch for Schedule 40 and 80 conduit compatibility. Material: High-grade PVC construction. Volume: 32 cubic inches. Dimensions: 6-13/32 inch length x 2-1/2 inch width. UL Listed: e11461 certification. Color: Professional gray finish. Special Features: Textured lid for enhanced grip and access.
Installation Process
- Verify conduit compatibility with 1-1/2 inch hub size and Schedule 40/80 specifications for reliable connection
- Apply appropriate PVC cement to conduit end and hub interior following manufacturer specifications
- Insert conduit firmly into hub opening ensuring complete seating for secure mechanical connection
- Allow proper cure time per cement manufacturer recommendations before wire pulling operations
- Install wires through conduit body using proper pulling techniques to prevent damage
- Secure textured lid after wire installation ensuring weatherproof seal and code compliance
Professional Applications
Ideal for:
- Residential Wiring Systems - Home electrical conduit runs requiring directional changes and wire access points
- Commercial Electrical Projects - Office buildings, retail spaces, and industrial facilities with Schedule 40/80 conduit systems
- Conduit Direction Changes - 90-degree turns in conduit runs where wire pulling access is required
- Wire Splicing Applications - Junction points requiring 32 cubic inch capacity for safe wire connections
- Outdoor Electrical Installations - Weather-resistant PVC construction suitable for exterior conduit systems
- Underground Conduit Systems - Buried electrical runs requiring corrosion-resistant conduit body fittings
- Industrial Electrical Systems - Manufacturing and processing facilities with heavy-duty conduit requirements
- Maintenance Access Points - Strategic locations in conduit runs requiring periodic wire access and inspection
PVC Construction Advantage
Carlon PVC conduit bodies offer superior corrosion resistance compared to metallic alternatives, making them ideal for harsh environments, underground installations, and coastal applications. The non-metallic construction eliminates galvanic corrosion concerns while providing excellent chemical resistance and long-term durability in electrical conduit systems.
Why Choose Carlon Quality?
Carlon demonstrates unwavering commitment to UL Listed safety standards, reliable electrical performance, and strict code compliance for electrical professionals. Every conduit body undergoes rigorous testing to ensure consistent quality, proper fit, and long-term reliability in demanding electrical applications, making Carlon the trusted choice for contractors nationwide.
Manufacturer Resources
Product Specs
- Application:
- For use with Schedule 40 and 80 Conduit
- Color:
- Gray
- Hub Size:
- 1-1/2 in
- Material:
- PVC
- Product Name:
- PLASTIC FITTINGS
- Product Net Depth Length:
- 6-13/32 in
- Product Net Width:
- 2-1/2 in
- Product Type:
- Type LB Conduit Body
- Selling Unit Of Measure:
- each
- Special Functions:
- Textured lids
- Standards:
- UL e11461
- Product Group:
- Conduit Systems
- Department:
- Electrical
- Product Sub group:
- Conduit & Components
- Product Type2:
- Electrical conduit fitting body
