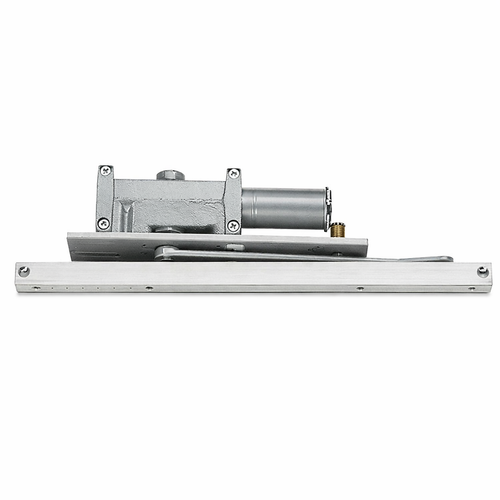

LCN 2011 Concealed Heavy Duty Single Lever Track Closer - Powder Coat Finish

(No reviews yet) Write a Review

Model: 2011-STDTRK-AL-RH
$944.00
$567.50
Selected Finish is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$944.00
$567.50
Adding to cart… The item has been added
This item qualifies for Free Shipping!
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

2011 Concealed in Frame, Heavy Duty Single Lever High Security

The Concealed 2010 Series is a Heavy Duty Closer designed to provide complete concealment. The Single Lever Arm and roller assembly provide smooth, quiet Door control and the choice of finishes and track functions meet virtually all architectural requirements.

Overview

The 2010 and 5010 Series are heavy-duty Closers that are Concealed and designed for institutional, high-traffic and other installations exposed to weather or abuse. The 2010 Series is Concealed in the Door frame with the track Concealed in the door. The 5010 Series is Concealed in the frame with the Double-lever Arm exposed. Both the 2010 and 5010 Series meet ANSI/BHMA A156.4 Grade 1 standards and the American Disabilities Act (ADA) reduced opening force requirements. The single-lever Arm and roller assembly for the 2010 Series and the Double-lever Arm for the 5010 Series provide smooth, quiet Door control and the choice of finishes, while the track, cylinder and Arm functions meet virtually all architectural requirements.

The 2010 and 5010 Series are ideal for Interior and exterior aluminum, hollow metal and wood doors and frames. Both Series feature separate regulation of general closing speed and latching speed. Both the 2010 and 5010 Series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year warranty. Materials for both Series include a forged steel main Arm, high strength cast iron cylinder, one-piece forged steel piston, all-weather fluid, tamper-resistant regulating screws and a full-complement, low-friction bearing.

Body construction

  • Cast iron cylinder
  • Full-complement bearing
  • 1-1/2” diameter piston

Quality and durability

  • All-weather fluid
  • Forged steel Arm
  • 15-year warranty

Installation

  • Handed design for right- and left-swinging doors
  • Wood and machine screw pack
  • Adjustable Spring sizes 1-6

Specifications

  • Sized cylinders for Interior doors to 5’0” and exterior doors to 4’0”
  • Meets ADA requirements
  • UL and cUL listed for self-closing doors without hold-open
  • Tested and certified under ANSI/BHMA A156.4 Grade 1
  • For hollow metal or wood doors and frames

Designs and Finishes

  • Standard or optional custom powder coat finish
  • Optional plated finish on Metal Cover, Arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only

Mounting/Arm Options

The 2010 Series mounts Concealed in the Door frame with the track and Arm Mounted on the surface. The 5010 Series mounts Concealed in the Door frame with an exposed Arm. Visit the 2010/5010 Series catalog pages for complete mounting details, Arm options and accessories.

Downloads and Resources

Manufacturer Resources

Product Specs

Category:
Door Controls
Series:
2010 Series
ADA Compliant:
Yes
BAA Qualified:
Yes
Default Arm/Track:
Standard Arm (STDTRKARM)
Warranty:
15 Year
Mounting:
Concealed
Closer Size:
1
Duty Level:
Heavy Duty
Subcategory:
Concealed Closers
Mounting Location:
In Frame
Product Group:
Door Controls
Product Subgroup:
Door Closers - Overhead Concealed
Product Type:
Overhead Concealed Closers
Mounting Detail:
Concealed - In Frame
Door Type:
Interior/Exterior Door
Finish Type:
Powder Coat
Fluid Type:
All-Weather
Door Opening:
90 Degrees
Delayed Action:
No
Fasteners:
Wood and Machine Screws
Substrate:
Iron
Commercial/Residential:
Commercial
Handle Type:
Lever
Model:
2011
