LCN 8310-3836T Hard Wired Full...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,824.00
$841.95

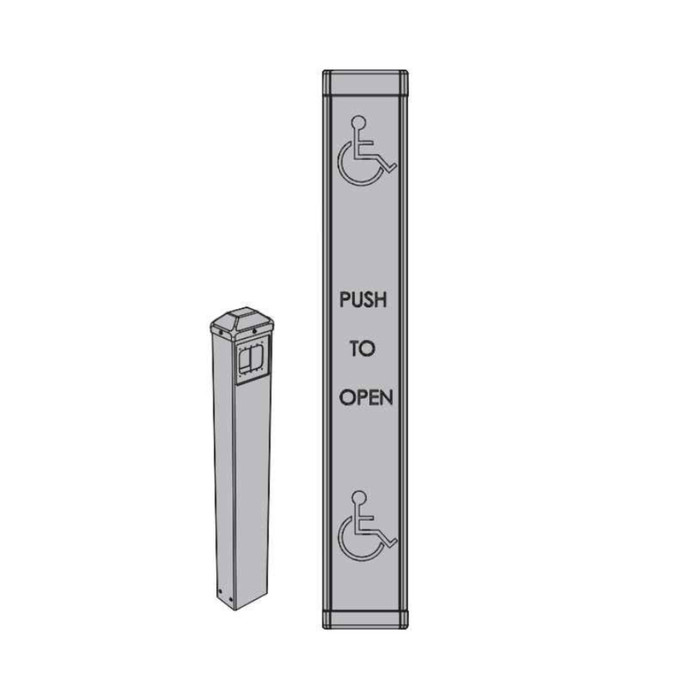

LCN 8310-3836T Hard Wired Full Length Actuator with Bollard Package 36" x 6" ADA Compliant Handicap Symbol

LCN 8310-3836T Hard Wired Full Length Actuator with Bollard Package 36" x 6" ADA Compliant Handicap Symbol

(No reviews yet) Write a Review

Model: 8310-3836T-695
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,824.00
$841.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 8310 Series Hard Wired Full Length Actuator with Bollard Package 36" x 6" ADA Compliant Handicap Symbol

Professional Touchless Access Control Solution

The LCN 8310-3836T combines a hardwired low voltage actuator with stainless steel touch plate featuring a 36" x 6" activation surface and blue handicap symbol that conforms with most accessibility codes. This complete package includes a powder coated steel 42" x 4" x 6" bollard post with mounting base pre-prepped for installation. Designed to meet California building codes and increase accessibility for wheelchair bound entrants, this system provides versatile mounting options for enhanced commercial accessibility.

Professional Features & Benefits

  • Large Activation Surface: 36" x 6" stainless steel touch plate provides ample activation area for enhanced accessibility and ease of use in commercial applications.
  • ADA Compliant Design: Blue handicap symbol conforms with most accessibility codes and includes "PUSH TO OPEN" lettering for enhanced identification and compliance.
  • Complete Bollard Package: Includes powder coated steel 42" x 4" x 6" bollard post with mounting base pre-prepped for the 8310-836T actuator installation.
  • Durable Stainless Steel Construction: Stainless steel touch plate construction provides rugged performance for high-traffic commercial applications and weather resistance.
  • Versatile Mounting Options: Can easily be mounted to any flat surface or bollard post for flexible installation configurations to meet site requirements.
  • Code Compliance: Designed to meet California building codes and increase accessibility for wheelchair bound entrants in commercial facilities.
  • Complete Installation Kit: Includes 8310-866CAP, 2 mounting screws and spacer for complete installation package with all necessary components.
  • Finish Options Available: Bollard post available in 689 Aluminum or 695 Dark Bronze finishes to match facility aesthetics and design requirements.

Technical Specifications

  • ADA Compliant: Yes
  • Application: For Use With Power Operators Requiring Dry Contact, Full Length Actuator/Bollard
  • Battery Operated: No
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Display Text: Push To Open
  • Electronic: Yes
  • Mounting Method: Surface Mount
  • Package: No
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Color: Blue
  • Product Group: Electronic Access Controls
  • Product Model: 8310-3836T
  • Product Shape: Rectangle
  • Product Subgroup: Parts and Accessories
  • Product Substrate: Stainless Steel
  • Product Type: Door Actuators & Plates
  • Relay Action: Momentary (MOM)
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories
  • Symbol: Handicap
  • Touchless Activation: No
  • Weather Resistant: Yes

Professional Applications

  • Commercial Building Accessibility Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Government and Municipal Buildings
  • Industrial Facility Access Points
  • Multi-Tenant Residential Properties
  • Retail Establishment Entry Systems

Why Choose LCN Quality?

LCN actuator products deliver professional-grade reliability with stainless steel construction and weather-resistant design rated for demanding commercial applications. The 8310 Series touchless actuators are engineered as part of Allegion's comprehensive auto operator solutions, providing health and well-being benefits by eliminating contact requirements while ensuring ADA compliance. Engineered for demanding commercial applications where dependable performance and accessibility compliance are essential.

Product Specs

Series:
8310 Series
Display Text:
Push To Open
Relay Action:
Momentary (MOM)
Symbol:
Handicap
Application:
For Use With Power Operators Requiring Dry Contact, Full Length Actuator/Bollard
Touchless Activation:
No
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Weather Resistant:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Battery Operated:
No
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Package:
No
Product Model:
8310-3836T
Product Color:
Blue
Mounting Method:
Surface Mount
Product Shape:
Rectangle
Product Category:
Electronic Access Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

LCN 8310-3836T-695 – Frequently Asked Questions

1) What does the LCN 8310-3836T actuator package actually include, and do I need anything else to mount it?
The 8310-3836T ships as a complete post-mount package: a 36 x 6 inch stainless steel touch plate with the blue handicap symbol and PUSH TO OPEN lettering, a powder coated steel bollard post measuring 42 x 4 x 6 inches with a mounting base already prepped for the actuator, plus the 8310-866CAP, two mounting screws and a spacer. What is not in the box is the site work: the concrete pad or anchors for the bollard, the low voltage wire run back to the operator, and the power operator itself. It is a hardwired unit, no batteries.
2) Will the LCN 8310 hardwired actuator work with my automatic door operator?
It works with any low energy power operator that takes a dry contact input. The plate is a hardwired momentary switch, so closing the contact sends a single open command and the operator's own timer runs the cycle. If your operator expects a dry contact activation, this drops right in. If it needs a powered or coded input rather than a simple contact closure, this is not the actuator for it.
3) Does the LCN 8310-3836T meet accessibility code requirements for a handicap entrance?
The actuator is built as an ADA compliant device and carries the blue International Symbol of Accessibility along with PUSH TO OPEN text. LCN states the design meets California building code for increasing accessibility for wheelchair users. Note that code compliance for the opening also depends on where you set the bollard relative to the door swing and how the operator is adjusted, which is a site condition, not a property of the plate.
4) Is the LCN 8310-3836T a touchless wave-to-open sensor?
No. This is a mechanical push plate, contact required. If you are specifying a no-touch entry for a healthcare or food service facility, this is the wrong device and you want a wave or proximity actuator from the 8310 touchless range instead. The 8310-3836T is the right pick where you want a physical plate people can lean into and that will not false-trigger from passing traffic.
5) What is the difference between the LCN 8310-3836T actuator and a Camden CM-45 square push plate switch?
They activate the same way but cover very different amounts of the opening. The LCN 8310-3836T is a full length 36 inch by 6 inch stainless steel touch plate with a blue handicap symbol and PUSH TO OPEN lettering, mounted on a 42 inch bollard post, wired for a momentary dry contact to a power operator. The Camden CM-45 is a 4-1/2 inch square push plate switch available wired or with a kinetic wireless transmitter. Choose the 8310-3836T where a wheelchair user needs a tall strike surface reachable from a seated position without aiming at a small plate; choose the CM-45 where a compact plate on a wall or jamb is what the opening calls for, or where running wire is the problem and the wireless transmitter version solves it.
6) I need an actuator for an interior opening where a bollard will not fit. What should I use instead of the LCN 8310-3836T?
The 8310-3836T is built around a surface mounted full length plate and a 42 inch bollard post set out in front of the door, which needs clear floor area. Where that footprint is not available, the Camden CM-45 4-1/2 inch square push plate switch mounts as a compact plate instead, and it is offered wired or with a kinetic wireless transmitter if there is no path for conduit. If the plate is going on the jamb rather than a bollard, the Falcon 8310-819F rugged plastic actuator mounting box is a 1-1/2 inch by 4-3/4 inch rectangle box for jamb and flush mount applications.
7) Is the Falcon 8310-819F an alternative to the LCN 8310-3836T?
No, and the shared 8310 series designation is what makes this worth checking. The Falcon 8310-819F is a rugged plastic actuator mounting box, 1-1/2 inch by 4-3/4 inch, for jamb and flush mount. It is an enclosure that an actuator goes into. The LCN 8310-3836T is the actuator itself, a 36 inch by 6 inch stainless steel touch plate with the handicap symbol, supplied with a bollard post, mounting base pre-prepped for it, the 8310-866CAP, two mounting screws and a spacer. Ordering the 819F when you need something for a wheelchair user to push leaves you with a box and no plate.
8) Can I mount the 36 inch LCN full length actuator on a wall instead of the bollard?
Yes. The 36 x 6 inch touch plate is a surface mount unit and goes on any flat surface, so a wall or jamb face works as well as the supplied post. Buying the 3836T package makes sense when there is no wall in the approach path, which is the usual reason for a bollard: an exterior entry, a vestibule with glass on both sides, or a curb-side approach where the button has to stand on its own.
9) Is the LCN 8310 bollard actuator rated for outdoor use?
It is a weather resistant assembly built for exterior work: stainless steel touch plate and a powder coated steel post. That is what makes it usable at a parking-lot approach or an uncovered entry rather than only in a lobby.
10) Is a 36 x 6 inch push plate overkill, or is there a reason to go full length instead of a small square button?
The full length plate exists for approach, not looks. A 36 inch tall activation strip can be struck anywhere along its height, so a wheelchair user, someone pushing a cart, or a person with a hip or forearm hits it without aiming for a 4 inch target. On high traffic openings that is the difference between one press and three. If the approach is controlled and users can reach a fixed point, a compact plate does the same electrical job in less space, for example the Camden CM-45 Series 4-1/2 inch square push plate switch.
11) I need to standardize handicap actuators across a whole campus. Does the 8310 line cover both bollard and jamb mounted locations?
It does, and that is the practical reason to standardize on 8310. The 3836T covers open approaches with its own post, while interior and jamb locations in the same series take a mounting box such as the Falcon 8310-819F, a 1-1/2 x 4-3/4 inch rectangle box for jamb and flush mount. Same series logic, same dry contact wiring to the operator, so your electricians and your spare parts stay consistent building to building.
12) What happens at the door when someone presses the LCN 8310 plate, and can it be left holding the door open?
Press and release gives one momentary contact closure. The plate does not latch or hold, so it cannot prop the operator open, and the door cycles for whatever hold-open time is set on the operator. If you need a door to stay open for deliveries or a move-in, that is a function of the operator or a separate hold-open control, not this actuator.
13) What finishes does the LCN 8310 bollard come in, and can I match it to existing site hardware?
Two finishes on the bollard package: 689 aluminum and 695 dark bronze. 689 is the standard painted aluminum that matches most storefront and operator covers; 695 dark bronze pairs with bronze anodized entrances and bronze site furnishings. The touch plate itself is stainless steel with the blue symbol, so the finish choice is about the post.
14) Is the LCN 8310-3836T suitable for a residential apartment door, or is it commercial only?
It is a commercial grade device. In multi-tenant residential it belongs at the building entrance, lobby vestibule, or common area doors on a power operator, not on an individual unit door. Those interior unit doors rarely have an operator for it to trigger, and without a power operator taking a dry contact the plate does nothing.
