LCN 8310-3852TWS 6" Round Wireless Touchless Actuator with Handicap Symbol and Push To Open Text - Complete System Kit

LCN 8310-3852TWS 6" Round Wireless Touchless Actuator with Handicap Symbol and Push To Open Text - Complete System Kit

(No reviews yet) Write a Review

Model: 8310-3852TWS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$930.00
$704.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 6" Round Wireless Touchless Actuator with Handicap Symbol and Push To Open Text - Complete System Kit

Professional Touchless Access Control Solution

The LCN 6" Round Wireless Touchless Actuator provides hands-free door activation for enhanced hygiene and accessibility compliance. This complete wireless system includes the 8310-852T actuator with handicap symbol and "Push To Open" text, 8310-844 transmitter, 8310-869S surface mounting box, and 8310-802 weather/trim ring. Advanced motion sensing technology detects hand waves to activate door operation without physical contact requirements, making it ideal for ADA compliance applications.

Professional Features & Benefits

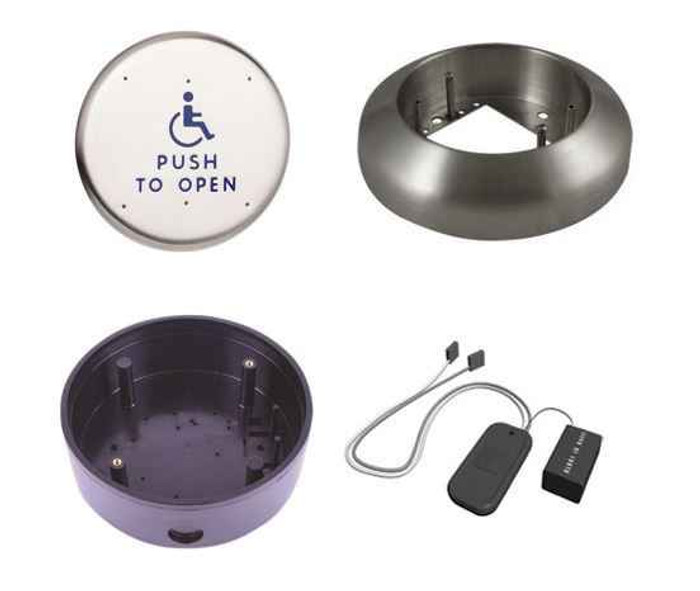

  • Complete System Kit: Includes 8310-852T actuator, 8310-844 transmitter, 8310-869S surface mounting box, and 8310-802 weather/trim ring for comprehensive installation.
  • Touchless Motion Detection: Advanced sensing technology detects hand waves to activate door operation without physical contact requirements for enhanced hygiene.
  • ADA Compliance Ready: Features handicap symbol and "Push To Open" text for accessibility compliance and clear user guidance.
  • 6" Round Design: Professional round form factor provides clear visibility and intuitive operation for all users in commercial environments.
  • Wireless Operation: Eliminates complex wiring requirements while maintaining reliable communication with compatible 8310-865 receivers.
  • Weather-Resistant Construction: Integrated weather protection and finished appearance for both indoor and outdoor applications.
  • Flexible Mounting Options: Surface and wall mount capability accommodates various installation requirements and architectural constraints.
  • 8310 Series Integration: Compatible with 8310-865 receiver (sold separately) for complete automatic door operator integration.

Technical Specifications

  • ADA Compliant: Yes
  • Application: Actuator
  • Box: 8310-869S
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Display Text: Push To Open
  • Electronic: Yes
  • Mounting Method: Surface Mount
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Color: Blue
  • Product Dimension: 6"
  • Product Group: Electronic Access Controls
  • Product Model: 8310-3852TWS
  • Product Shape: Round
  • Product Subgroup: Parts and Accessories
  • Product Type: Door Actuators & Plates
  • Relay Action: Momentary (MOM)
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories
  • Symbol: Handicap
  • Touchless Activation: No
  • Transmitter: 8310-844
  • Weather Resistant: Yes
  • Wireless Communication: Yes

Professional Applications

  • Healthcare Facility Access Control
  • Commercial Building Automatic Door Systems
  • Educational Institution Accessibility Compliance
  • Retail Establishment Entry Systems
  • Government and Municipal Building Access
  • Industrial Facility Touchless Entry
  • Multi-Tenant Residential Accessibility

Why Choose LCN Quality?

LCN touchless actuator systems deliver professional-grade reliability with advanced motion sensing technology designed for demanding commercial applications. The 8310 Series represents proven engineering for high-use environments where dependable touchless operation and accessibility compliance are essential. Complete system integration ensures optimal performance with automatic door operators for reliable hands-free access control.

Product Specs

Series:
8310 Series
Box:
8310-869S
Display Text:
Push To Open
Relay Action:
Momentary (MOM)
Symbol:
Handicap
Transmitter:
8310-844
Application:
Actuator
Touchless Activation:
No
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Weather Resistant:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Wireless Communication:
Yes
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-3852TWS
Product Color:
Blue
Product Dimension:
6"
Mounting Method:
Surface Mount
Product Shape:
Round
Product Category:
Electronic Access Controls
Department:
Door Hardware

LCN 8310-3852TWS – Frequently Asked Questions

1) What comes in the LCN 8310-3852TWS actuator kit, and do I need anything else to make the door open?
The kit is built around the 6 inch round 8310 Series actuator and ships with the 8310-844 wireless transmitter, the 8310-869S mounting box, and a weather/trim ring. What it does not include is the receiver: you need the 8310-865 receiver, ordered separately, to pass the signal to the automatic door operator. So plan on the receiver plus a low energy operator already on the door.
2) Can I install this LCN 8310 actuator without running wire back to the door operator?
That is the point of the wireless version. The actuator pairs with the included 8310-844 transmitter and communicates to an 8310-865 receiver at the operator, so there is no low voltage run from the push point back to the header. You still need power arrangements handled at the actuator location per the installation instructions, but no control wiring across the opening. Useful on retrofits where the wall or floor cannot be opened up.
3) Does the LCN 8310-3852TWS actuator have the wheelchair symbol required for an accessible entrance?
It carries the handicap symbol along with Push To Open text, and is listed as ADA compliant. The face is blue, which is the convention building occupants read as an accessible entry control. That combination is what most healthcare, school, and municipal specs are asking for at an accessible opening.
4) Can I use this LCN actuator to trigger a door that only has a manual closer on it?
No. This is a push point for an automatic door operator, and it only signals a receiver connected to that operator. On a door with a standard manual closer and no power operator, there is nothing for it to activate. You would need a low energy operator installed on the opening first.
5) What is the difference between the LCN 8310-3852TWS actuator kit and the Camden CM-45 push plate switch?
The LCN 8310-3852TWS is a 6 inch round wireless actuator with the handicap symbol and Push To Open text, supplied with the 8310-844 transmitter and set up for surface mounting. The Camden CM-45 is a 4-1/2 inch square push plate switch offered wired or with a kinetic wireless transmitter. So the decision is round 6 inch versus square 4-1/2 inch, and whether you want a wired option at all - the LCN kit is wireless.
6) Is the Falcon 8310-819F mounting box a substitute for the LCN 8310-3852TWS kit?
No. The Falcon 8310-819F is a rugged plastic actuator mounting box measuring 1-1/2 inch by 4-3/4 inch for jamb and flush mount - it is an enclosure only, with no actuator or transmitter. The LCN 8310-3852TWS is the complete package: the actuator itself plus the 8310-844 transmitter and the 8310-869S box. Both are 8310 Series parts, so the Falcon box is a companion or alternate enclosure, not a replacement for the kit.
7) Will this LCN actuator mount on a block wall or a finished wall surface, or does it need to be recessed?
Surface mount. The 8310-869S box that ships with it sits on the wall face, so there is no back box cut-in required, and the weather/trim ring finishes the edge. That makes it workable on masonry, tile, and existing finished walls where cutting a recess is not practical.
8) Can this 6 inch round actuator go on an exterior entrance?
Yes, it is rated weather resistant and the kit includes the weather/trim ring for outdoor use, so it can serve the exterior side of a vestibule or main entrance. The same unit works indoors, which lets you run one actuator part number on both sides of a vestibule instead of stocking two.
9) Does this actuator hold the door open, or does it just trigger one cycle?
Momentary action. Each activation sends a single momentary signal, and the operator runs its own open and hold-open timing before closing. It is not a maintained or latching switch, so it will not hold the door open until someone presses it again. If you need a hold-open or toggle behavior, that has to come from the operator control, not from this actuator.
10) I have a narrow jamb and no room for a 6 inch round plate. What else can I use?
Six inches round needs a fair bit of flat wall. On a tight jamb, the Falcon 8310-819F rugged plastic actuator mounting box is a 1-1/2 x 4-3/4 inch rectangle made for jamb and flush mounting in the same 8310 Series family. If you want a square push plate instead, the Camden CM-45 Series is 4-1/2 inches square and comes wired or with a kinetic wireless transmitter.
11) I need a narrow actuator for a jamb or flush mount rather than a 6 inch round surface plate - what are my options?
The LCN 8310-3852TWS is a 6 inch round unit configured for surface mount, which needs a broad flat face of wall or mullion. Where the mounting location is a narrow jamb or requires a flush recess, the Falcon 8310-819F actuator mounting box is a 1-1/2 inch by 4-3/4 inch rectangle intended for jamb and flush mount, and it is also an 8310 Series part.
12) For an exterior entrance, does the Camden CM-45 or the LCN 8310-3852TWS suit better?
The LCN 8310-3852TWS is listed as weather resistant and ships with the 8310-802 weather and trim ring, which is why it is commonly specified on exterior-facing pushes as well as interior. The Camden CM-45 is a 4-1/2 inch square push plate switch; for an outdoor location confirm the weather requirement against the switch you select. On grade and rating, the CM-45 carries no fire rating.
13) Is this a commercial-grade actuator or something for a house?
It is a commercial product in the LCN 8310 Series, intended for automatic operator openings in healthcare, education, retail, government, and multi-tenant residential buildings. It is an electronic access control device, not a residential doorbell-style push.
