LCN 8310-3852WS 6" Round Wireless Touchless Actuator with Handicap Symbol and Push to Open Text - Complete System with Surface Mount Box

LCN 8310-3852WS 6" Round Wireless Touchless Actuator with Handicap Symbol and Push to Open Text - Complete System with Surface Mount Box

(No reviews yet) Write a Review

Model: LCN-8310-3852WS-83

In Stock (leaves warehouse same day if ordered before 3pm ET)

$930.00
$673.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 6" Round Wireless Touchless Actuator with Handicap Symbol and Push to Open Text - Complete System with Surface Mount Box

Professional Touchless Access Control Solution

The LCN 6" round wireless touchless actuator provides hands-free door activation for enhanced hygiene and accessibility compliance. This complete wireless system includes the 8310-852 actuator, 8310-844 transmitter, 8310-869S surface mount box, and 8310-802 weather/trim ring for comprehensive installation flexibility. Part of LCN's 8310 Series touchless actuator family, this unit features handicap symbol and push to open text for clear user guidance and ADA compliance applications with stainless steel construction for professional durability.

Professional Features & Benefits

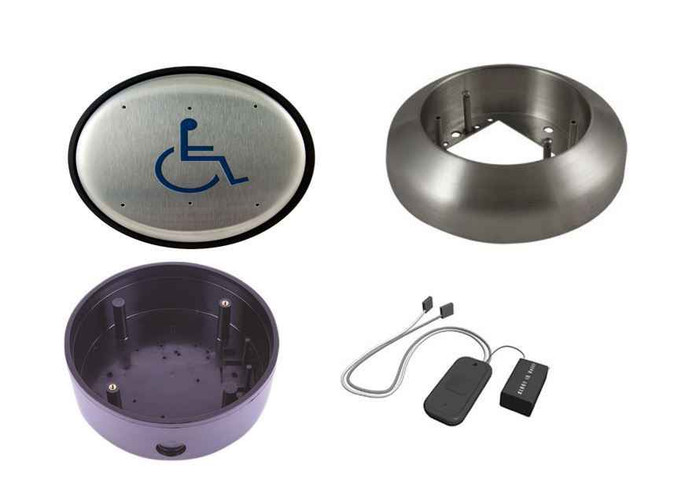

  • Complete Wireless System: Includes 8310-852 actuator, 8310-844 transmitter, 8310-869S surface mount box, and 8310-802 weather/trim ring for comprehensive installation flexibility.
  • 6" Round Design: Professional appearance with handicap symbol and push to open text for clear user identification and accessibility compliance in commercial applications.
  • Touchless Motion Detection: Pedestrians simply wave their hand in front of the wall plate for hands-free activation without contact with actuator, door handle, or push bar.
  • Wireless Communication: Eliminates wiring requirements between actuator and door operator while maintaining reliable communication (requires 8310-865 receiver, sold separately).
  • Versatile Mounting Options: Surface and wall mount configurations with included surface box and weather/trim ring for various installation requirements.
  • Professional Grade Construction: Stainless steel substrate with weather-resistant design for demanding commercial auto operator applications.
  • Health and Safety Focus: Promotes hygiene and well-being by eliminating contact points that traditional push buttons require.
  • ADA Compliant Design: Meets accessibility requirements with clear handicap symbol and push to open text for universal user recognition.

Technical Specifications

  • ADA Compliant: Yes
  • Application: Actuator
  • Box: 8310-869S
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Mounting Method: Wall Mount
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Color: Blue
  • Product Dimension: 6"
  • Product Group: Electronic Access Controls
  • Product Model: 8310-3852WS
  • Product Shape: Round
  • Product Subgroup: Parts and Accessories
  • Product Substrate: Stainless Steel
  • Product Type: Door Actuators & Plates
  • Relay Action: Momentary (MOM)
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories
  • Symbol: Handicap
  • Touchless Activation: No
  • Transmitter: 8310-844
  • Weather Resistant: Yes
  • Wireless Communication: Yes

Professional Applications

  • Healthcare Facility Access Control
  • Commercial Building Accessibility Compliance
  • Educational Institution Safety Systems
  • Retail Establishment Entry Points
  • Government and Municipal Buildings
  • Industrial Facility Clean Environments
  • Multi-Tenant Residential Properties

Why Choose LCN Quality?

LCN touchless actuator systems deliver professional-grade reliability as part of Allegion's comprehensive auto operator solutions. The 8310 Series features flush mounted design that is aesthetically pleasing and less susceptible to accidental damage, with customizable features including visual and audible signaling. Engineered for demanding commercial applications where dependable touchless operation and accessibility compliance are essential.

Product Specs

Series:
8310 Series
Box:
8310-869S
Relay Action:
Momentary (MOM)
Symbol:
Handicap
Transmitter:
8310-844
Application:
Actuator
Touchless Activation:
No
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Weather Resistant:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Wireless Communication:
Yes
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-3852WS
Product Color:
Blue
Product Dimension:
6"
Mounting Method:
Wall Mount
Product Shape:
Round
Product Category:
Electronic Access Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

LCN LCN-8310-3852WS-83 – Frequently Asked Questions

1) Does the LCN 8310-3852WS wireless touchless actuator work on its own, or do I need a receiver too?
The 8310-3852WS kit covers the wall side of the job only: the 8310-852 actuator, the 8310-844 transmitter, the 8310-869S surface mount box, and the 8310-802 weather/trim ring. To get the signal to the door operator you also need the 8310-865 receiver, which is not part of this kit. Budget for that receiver on every opening, or the actuator has nothing to talk to.
2) Can I mount an LCN 6 inch round actuator on a wall where I can't run conduit or fish wire?
That is the reason to pick the wireless version. The 8310-3852WS communicates wirelessly from the wall plate back to the door operator, so there is no wire run between the actuator location and the operator. It ships with the 8310-869S surface mount box, so you can land it on a finished block or concrete wall without cutting in a back box. You still have to get the receiver connected at the operator end.
3) Will an LCN 8310 wireless actuator hold the door open, or does it just trigger a cycle?
Momentary action. The relay in the 8310-3852WS closes for an instant when someone waves at the plate, which tells the operator to run one open cycle and then time out and close on its own settings. It is not a maintained or latching switch, so it cannot be used to hold a door open or to toggle a door into an unlocked state.
4) What is the difference between the LCN 8310-3852WS actuator and the Falcon 8310-819F when ordering for a touchless opening?
They are not interchangeable. The LCN 8310-3852WS is the actuator itself - a 6 inch round stainless steel wall mount plate with a handicap symbol, wireless communication, and a momentary relay action, supplied with the 8310-869S surface mount box and the 8310-844 transmitter. The Falcon 8310-819F is a rugged plastic actuator mounting box only, 1-1/2 inch by 4-3/4 inch rectangle for jamb and flush mount, with no switch or transmitter in it. Order the 8310-819F when you need a jamb-mounted rectangular housing for a narrow-profile actuator; order the 8310-3852WS when you need the pushless plate and its wireless transmitter. Both are 8310 Series parts.
5) Can the LCN 8310-3852WS actuator go outside on an exterior entrance?
Yes. The 6 inch round plate is built on a stainless steel substrate and is rated weather resistant, and the kit includes the 8310-802 weather/trim ring for the exterior side of the opening. That combination is what makes it suitable for the outside actuator on a vestibule or main entrance rather than interior-only use.
6) Do you have to touch the LCN 8310-3852WS plate to open the door?
No contact needed. A user waves a hand in front of the 6 inch round plate and the door operator runs, so nobody touches the plate, the door handle, or the push bar. That is what facilities want in patient areas, restrooms, and food handling spaces where a conventional push button is a shared touch point. The blue plate carries the handicap symbol and Push to Open text so users know what it is without instruction.
7) Will a 6 inch round LCN actuator match the existing handicap push plates on my other doors?
Visually it will read the same to a user, blue with the handicap symbol and Push to Open text, but it is a 6 inch round plate. If the rest of the building is running square 4-1/2 inch plates the shapes will not match up. Camden's CM-45 Series is a 4-1/2 inch square push plate switch, available wired or with a kinetic wireless transmitter, if squares are what you are standardizing on across the property.
8) Should I use a wireless touchless actuator or a hardwired push plate for a new automatic door?
Cost of the wire run usually decides it. If the actuator is going across an opening, on the far side of a corridor, or on masonry where a conduit chase means real labor, the wireless 8310-3852WS pays for itself, since the plate talks to the operator over the air and only the 8310-865 receiver has to be wired in at the operator. If you already have conduit to the actuator location, a wired push plate is the simpler part count. Camden's CM-45 Series is offered either way, wired or with a kinetic wireless transmitter.
9) Is the LCN 8310-3852WS actuator ADA compliant for a public building entrance?
The unit is listed as ADA compliant and carries the handicap symbol with Push to Open text, which is the user-facing marking an accessible entrance actuator needs. It is a commercial-duty device, used on healthcare, education, government, retail, and multi-tenant residential entrances. The actuator is one piece of the compliant opening; the operator behind it and the mounting height on your opening are what complete it.
10) What exactly do I order to add a touchless actuator to an existing LCN automatic operator?
One 8310-3852WS gets you the plate, transmitter, surface box, and weather ring for a single actuator position, plus an 8310-865 receiver at the operator. Openings normally need two actuators, one on each side, so count positions before ordering. Model number to quote is 8310-3852WS in the 8310 Series.
11) Is the Camden CM-45 a direct substitute for the LCN 8310-3852WS wireless actuator?
They serve the same purpose - activating a low energy operator without a hard-wired run - but they are different parts. The Camden CM-45 Series is a 4-1/2 inch square push plate switch offered either wired or with a kinetic wireless transmitter, so the wireless version is a physical push plate that generates its own signal on press. The LCN 8310-3852WS is a 6 inch round stainless steel plate with wireless communication and a momentary relay action, shipped with the 8310-844 transmitter and the 8310-869S surface mount box, and it carries the handicap symbol. If the opening is specified for the 8310 Series receiver and transmitter pairing, the CM-45 is a different system, not a drop-in plate swap.
12) For an exterior entrance, does the LCN 8310-3852WS or the Camden CM-45 suit better?
The LCN 8310-3852WS is built for exterior duty: it is weather resistant, uses a stainless steel substrate, and comes with the 8310-869S surface mount box for surface applications on masonry or where no back box exists. The Camden CM-45 Series is a 4-1/2 inch square push plate switch offered wired or with a kinetic wireless transmitter, and it is not fire rated. For an exposed exterior actuator position, the weather resistant stainless LCN unit is the one specified for that condition.
13) I need a flush mounted actuator box rather than a surface box - what do I order?
The Falcon 8310-819F is a rugged plastic actuator mounting box sized 1-1/2 inch by 4-3/4 inch for jamb and flush mount, which is the flush option in the 8310 Series. The LCN 8310-3852WS is supplied instead with the 8310-869S surface mount box, which sits proud of the wall for retrofits where cutting into the wall is not practical. Both are 8310 Series parts, so choose by whether the wall or jamb is being opened up.
