LCN 8310-3856TWF 4-1/2" Round Wireless Touchless Actuator with Wall Mount and Flush Installation Kit

LCN 8310-3856TWF 4-1/2" Round Wireless Touchless Actuator with Wall Mount and Flush Installation Kit

(No reviews yet) Write a Review

Model: 8310-3856TWF

In Stock (leaves warehouse same day if ordered before 3pm ET)

$816.00
$618.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 8310 Series 4-1/2" Round Wireless Touchless Actuator with Wall Mount and Flush Installation Kit

Professional Touchless Access Control Solution

The LCN 8310 Series wireless touchless actuator provides contactless door operation with a simple hand wave motion. This 4-1/2" round unit features wireless technology for flexible installation and includes complete mounting hardware for both wall mount and flush applications. The system promotes health and well-being by eliminating the need for physical contact with door handles, push bars, or traditional actuators, making it ideal for commercial automatic door applications.

Professional Features & Benefits

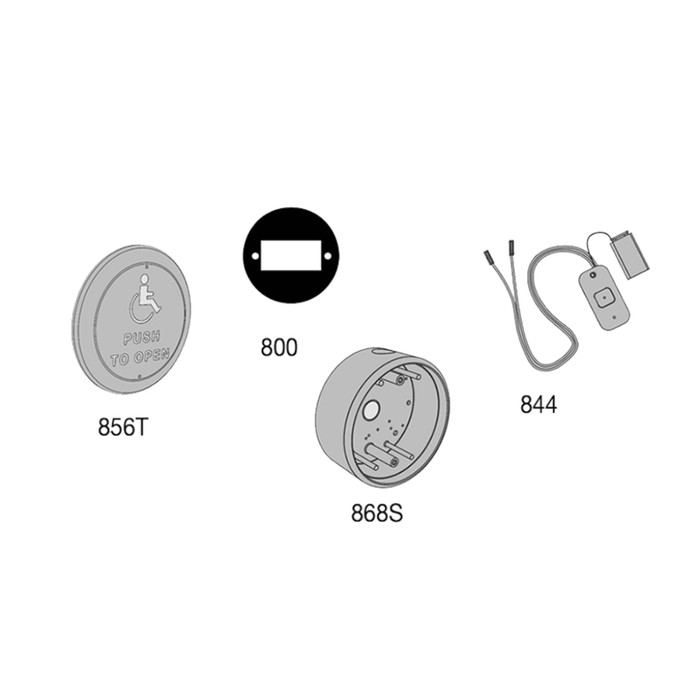

  • Complete Wireless Kit: Includes 8310-856T Actuator, 8310-844 Transmitter, 8310-868F Flush Box, and 8310-800 Weather/Trim Ring for comprehensive installation flexibility.
  • Touchless Operation: Motion sensing technology detects hand waves for contactless door activation, promoting hygiene and reducing surface contamination in high-traffic environments.
  • Dual Mounting Options: Wall mount and flush installation capabilities provide flexibility for various architectural requirements and aesthetic preferences.
  • 4-1/2" Round Design: Compact round form factor with customizable logo and text options for professional appearance and clear identification.
  • Wireless Technology: Eliminates complex wiring requirements while maintaining reliable communication between actuator and door operator systems.
  • Weather Protection: Includes weather/trim ring for enhanced durability in various environmental conditions and outdoor applications.
  • ADA Compliant Design: Meets accessibility requirements with handicap symbol display and touchless activation for universal access.
  • Professional Series Integration: Part of the comprehensive LCN 8310 Series touchless actuator family designed for commercial automatic door applications.

Technical Specifications

  • ADA Compliant: Yes
  • Application: Wireless Actuator
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Display Text: Push To Open
  • Electronic: Yes
  • Mounting Method: Wall Mount
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Color: Blue
  • Product Group: Electronic Access Controls
  • Product Model: 8310-3856TWF
  • Product Shape: Round
  • Product Subgroup: Parts and Accessories
  • Product Substrate: Stainless Steel
  • Product Type: Door Actuators & Plates
  • Relay Action: Momentary (MOM)
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories
  • Symbol: Handicap
  • Touchless Activation: No
  • Weather Resistant: Yes
  • Wireless Communication: Yes

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Loss Prevention
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Government and Municipal Buildings

Why Choose LCN Quality?

LCN 8310 Series touchless actuators deliver professional-grade reliability as part of Allegion's comprehensive automatic door operator solutions. Engineered for demanding commercial applications where dependable contactless operation is essential, these systems promote health and well-being while maintaining the robust performance standards required in high-traffic environments. The stainless steel construction and weather-resistant design ensure long-term durability in various environmental conditions.

Product Specs

Series:
8310 Series
Display Text:
Push To Open
Relay Action:
Momentary (MOM)
Symbol:
Handicap
Application:
Wireless Actuator
Touchless Activation:
No
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Weather Resistant:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Wireless Communication:
Yes
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-3856TWF
Product Color:
Blue
Mounting Method:
Wall Mount
Product Shape:
Round
Product Category:
Electronic Access Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

LCN 8310-3856TWF – Frequently Asked Questions

1) What comes in the LCN 8310-3856TWF kit, or do I need to order the mounting box separately?
The 8310-3856TWF ships as a complete kit: the 8310-856T actuator, the 8310-844 transmitter, the 8310-868F flush box, and the 8310-800 weather/trim ring. That covers both wall surface mount and flush-in-wall installation, so you are not buying a box or trim ring on a separate line. What it does not include is the door operator itself, which has to be on the opening already.
2) Do I have to run wire back to the door operator for this 8310 actuator?
No conduit run required. This is a wireless actuator, and the kit includes the 8310-844 transmitter that carries the signal to the operator. That is the main reason to pick it over a hardwired push plate: you can put it on a free-standing wall, a glass mullion area, or across a vestibule without fishing wire. You still need power at the actuator location per the installation instructions.
3) Is this a momentary switch or does it latch the door open?
Momentary. The relay action on the 8310-3856TWF is MOM, so each activation sends one pulse and the operator runs its normal open-and-close cycle. It is not a maintained or hold-open switch, so if you need a continuous hold-open signal for a delivery period, that has to come from the operator's own control or a separate maintained switch.
4) Will a 4-1/2 inch round actuator fit where I have a square push plate now?
The 8310-3856TWF is a 4-1/2 inch round plate, so it will not line up with a square plate's screw pattern. If you are replacing a square unit and want to reuse the opening geometry, look at a square 4-1/2 inch plate instead, such as the Camden CM-45 Series 4-1/2 inch square push plate switch, which is offered wired or with a kinetic wireless transmitter. Going round means patching and re-prepping the wall or using the included flush box and trim ring to cover the old cut.
5) Is the 8310-3856TWF the door operator, or just the switch?
Just the activation device. This is the push station and its wireless transmitter, mounting box and trim ring. It sends the open signal; the low energy automatic operator on the door does the work of swinging it. If the opening has no operator yet, you need that piece too, plus whatever arm and mounting template suits the frame condition.
6) What is the closest alternative to the LCN 8310-3856TWF round wireless actuator if I need a square push plate instead?
The Camden Door Controls CM-45 Series is a 4-1/2 inch square push plate switch available wired or with a kinetic wireless transmitter, so it covers the same 4-1/2 inch size in a square format with a wireless option. The difference is form and actuation: the LCN 8310-3856TWF is a 4-1/2 inch round stainless steel wireless actuator with a handicap symbol and Push To Open text, using momentary relay action, while the CM-45 is a square push plate. Choose the CM-45 where the opening or existing wall prep calls for a square plate.
7) I only need the mounting box, not a whole actuator kit. What should I order instead of the LCN 8310-3856TWF?
If the actuator itself is already on hand and only the enclosure is needed, the Falcon 8310-819F is a rugged plastic actuator mounting box measuring 1-1/2 inch by 4-3/4 inch, rectangular, for jamb and flush mount, and it is part of the same 8310 Series as the LCN 8310-3856TWF. The LCN 8310-3856TWF is a complete wireless kit that bundles the actuator, transmitter, flush box, and weather and trim ring together, so ordering it for a box-only need duplicates parts you already have.
8) Can I use this LCN actuator on an exterior door?
Yes. The 8310-3856TWF is rated weather resistant and includes the 8310-800 weather/trim ring, and the plate itself is stainless steel, so it holds up on an exterior approach as well as an interior one.
9) Is the Falcon 8310-819F mounting box a substitute for the LCN 8310-3856TWF actuator?
No. The Falcon 8310-819F is a plastic mounting box only, a 1-1/2 inch by 4-3/4 inch rectangle for jamb and flush mount applications, with no switching function of its own. The LCN 8310-3856TWF is the active device: a wireless actuator with momentary relay action that signals the door operator, supplied with wall mount and flush installation hardware. They live in the same 8310 Series and are often bought together, but the box will not operate a door.
10) For an exterior entrance, should I use the LCN 8310-3856TWF or the Camden CM-45?
The LCN 8310-3856TWF is specified as weather resistant with stainless steel construction and ships with a weather and trim ring, which is what you want on an exposed exterior actuator. The Camden CM-45 Series is a 4-1/2 inch square push plate switch offered wired or with a kinetic wireless transmitter and carries no fire rating. On a protected interior vestibule wall either footprint works; outdoors, the weather-resistant stainless unit is the one built for the exposure.
11) I want a hardwired push plate rather than a wireless actuator. What are my options?
The Camden CM-45 Series 4-1/2 inch square push plate switch is offered in a wired configuration as well as with a kinetic wireless transmitter, so it can be run back to the operator on conductor. The LCN 8310-3856TWF is a wireless actuator with wireless communication and an included transmitter, which is the reason it is chosen where fishing wire through a finished wall is not practical. Pick the CM-45 wired version when the conduit path already exists or the spec calls for a hardwired actuator.
12) Is the LCN 8310-3856TWF suitable for a healthcare or school building, or is it a residential item?
It is a commercial-duty item. LCN lists the 8310 Series actuator as commercial, stainless steel faced, and it is the kind of unit specified on healthcare entrances, school vestibules, and government buildings where an accessible push-to-open station is required at the approach side of a powered door.
