LCN 8310-883 Handheld Wireless Transmitter - 900 MHz 3-Button Touchless Actuator with 500 Foot Range

Professional Wireless Touchless Access Control Solution

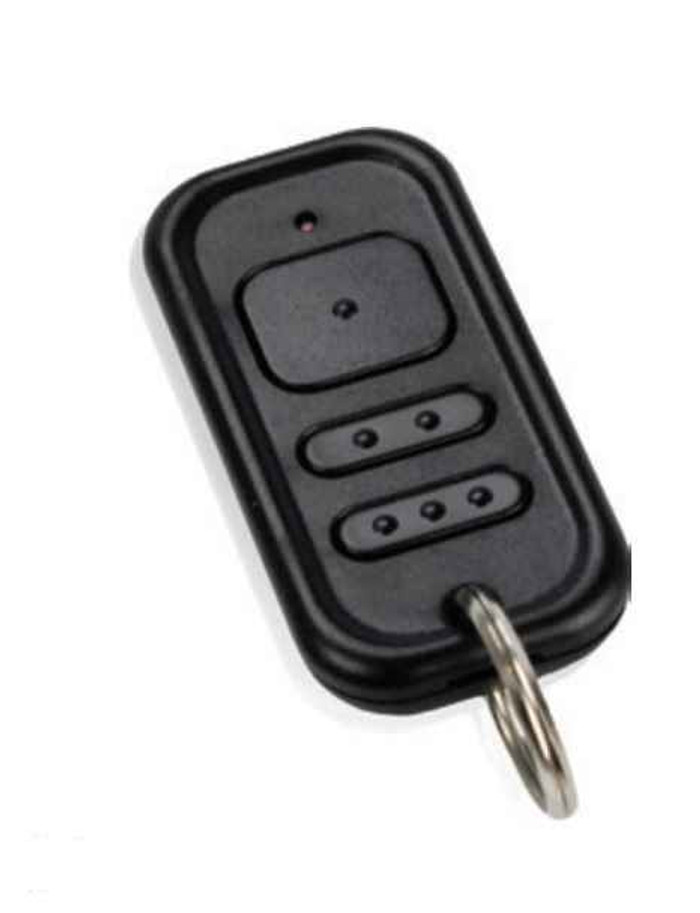

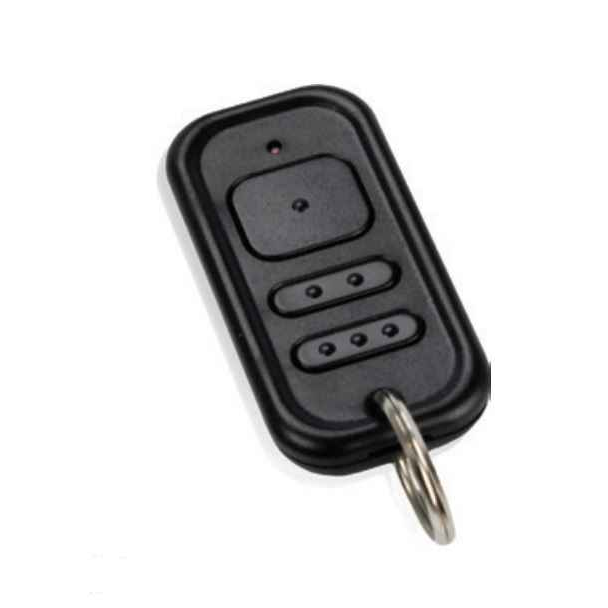

The LCN 8310-883 is a handheld wireless transmitter designed for touchless door activation systems. Operating at 900 MHz frequency with 3V battery power, this 3-button transmitter provides line-of-sight communication up to approximately 500 feet. Part of Allegion’s comprehensive 8310 Series touchless actuator solutions, this transmitter enables contactless door operation for enhanced hygiene and accessibility in commercial applications.

Professional Features & Benefits

  • Extended Wireless Range: 900 MHz frequency provides line-of-sight communication up to approximately 500 feet for flexible positioning and reliable signal transmission.
  • Multi-Button Control: 3-button configuration allows control of multiple doors or functions from a single handheld device for operational efficiency.
  • Battery-Powered Operation: 3V battery power eliminates wiring requirements and enables portable operation for maximum installation flexibility.
  • 8310 Series Compatibility: Compatible with LCN 8310 Series touchless actuators including heavy-duty stainless steel models, standard medium-duty units, close-proximity sensors, and harsh environment IP65-rated actuators.
  • Professional-Grade Construction: Engineered for commercial applications where reliable wireless door activation is essential for accessibility and hygiene compliance.
  • System Integration: Integrates with LCN auto operator solutions and various touchless actuator configurations including flush-mounted designs with visual and audible signaling options.
  • ADA Compliance: Meets accessibility requirements for touchless door operation in commercial facilities.

Technical Specifications

  • ADA Compliant: Yes
  • Battery Operated: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: 8310-883
  • Product Shape: Rectangle
  • Product Subgroup: Parts and Accessories
  • Product Type: Door Actuators & Plates
  • Product Voltage: 12VAC/DC/24VDC/24VAC
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Retail Loss Prevention
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Accessibility Enhancement Systems

Why Choose LCN Quality?

LCN touchless actuator systems deliver professional-grade reliability with stainless steel construction and IP65-rated protection for demanding commercial environments. The 8310 Series features customizable detection zones, visual and audible signaling, and flush-mounted designs engineered for high-use applications. Trusted by facilities seeking to enhance hygiene protocols while maintaining reliable access control performance.

Product Specs

Subcategory:
Closer Parts and Accessories
Series:
8310 Series
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Commercial/Residential:
Commercial
Electronic:
Yes
Battery Operated:
Yes
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-883
Product Voltage:
12VAC/DC/24VDC/24VAC
Product Shape:
Rectangle
Product Category:
Electronic Access Controls
Department:
Door Hardware

LCN LCN-8310-883 – Frequently Asked Questions

1) What does the LCN 8310-883 handheld transmitter actually do?
The 8310-883 is a handheld wireless remote that triggers a low energy automatic door operator without anyone touching a push plate. It talks to the receiver at 900 MHz with roughly 500 feet of line-of-sight range, and the three buttons let one person operate more than one door or function from the same unit. Typical use is staff carrying it in healthcare, education, and other commercial buildings where hands-free entry matters.
2) Does the 8310-883 transmitter need wiring or its own power supply?
No wiring to the transmitter. It runs on a 3V battery, so it is fully portable and nothing has to be pulled to it. The powered side of the system is the door equipment: the 8310 Series actuator hardware works on 12VAC/DC, 24VDC, or 24VAC, and that is what your electrician needs to plan for.
3) Will this remote work with my existing LCN 8310 touchless actuators?
Yes. The 8310-883 is built for the LCN 8310 Series touchless actuator family, including the heavy-duty stainless steel models, the standard medium-duty units, close-proximity sensors, and the IP65-rated harsh environment actuators. It also ties into LCN auto operator setups using flush-mounted actuators with visual and audible signaling.
4) If a wall-mounted push plate is wanted instead of a handheld LCN 8310-883 transmitter, what can be used?
The LCN 8310-883 is a battery-powered handheld transmitter that a user carries and presses to activate a door, so nothing is mounted on the wall. Where the activation point needs to stay at the opening, the Camden CM-45 series is a 4-1/2 inch square push plate switch offered wired or with a kinetic wireless transmitter. That puts a fixed plate beside the door rather than a device in someone's pocket, which suits public corridors and restrooms where any passerby needs to trigger the operator. The 8310-883 is the better fit where staff carry activation with them, such as a nurse or delivery route through several doors.
5) Is the Falcon 8310-819F a substitute for the LCN 8310-883?
No. Both carry the 8310 series designation, but the Falcon 8310-819F is a rugged plastic actuator mounting box measuring 1-1/2 inch by 4-3/4 inch for jamb and flush mounting - it is an enclosure that holds an actuator. The LCN 8310-883 is the handheld wireless transmitter itself, a 3-button 900 MHz device with roughly 500 feet of line-of-sight range. If an actuator needs a surface or jamb enclosure, the 819F is the part; if a portable activation device is needed, the 8310-883 is.
6) Is a handheld remote enough to meet touchless accessibility requirements, or do I still need a push plate at the door?
The 8310-883 is listed as ADA compliant for touchless door operation, but it only helps the person holding it. Public-side accessibility on an opening still comes from a mounted actuator. Common practice is a wall or jamb actuator for the public plus the handheld for staff who need to open doors from across a lobby or corridor, up to about 500 feet line of sight.
7) Does the 500 foot range hold up through walls in a hospital corridor?
The 500 feet is a line-of-sight figure at 900 MHz. Walls, elevator shafts, metal doors, and equipment rooms cut into it, so plan real-world coverage well short of that and position so the operator between the user and the door is as clear as possible. If you need reliable activation from a fixed spot behind structure, a hardwired or dedicated wall actuator is the safer call.
8) Can one 8310-883 control three separate doors?
The three buttons are there so a single handheld unit can address multiple doors or functions rather than carrying one remote per opening. Each receiver on the door side has to be set to respond to the button you assign it, so the pairing work happens at commissioning with the 8310 Series actuator equipment.
9) I am mounting 8310 actuators on a jamb. Does this remote come with a mounting box?
No. The 8310-883 is a handheld unit with nothing to mount. If you need a housing for a surface or jamb-mounted actuator, that is a separate item, for example the Falcon 8310-819F rugged plastic actuator mounting box, a 1-1/2 by 4-3/4 inch rectangle for jamb and flush mount.
10) For a fire-rated opening, does the Camden CM-45 or the LCN 8310-883 apply?
The Camden CM-45 push plate switch series is listed as not fire rated. The LCN 8310-883 is a handheld 900 MHz wireless transmitter rather than a device installed in the door or frame, so it is not part of the rated assembly at all. On openings where the frame-mounted components must be scrutinized by the AHJ, a carried transmitter keeps the activation device off the assembly entirely.
11) Can one device cover three doors, or is a separate actuator needed at each?
The LCN 8310-883 has a 3-button configuration, so a single handheld unit can be assigned to multiple doors or functions within its roughly 500 foot line-of-sight range. The fixed-plate approach works the other way: a Camden CM-45 square push plate switch is installed per opening, wired or with a kinetic wireless transmitter, so three doors means three plates. Facilities standardizing on staff-carried activation reduce the number of wall devices; facilities serving the general public still need a plate at each opening.
12) Does choosing the LCN 8310-883 avoid running wire to the activation point?
Yes. The 8310-883 is battery operated at 3V and communicates at 900 MHz, so no conduit or low-voltage run is needed to the activation device. The Camden CM-45 push plate series is offered wired or with a kinetic wireless transmitter, so it can also be specified without a home run if the wireless option is chosen. The difference is location: the CM-45 still needs a mounting location at the opening, while the 8310-883 needs none.
13) Is the 8310-883 a residential garage-style remote or commercial gear?
Commercial. It is part of Allegion's LCN 8310 Series touchless access line intended for commercial buildings, healthcare, schools, and industrial facilities, not residential door openers.
