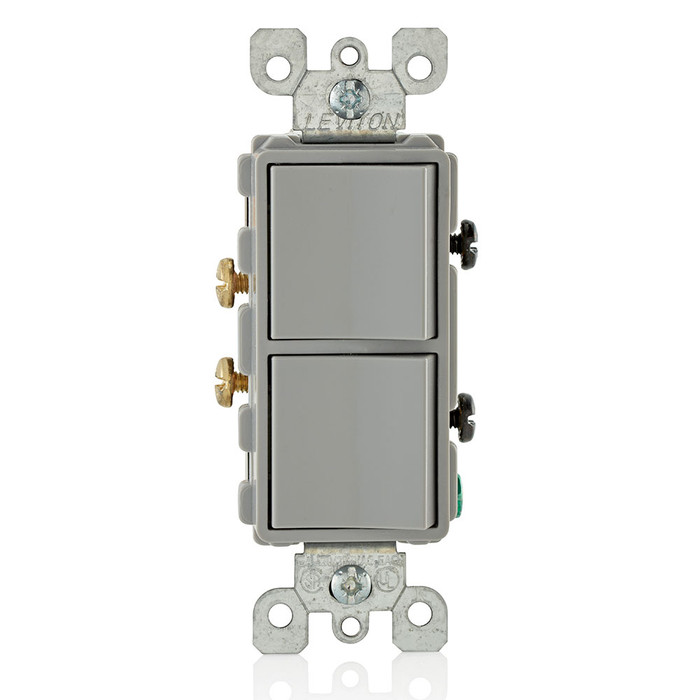

Leviton 5634-GY Commercial Grade Decora Combination Switch, 120/277V 15A

Leviton 5634-GY Commercial Grade Decora Combination Switch, 120/277V 15A

(No reviews yet) Write a Review

Model: 5634-GY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton 5634-GY Commercial Grade Decora Combination Switch, 120/277V 15A

The Leviton 5634-GY is a commercial grade AC combination switch featuring (2) 1-pole switch mechanisms in a single Decora® device, rated 120/277-Volt at 15-Amp. Finished in gray, this combination switch is built to Leviton's commercial grade standards for demanding electrical applications where two independent circuits need to be controlled from one wallplate opening. The Decora® styling delivers a clean, modern rocker profile while the dual 1-pole design simplifies wiring for multi-circuit control points.

Key Features

  • Combination Configuration: (2) 1-Pole switches combined in a single device for controlling two separate circuits from one location.
  • Electrical Rating: Rated 120/277-Volt, 15-Amp AC for reliable commercial-grade switching performance.
  • Commercial Grade Construction: Built to commercial grade specifications for durability in higher-traffic commercial environments.
  • Decora® Design: Features the recognizable Decora® rocker profile for a modern, low-profile appearance that pairs with standard Decora® wallplates.
  • Gray Finish: Gray color finish suited to coordinate with standard commercial device and wallplate color schemes.
  • AC Switch Function: Designed for AC-only switching applications in general-purpose commercial wiring circuits.

Technical Specifications

  • Product Type: Switch
  • Voltage Rating: 120/277-Volt AC
  • Amperage Rating: 15-Amp
  • Configuration: (2) 1-Pole
  • Color: Gray
  • Grade: Commercial
  • Series: Decora®

Typical Applications

  • Commercial and Light Commercial Electrical Installations
  • Multi-Circuit Switching from a Single Device Location
  • Office, Retail, and Institutional Lighting Control
  • Renovation and New Construction Wiring Projects
  • Decora®-Style Device and Wallplate Systems

Why Leviton?

Leviton's commercial grade devices are engineered for the demands of professional electrical installations, combining dependable 120/277-Volt, 15-Amp switching performance with the clean Decora® aesthetic. The 5634-GY's (2) 1-pole combination design gives electricians a space-saving way to control two circuits from a single device, backed by Leviton's reputation for commercial-grade reliability and code-compliant construction.

Manufacturer Resources

Product Specs

Product Type:
Combination Switch
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Combination Devices

Leviton 5634-GY – Frequently Asked Questions

1) Can one Leviton 5634-GY control two separate lighting circuits from a single wallbox opening?
That is exactly what the 5634-GY is built for. It combines two independent 1-pole switch mechanisms in one Decora device, so two separate circuits can be switched from one gang opening. Each rocker works on its own circuit, which saves a gang when the box is already crowded.
2) Will the Leviton 5634-GY work on a 277V lighting circuit in a commercial building?
Yes. The 5634-GY is rated 120/277V AC at 15A, so it suits both 120V branch circuits and 277V commercial lighting circuits. It is an AC-only switch, so do not use it on DC loads.
3) Is the Leviton 5634-GY a three-way switch or a single-pole switch?
Both mechanisms are single pole. The 5634-GY is a (2) 1-pole combination, so each rocker controls its load from one location only. If you need to switch the same light from two locations, you need a 3-way device instead, not this one.
4) What wallplate do I need for the Leviton 5634-GY combination switch?
It takes a standard single-gang Decora/rocker-style wallplate. The device uses the Decora rocker profile and mounts in one gang, with both switches behind the single Decora opening. The device body is gray, so a gray Decora plate keeps it matched.
5) Is the Leviton 5634-GY commercial grade or residential grade?
Commercial grade. The 5634-GY is built to Leviton's commercial grade specification for higher-traffic environments like offices, retail, and institutional spaces, rather than the lighter residential grade line.
6) Can I put a 20-amp circuit on the Leviton 5634-GY?
No. The 5634-GY is rated 15A. On a 20A branch circuit you need a 20A-rated switch, so size the device to the breaker and conductor rather than derating by assumption.
7) Will the Leviton 5634-GY match the gray Decora devices already installed in my building?
The 5634-GY is supplied in gray with the standard Decora rocker, so it sits flush with other gray Decora switches and receptacles on the same wall. Property managers standardizing a floor on gray commercial Decora can drop it in without a color break.
8) What is the exact Leviton part number for the gray 15A dual single-pole Decora combination switch?
The part number is Leviton 5634-GY. GY is the gray color suffix, and the device is the 15A 120/277V (2) 1-pole AC combination switch.
