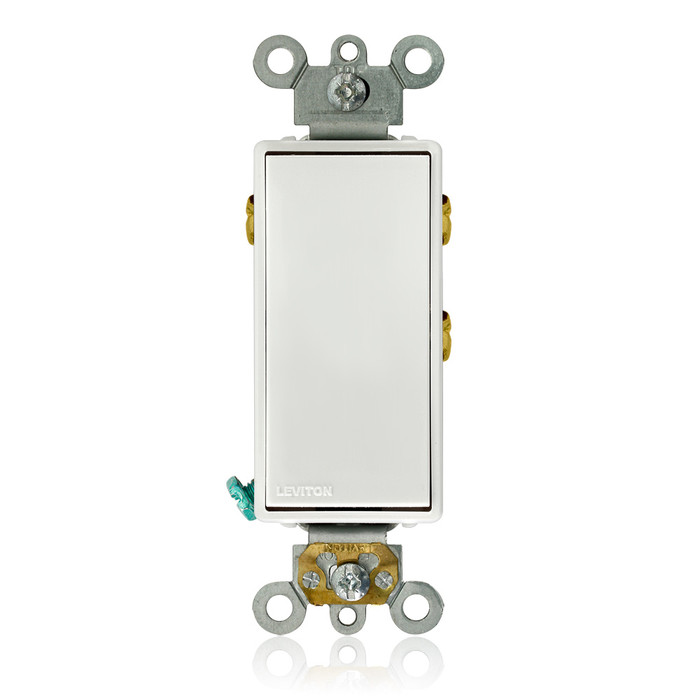

Leviton 5685-2W SPDT Center-Off Commercial Grade Rocker Switch, White

The Leviton 5685-2W is a 120/277-Volt, 15-Amp SPDT Center Off 1-Pole Commercial/Specification Grade rocker switch from the Decora Plus™ line, engineered for reliable AC quiet switching in demanding commercial and residential environments. Its center-off position and single-pole, double-throw (SPDT) configuration give installers added flexibility for multi-location lighting control, while the smooth, quiet rocker mechanism delivers dependable, low-noise operation cycle after cycle. Finished in White, this switch pairs a familiar Decora Plus™ profile with the heavy-duty performance electricians expect from commercial-grade devices.

Key Features

  • Electrical Rating: Rated 120/277-Volt, 15-Amp for use across a wide range of commercial and residential lighting and control circuits.
  • SPDT Center-Off Configuration: Single-pole, double-throw switching with a center-off position, ideal for applications requiring an intermediate off state.
  • 1-Pole Design: Straightforward single-pole circuit control for simplified installation and wiring.
  • Commercial/Specification Grade Construction: Built to commercial/specification grade standards for durability under frequent, high-cycle use.
  • AC Quiet Switch Mechanism: Engineered for smooth, quiet actuation, minimizing operational noise in occupied spaces.
  • Decora Plus™ Rocker Style: Sleek rocker paddle design in White, compatible with the broader Decora Plus™ family of devices and wallplates.

Technical Specifications

  • Product Type: Switch
  • Voltage Rating: 120/277-Volt
  • Amperage Rating: 15-Amp
  • Switch Type: SPDT, Center Off, 1-Pole
  • Grade: Commercial/Specification Grade
  • Color: White

Typical Applications

  • Commercial and Residential Lighting Control
  • Three-Way and Multi-Location Switching Applications
  • Office, Retail, and Hospitality Electrical Installations
  • Renovation and New Construction Wiring
  • High-Traffic Areas Requiring Quiet Switch Operation

Why Leviton?

Leviton builds the 5685-2W to commercial/specification grade standards, meaning it is designed to withstand the frequent, high-cycle use found in commercial, institutional, and busy residential settings. The AC quiet switching mechanism and SPDT center-off functionality reflect Leviton engineering focused on reliable, code-compliant performance, while the Decora Plus™ styling keeps installations looking clean and consistent across a facility.

Manufacturer Resources

Product Specs

Product Type:
Decorator Rocker Switch
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Rocker Switches

Leviton 5685-2W – Frequently Asked Questions

1) What does SPDT center-off mean on the Leviton 5685-2W switch, and when would I use it?
The 5685-2W is a single-pole, double-throw rocker with a center-off position, so the paddle gives you three states: one load energized up, everything off in the middle, the other load energized down. That is how you run two separate loads from one device (for example two lighting zones or a two-speed load) and still have a true off. A standard three-way switch has no off position, it only transfers between two travelers.
2) Will the Leviton 5685-2W work on a 277V lighting circuit?
Yes. The 5685-2W is rated 120/277 volts at 15 amps, so it is usable on the 277V branch circuits common in commercial fluorescent and LED lighting as well as standard 120V residential and office circuits.
3) Does the Leviton 5685-2W take a standard Decora wallplate?
It uses the Decora Plus rocker profile, so it mounts behind a standard Decora style (large rectangular opening) wallplate and lines up with other Decora Plus devices in a multi-gang box. If the rest of a floor is already Decora, this keeps the openings consistent.
4) Is the Leviton 5685-2W commercial grade or residential grade?
Commercial/specification grade. That is the construction tier spec'd for high-cycle use in offices, retail, hospitality and institutional buildings, rather than the lighter residential grade device. It also uses an AC quiet mechanism, which matters in occupied spaces like conference rooms and patient areas where switch clack is noticeable.
5) Can I use the Leviton 5685-2W as a plain single-pole on/off switch?
You can wire only one of the two throws and leave the other terminal unused, which gives you on in one direction and off at center. But you are paying for a double-throw device and the paddle will still travel to a third position, which confuses users. If all you need is simple on/off, order a single-pole switch instead. Use the 5685-2W where you genuinely need two selectable loads plus an off.
