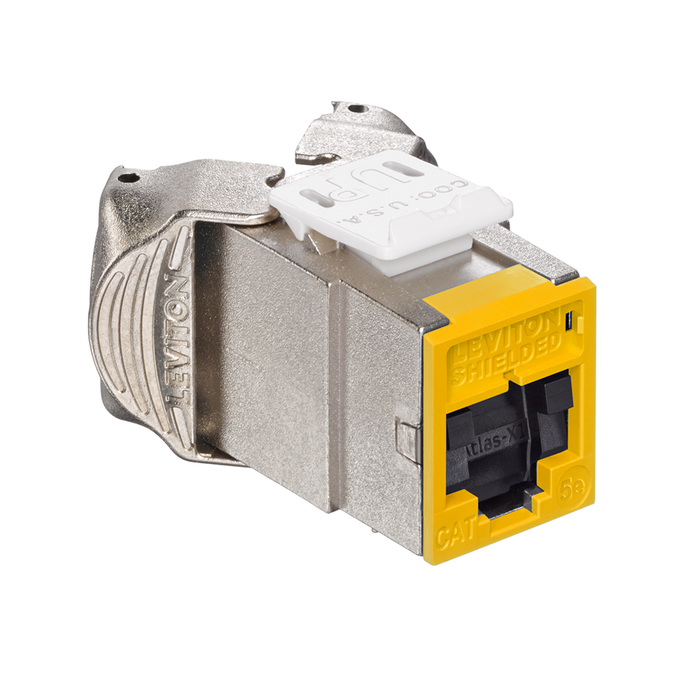

Leviton Atlas-X1 Shielded Cat 5e QuickPort Jack with Dust Shutters

Leviton Atlas-X1 Shielded Cat 5e QuickPort Jack with Dust Shutters

The Leviton Atlas-X1 Cat 5e Shielded QuickPort Jack with Shutters is engineered for structured cabling installations that demand reliable signal performance and long-term durability. Its shielded construction delivers EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression, while a built-in internal shutter guards the jack against dust and debris when it is not in use. The jack terminates 26 to 22-gauge solid or stranded conductors and is available in 13 ANSI/TIA-606-B compatible colors for organized color-coding, making it a dependable choice for professional voice, data, and A/V network wiring in commercial and institutional environments.

Key Features

• Wire Range: Terminates 26 to 22-gauge solid or stranded conductors for compatibility with a wide range of cable types.
• Tool-Free Termination: Unique design supports tool-free termination and re-termination without requiring a specialized termination tool.
• EMI/RFI Shielding: Shielded construction delivers signal isolation and excellent alien crosstalk (AXT) suppression for cleaner data transmission.
• Interchangeable Icons: Supplied with interchangeable icons (voice, data, A/V, and blank) color-coded to match the jack face for easy identification and tracking.
• Color Options: Available in 13 ANSI/TIA-606-B compatible colors to support facility color-coding standards.
• Durable IDCs: Robust IDCs withstand 20 re-termination cycles, and connector contacts are tested for 750 plug-mating cycles for long system life.
• Retention Force Technology: Patented RFT protects against tine damage from 4- or 6-pin plugs, extending jack service life.
• Dust Protection: Internal shutter protects the jack against dust and debris intrusion when not in use.

Certifications & Compliance

• Independently Tested to Exceed Component, Permanent Link, and Channel Margins
• 13 ANSI/TIA-606-B Compatible Colors for Facility Color-Coding Standards

Technical Specifications

• list_batch: LEV-20260731

Typical Applications

• Commercial and Institutional Structured Cabling Systems
• Data, Voice, and A/V Network Wiring
• Modular Furniture and Wall-Mount Faceplate Installations
• Renovation and New Construction Low-Voltage Wiring
• Data Centers and Telecom Rooms Requiring AXT Suppression

Why Leviton?

Leviton engineers the Atlas-X1 QuickPort Jack with Retention Force Technology, robust IDCs rated for 20 re-termination cycles, and connector contacts tested for 750 plug-mating cycles, delivering the long-term reliability that professional installers expect. Independent testing confirms the jack exceeds component, permanent link, and channel margins, making it a dependable choice for shielded structured cabling systems supporting voice, data, and A/V networks in commercial, institutional, and telecom environments.
