Leviton Atlas-X1 Cat 5e UTP QuickPort Jack

Leviton Atlas-X1 Cat 5e UTP QuickPort Jack

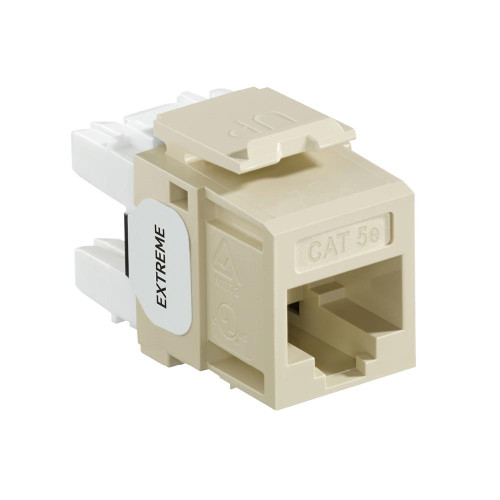

The Leviton Atlas-X1 Cat 5e UTP QuickPort Jack is a structured cabling connector module built for reliable voice and data terminations in commercial and residential network installations. This UTP jack terminates 26 to 22-gauge solid or stranded conductors and features Leviton's patented Retention Force Technology (RFT) to protect against tine damage from 4- or 6-pin plugs. Available in 13 ANSI/TIA-606-B compatible colors for color-coded system organization, the Atlas-X1 QuickPort Jack supports tool-free termination and re-termination without specialized tools, making it a dependable choice for data centers, offices, and network closets.

Key Features

• UTP Construction: Unshielded twisted pair (UTP) design for standard Category 5e network cabling applications.
• Tool-Free Termination: Unique design supports tool-free termination and re-termination, requiring no specialized termination tool for fast field installation.
• Wire Compatibility: Terminates 26 to 22-gauge solid or stranded conductors, supporting a range of cable types used in structured cabling systems.
• Retention Force Technology (RFT): Patented RFT protects against tine damage from 4- or 6-pin plugs, extending connector life and system reliability.
• Durable IDC Contacts: Robust IDCs withstand 20 re-termination cycles, and connector contacts are tested for 750 plug-mating cycles to ensure long-term system longevity.
• Short Connector Design: Compact profile supports a wider range of applications, including shallow boxes, enclosures, and tight bend-radius installations.
• Color-Coded Organization: Available in 13 ANSI/TIA-606-B compatible colors for color coding and cable management organization across a facility.
• Interchangeable Icons: Supplied with interchangeable icons (voice, data, A/V, and blank) color coded to match the jack face for easy identification and tracking of connections.
• Dust Protection Option: Jack with internal shutter is available to protect contacts against dust and debris in demanding environments.

Technical Specifications

• Product Group: Wiring Devices
• Department: Electrical
• Product Subgroup: Modules & Adapters
• Shielding: UTP

Typical Applications

• Structured Cabling and Data Network Installations
• Voice and Data Wall Plate Terminations
• Category 5e Network Infrastructure Upgrades
• Commercial Office and Data Center Cabling
• Patch Panel and Telecommunications Room Wiring
• Color-Coded Cable Management Systems

Why Leviton?

Leviton engineers the Atlas-X1 QuickPort Jack with Retention Force Technology and durable IDC contacts independently tested to withstand 20 re-termination cycles and 750 plug-mating cycles, ensuring dependable performance over the life of a structured cabling system. Every Atlas-X1 jack is independently tested and guaranteed to exceed component, permanent link, and channel margins, giving installers and network professionals confidence in code-compliant, long-lasting network connections.
