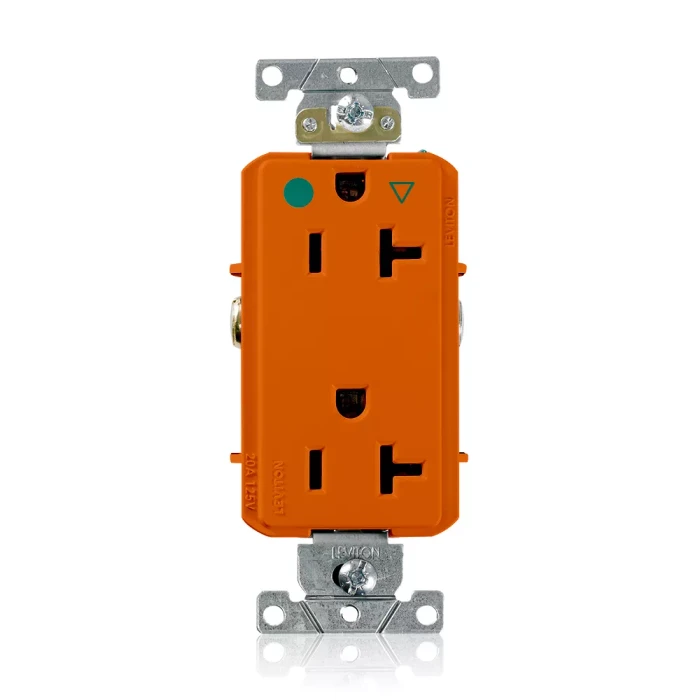

Leviton D8300-IG Isolated Ground Duplex Receptacle, Industrial Grade

Leviton D8300-IG Isolated Ground Duplex Receptacle, Industrial Grade

(No reviews yet) Write a Review

Model: D8300-IG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$45.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton D8300-IG Isolated Ground Duplex Receptacle, Industrial Grade

The Leviton D8300-IG is an isolated ground (IG) duplex receptacle from Leviton's 8300 series, engineered for applications where a dedicated, noise-free grounding path is required to protect sensitive electronic equipment from electrical interference. Isolated ground receptacles like the D8300-IG separate the equipment grounding conductor from the normal grounding path, routing it directly back to the service panel or a designated grounding point, which helps reduce electrical noise on the ground circuit. This design makes the D8300-IG a preferred choice for facilities running computers, servers, medical equipment, audio/visual systems, and other electronics that are sensitive to ground-loop interference. As part of the Leviton 8300 series, this receptacle is built to withstand the demands of repeated plug insertions and heavy-duty commercial or industrial use.

Key Features

  • Isolated Ground Design: Dedicated isolated ground path (identified by the "IG" designation) helps minimize electrical noise interference for sensitive electronic loads.
  • Duplex Configuration: Standard duplex receptacle layout provides two outlets from a single device for flexible equipment connections.
  • 8300 Series Construction: Part of Leviton's established 8300 series line, designed for demanding commercial and industrial electrical environments.
  • Leviton Reliability: Backed by Leviton's reputation for durable wiring devices used across commercial, industrial, and institutional facilities.
  • Model Identification: Clearly marked D8300-IG designation for easy identification and reordering when maintaining consistent isolated ground circuits throughout a facility.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Data Centers and Server Rooms
  • Computer and IT Equipment Circuits
  • Medical and Laboratory Equipment
  • Audio/Visual and Broadcast Installations
  • Commercial and Industrial Facilities Requiring Noise-Free Grounding

Why Leviton?

Leviton is a widely recognized manufacturer of wiring devices used in commercial, industrial, and institutional electrical systems. The D8300-IG isolated ground receptacle reflects Leviton's focus on solving real-world power quality challenges, giving electricians and facility managers a dependable device for protecting sensitive equipment from ground-related electrical noise. Choosing a Leviton isolated ground receptacle helps ensure consistent performance across a facility's electrical infrastructure.

Manufacturer Resources

Product Specs

list_batch:
LEV-20260924
Product Type:
Duplex Receptacle
Series:
8300
Department:
Electrical
Product Subgroup:
Receptacles & Outlets
Product Group:
Wiring Devices

Leviton D8300-IG – Frequently Asked Questions

1) What does an isolated ground receptacle like the Leviton D8300-IG actually do differently from a standard duplex receptacle?
The D8300-IG keeps the equipment grounding conductor separate from the normal grounding path, running it back directly to the service panel or a designated grounding point. That dedicated path cuts electrical noise on the ground circuit, which is what protects sensitive electronics from ground-loop interference. A standard duplex bonds the ground terminal to the metal yoke and box, so the ground shares whatever noise is on the building's grounding system. Outlet layout is the same duplex pattern either way, two outlets from one device.
2) Do I need a dedicated isolated ground conductor run back to the panel to use the Leviton D8300-IG?
Yes. An IG receptacle only does its job if the isolated grounding conductor is carried separately all the way back to the service panel or a designated grounding point, per the way the D8300-IG is built. If you land it on the same ground as everything else in the box, you get a normal receptacle with no noise benefit. Plan the home-run ground as part of the circuit before you order these.
3) Is the Leviton D8300-IG suitable for server rooms and medical equipment circuits?
Those are the intended uses. The 8300 series D8300-IG is aimed at data centers and server rooms, computer and IT equipment circuits, medical and laboratory equipment, and audio/visual and broadcast installations, along with general commercial and industrial circuits where ground noise is a problem. It is an industrial grade device built for repeated plug insertions and heavy-duty use.
4) What part number do I reorder to keep isolated ground receptacles consistent across a facility?
Order by Leviton MPN D8300-IG. The device is marked with that designation, so a facility standardizing isolated ground circuits across multiple rooms can match existing outlets by the marking on the strap without pulling the device out of the wall.
5) Should I specify an isolated ground receptacle or a standard industrial grade duplex for sensitive electronics?
Pick isolated ground only when the load is sensitive to noise on the grounding conductor, computers, servers, lab or medical gear, broadcast and A/V. That is what the D8300-IG is for. If the equipment is not noise sensitive, a standard industrial grade duplex gives you the same durability without the extra separate ground conductor and the extra labor of running it. IG does not add surge or overcurrent protection, it addresses ground noise.
