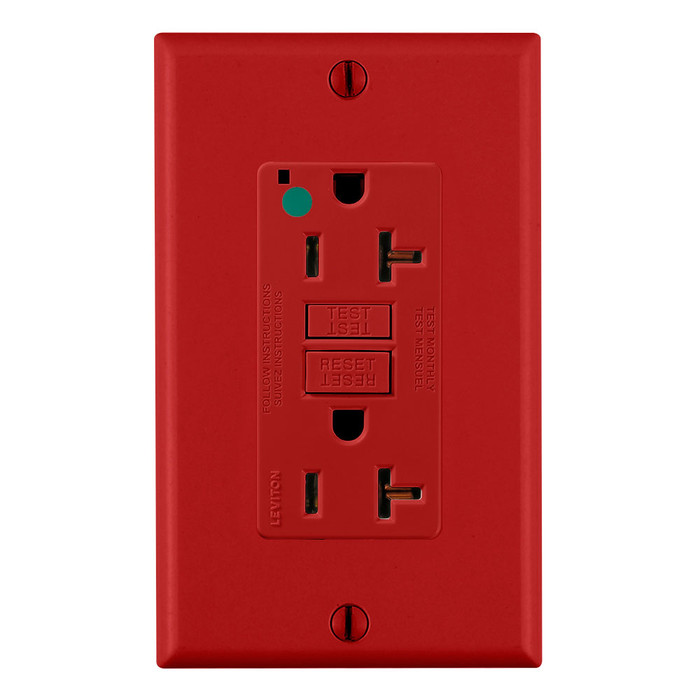

Leviton Hospital Grade Slim Heavy-Duty GFCI Duplex Receptacle, Red

Leviton Hospital Grade Slim Heavy-Duty GFCI Duplex Receptacle, Red

(No reviews yet) Write a Review

Model: GFNT2-HGW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Hospital Grade Slim Heavy-Duty GFCI Duplex Receptacle, Red

The Leviton Hospital Grade Slim Heavy-Duty GFCI Duplex Receptacle is a ground-fault circuit interrupter device built to Hospital Grade standards for demanding, high-reliability environments. Rated 20A at 125V with a NEMA 5-20R configuration, this SmartlockPro® receptacle features a slim, heavy-duty housing engineered for durability in facilities where dependable ground-fault protection is essential. Designed by Leviton for professional electrical installations, this Red GFCI receptacle combines a compact form factor with robust, long-lasting construction for code-conscious specifiers.

Key Features

  • Hospital Grade Construction: Built to Hospital Grade requirements for use in demanding healthcare and critical-care environments where reliability is paramount.
  • Slim Profile: A slim housing design allows for easier installation in multi-gang configurations and space-constrained boxes.
  • Heavy-Duty Design: Heavy-duty build quality supports frequent use and long-term performance in high-traffic professional settings.
  • GFCI Protection: Ground-fault circuit interrupter protection built into a dedicated duplex receptacle for added shock protection on the circuit.
  • Electrical Rating: Rated 20-Amp at 125-Volt with a NEMA 5-20R configuration for compatibility with standard 20A/125V plugs.
  • Red Finish: Red housing color for easy visual identification of dedicated or critical circuits.
  • Professional-Grade Reliability: Engineered by Leviton to deliver consistent ground-fault protection performance across repeated use cycles.

Certifications & Compliance

  • Hospital Grade

Technical Specifications

  • Amperage: 20A
  • Voltage: 125V
  • NEMA Rating: 5-20R
  • Product Color: Red
  • Device Type: Tamper-Resistant

Typical Applications

  • Hospitals and Healthcare Facilities
  • Commercial and Institutional Electrical Installations
  • Renovation and New Construction Projects
  • Areas Requiring Enhanced Ground-Fault Protection
  • High-Traffic Professional Environments

Why Leviton?

Leviton is a recognized name in professional electrical devices, and this Hospital Grade GFCI receptacle reflects that standard with its slim, heavy-duty construction and 20A/125V, NEMA 5-20R rated ground-fault protection. For electrical professionals specifying devices for critical, high-use environments, this receptacle offers the durability and Hospital Grade compliance needed for code-conscious, reliable installations.

Manufacturer Resources

Product Specs

Product Type:
GFCI Receptacle
Listing:
Hospital Grade
Amperage Rating:
20A
Voltage Rating:
125V
NEMA Rating:
5-20R
Grade:
Hospital
Product Color:
Red
Device Type:
Tamper-Resistant
Department:
Electrical
Product Group:
Outlets
Product Subgroup:
GFCI Receptacles

Leviton GFNT2-HGW – Frequently Asked Questions

1) Is the Leviton GFNT2-HG GFCI receptacle a 20 amp device, and will a 20A plug fit it?
Rated 20A at 125V with a NEMA 5-20R face, so it takes both standard 5-15P cords and the T-slot 5-20P plugs found on higher-draw equipment. On a 20A branch circuit it's the receptacle that lets a 20A cord cap land without an adapter. If your circuit and conductors are 15A, this is not the device to install on it.
2) What does Hospital Grade mean on a GFCI receptacle, and do I need it in a patient care area?
Hospital Grade is the grade this Leviton GFNT2-HG carries, and it is what an inspector looks for in patient care spaces: the device has to meet tighter requirements for grounding reliability and plug retention than a standard commercial spec receptacle. Practically, it means a cord stays put and the ground path stays intact after repeated plugging of portable equipment. If your drawing calls out hospital grade at that outlet, this device satisfies it while also giving you the ground-fault protection.
3) Does the red Leviton hospital grade GFCI mean it's on emergency power?
Red is a color choice, not a circuit type. The GFNT2-HGR is the red version and GFNT2-HGW is white, and both are the same 20A/125V hospital grade GFCI. Facilities commonly reserve red devices for critical branch or emergency-generator circuits, but the color does nothing electrically. Order red where your facility's color convention calls for it and white everywhere else, so the two match on the same wall.
4) Is this Leviton GFCI tamper resistant, or do I have to order TR separately?
Tamper-resistant is built in, not a separate catalog option. The GFNT2-HG ships with the shuttered face on both the red and the white version, so where your jurisdiction requires TR receptacles in a pediatric or patient care area you are covered with the one part number. There is no non-TR variant to pick by mistake.
5) Will a slim GFCI fit in a shallow or crowded multi-gang box?
Depth is the usual problem with GFCIs, and the slim body on this Leviton SmartlockPro hospital grade device is the reason to pick it: the housing is built to go into space-constrained boxes and to gang up without fighting the device beside it. On a four-gang trim in an older shallow box, that is often the difference between the plate sitting flat and the conductors being forced.
6) Can I use one of these to GFCI protect the downstream outlets on the same circuit?
Yes, feed-through is how these are normally used. Wiring the circuit's incoming conductors to LINE and the rest of the run to LOAD puts every downstream 125V receptacle on that branch under the same ground-fault protection, so you buy one device instead of one per box. Put it at the first outlet in the run. If you only want this outlet protected, land the branch on LINE and leave LOAD unused.
7) What's the difference between a hospital grade GFCI and a standard commercial GFCI receptacle?
Both interrupt on a ground fault the same way. The difference is the device itself: hospital grade adds the grounding and retention requirements for medical equipment use, which is what the green dot on the face signals to an inspector. A standard commercial spec grade GFCI is the right call in a general office restroom or a break room. In a patient care space, or anywhere the drawing says HG, the GFNT2-HG is what passes.
8) Is this Leviton GFCI weather resistant for outdoor use?
This is an indoor device. It's a tamper-resistant hospital grade GFCI built for healthcare and commercial interiors, and a damp or wet outdoor location calls for a WR-rated GFCI in an in-use bubble cover instead. Use the GFNT2-HG on interior 20A circuits: patient rooms, corridors, labs, and the general commercial work where hospital grade is specified.
9) Do I need a special wall plate for the Leviton GFNT2-HG?
It takes a standard decora-style opening, the same rectangular cutout used for decorator switches and dimmers, not the round-hole duplex plate. In a mixed gang, match the plate to the total device count and keep every opening decorator. Nothing about the hospital grade rating changes the plate you need, though red devices are usually plated to match the facility's convention rather than the device color.
10) I'm standardizing outlets across a facility. Can I get this hospital grade GFCI in white as well as red?
Two colors, red as GFNT2-HGR and white as GFNT2-HGW, identical otherwise at 20A/125V, NEMA 5-20R, tamper-resistant, hospital grade. That's enough to run one part family through a whole building: white on normal power, red where the facility flags critical or dedicated circuits, with the same device behavior and the same trim everywhere.
