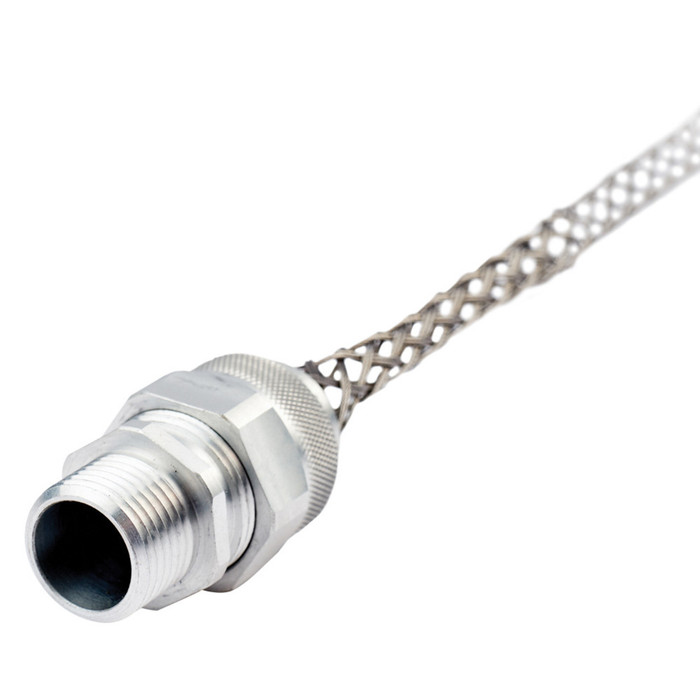

Leviton L8011-100 Strain Relief Cord Connector, 1.5" NPT

Leviton L8011-100 Strain Relief Cord Connector, 1.5" NPT

(No reviews yet) Write a Review

Model: L8011-100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$330.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton L8011-100 Strain Relief Cord Connector, 1.5" NPT

The Leviton L8011-100 is a strain relief cord connector engineered with a 1.5" NPT thread for secure mounting into enclosures, panels, and equipment housings. This connector is sized for a cable diameter range of 1.31" to 1.44", ensuring a snug, dependable grip that protects the cord jacket from abrasion, pull-out, and repeated flexing at the point of entry. Built by Leviton for demanding commercial and industrial wiring applications, the L8011-100 delivers reliable mechanical strain relief wherever cordage must pass through a metal or plastic enclosure wall.

Key Features

  • Thread Size: 1.5" NPT connection for standard enclosure and panel knockouts.
  • Cable Range: Designed to accommodate cable/cord diameters from 1.31" to 1.44", providing a secure compression fit.
  • Strain Relief Function: Reduces mechanical stress on cord entry points, helping prevent pull-out and jacket damage over time.
  • Leviton Build Quality: Manufactured to Leviton's standards for dependable performance in professional electrical installations.
  • Secure Mounting: NPT threading allows for a tight, consistent seal when installed into compatible panel or enclosure openings.
  • Application Versatility: Suitable for use across a range of cord and cable management applications requiring a 1.5" NPT fitting.

Technical Specifications

  • Model: L8011-100
  • Thread Size: 1.5" NPT
  • Cable Diameter Range: 1.31" - 1.44"
  • Brand: Leviton

Typical Applications

  • Commercial and Industrial Electrical Enclosures
  • Panel and Equipment Cord Entry Points
  • Cord and Cable Management Systems
  • Machine and Equipment Wiring
  • Control Panel Installations

Why Leviton?

Leviton is a trusted name in electrical wiring devices and connectors, and the L8011-100 strain relief connector reflects that reputation with a precisely sized 1.5" NPT thread and a defined 1.31" to 1.44" cable range for a secure, code-conscious fit. Choosing Leviton for strain relief hardware helps ensure consistent mechanical protection at cord entry points in professional electrical installations.

Manufacturer Resources

Product Specs

list_batch:
LEV-20260924
Product Type:
Straight Cord Connector
Department:
Electrical
Product Subgroup:
Cord Grips
Product Size:
1.5" NPT
Product Group:
Wiring Devices

Leviton L8011-100 – Frequently Asked Questions

1) What cable diameter does the Leviton L8011-100 strain relief connector accept?
The L8011-100 grips cord jackets measuring 1.31 to 1.44 inches in outside diameter. That is the compression range, so a cord thinner than 1.31 inches won't clamp tight enough to hold against pull-out, and anything over 1.44 inches won't seat in the gland. Measure the jacket OD, not the conductor size, before you order.
2) Will a 1.5 inch NPT strain relief connector thread into my enclosure knockout?
The L8011-100 has a 1.5 inch NPT male thread, which mates with a tapped 1-1/2 inch NPT hub or a 1-1/2 inch trade size knockout fitted with the matching locknut arrangement. A 1-1/2 inch knockout is a standard trade size, so the hole itself is common on panels and junction boxes, but confirm your opening is 1-1/2 inch trade size and not 1-1/4 or 2 inch, since NPT threads are not interchangeable between trade sizes.
3) What does a strain relief cord connector actually do at the panel entry?
It clamps the cord jacket where the cable passes through the enclosure wall so the mechanical load stays on the fitting instead of the terminations inside. The L8011-100 takes the pull, the flexing, and the abrasion at the entry point, which is what keeps conductors from backing out of terminals on equipment that moves or gets its cord tugged. A plain bushing or chase nipple protects the hole edge but gives you no grip on the cord.
4) What is the Leviton part number to order for a 1-1/2 inch NPT strain relief connector?
Order Leviton L8011-100. That single catalog number covers the 1.5 inch NPT body with the 1.31 to 1.44 inch cord range, so there is no separate size or finish to specify.
5) Is this the right fitting for cord entry on a control panel or machine wiring?
Yes, that is the intended use. Leviton lists the L8011-100 for commercial and industrial enclosures, panel and equipment cord entry points, machine and equipment wiring, control panel installs, and general cord management. The deciding factor is the cord, not the application: the jacket has to fall between 1.31 and 1.44 inches OD and the panel needs a 1-1/2 inch NPT opening.
6) Can I use the Leviton L8011-100 on a plastic enclosure, or is it for metal only?
Either. The connector is built for cordage passing through metal or plastic enclosure walls, so it works on fabricated steel panels, cast housings, and nonmetallic boxes alike, provided the hub or knockout is a tapped 1-1/2 inch NPT opening.
