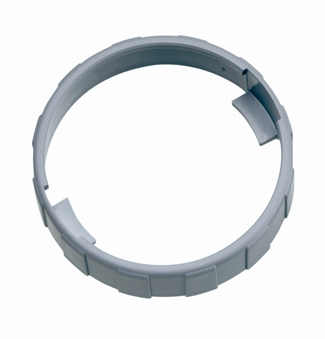

Leviton Pin & Sleeve Locking Ring, IP67 Watertight, Gray
The Leviton Pin & Sleeve Locking Ring is engineered to secure Leviton Pin & Sleeve inlets and plugs, delivering a dependable, IP67 watertight connection for demanding industrial and commercial environments. Compatible with 3, 4, and 5-wire pin & sleeve configurations, this gray locking ring is available in 30A and 100A amperage options to match your device rating. Whether you are maintaining temporary power distribution, portable equipment hookups, or heavy-duty machinery connections, this locking ring helps ensure a tight, weather-resistant seal that keeps moisture and debris out of the connection point.
Key Features
- Locking Ring Design: Threads onto compatible Leviton Pin & Sleeve inlets and plugs to create a secure, locked connection that resists accidental disconnection.
- Watertight Protection: IP67 rated for watertight performance, helping protect the mated connection from water ingress in wet or exposed locations.
- Wire Configuration Compatibility: Designed for use with 3, 4, and 5-wire Pin & Sleeve inlets and plugs, supporting a range of circuit configurations.
- Amperage Options: Available in 30A and 100A ratings to match the amperage of the mating Pin & Sleeve device.
- Gray Finish: Gray color for easy visual identification within a Pin & Sleeve system.
- Durable Build: Constructed to withstand repeated connect/disconnect cycles typical of portable power and temporary distribution applications.
Certifications & Compliance
- IP67 Watertight Rated
Technical Specifications
- Amperage: 100A, 30A
- Wire Configuration: 3, 4, 5-Wire
- Ingress Protection: IP67, Watertight
- Color: Gray
Typical Applications
- Temporary Power Distribution
- Portable Equipment and Machinery Hookups
- Outdoor and Wet-Location Power Connections
- Industrial and Commercial Pin & Sleeve Systems
- Construction Site and Event Power Setups
Why Leviton?
Leviton Pin & Sleeve accessories are built to support secure, watertight connections for professional electrical applications where reliability matters. This IP67 rated locking ring is designed to work seamlessly with compatible Leviton Pin & Sleeve inlets and plugs, helping electricians and facility teams maintain a consistent, code-compliant connection point across 30A and 100A, 3, 4, and 5-wire configurations. Choose Leviton for Pin & Sleeve components built for dependable performance in demanding industrial and outdoor environments.
Manufacturer Resources
Product Specs
- Product Type:
- Locking Ring
- Product Color:
- Gray
- Listing:
- IP67 Watertight
- Product Size:
- 30A - 100A
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Material:
- Valox 357
- IP Rating:
- IP69K
- Product Subgroup:
- Pin & Sleeve Devices
Leviton RA100 – Frequently Asked Questions
1) Which Leviton pin and sleeve locking ring do I order for a 30A device versus a 100A device?
Match the ring to the amperage of the device it threads onto. For 30A pin and sleeve inlets and plugs, order Leviton RA343. For 100A devices, order RA100. Those are the two amperage options in the line, both gray.
2) Will a Leviton pin and sleeve locking ring work on a 4-wire or 5-wire plug, or only 3-wire?
All three. The gray locking ring is made for 3, 4, and 5-wire Leviton pin and sleeve inlets and plugs, so the wire configuration is not what you select on. Amperage is: 30A or 100A, matched to the mating device.
3) Can I use one locking ring size across all my Leviton pin and sleeve devices?
No. The ring is amperage specific. A 30A ring (RA343) will not serve a 100A device and the reverse is also true, because the ring has to thread the body of the device it is locking. If you standardize a facility on pin and sleeve, stock both sizes to match whatever amperages are in service.
4) Is the Leviton pin and sleeve locking ring rated for outdoor and washdown areas?
It is IP67 watertight rated at the mated connection, which covers rain, hose-down, and temporary immersion in an outdoor or wet location. Typical use is construction site power, event power, and portable machinery hookups where the connection sits exposed.
5) Does the pin and sleeve locking ring keep the plug from pulling apart on a jobsite?
That is its job. The ring threads onto the mating Leviton pin and sleeve inlet or plug and locks the pair together so the connection resists accidental disconnection, while sealing the joint against water and debris. On temporary distribution where cords get dragged, that is the difference between a nuisance trip and a dropped circuit.
6) Is the gray Leviton locking ring a replacement part for a ring that broke off an existing plug?
Yes, that is the common reason to buy one. It is sold as a standalone accessory, not part of a plug assembly, so a cracked or lost ring on an in-service Leviton pin and sleeve inlet or plug can be replaced without swapping the device. Order by the device amperage: RA343 for 30A, RA100 for 100A.
7) What material is the Leviton pin and sleeve locking ring made of?
Valox 357, a glass-reinforced thermoplastic polyester. That is what lets the ring take repeated connect and disconnect cycles on portable power and temporary distribution without the threads giving up, and it is non-metallic so there is nothing to corrode on a wet site.
8) Why is the pin and sleeve locking ring gray instead of color coded to voltage?
Gray is the accessory color for the ring itself, used for quick visual identification within a pin and sleeve system. The voltage color coding a buyer looks for lives on the plug and receptacle housings, not on the ring, so a gray ring is correct regardless of the device color it locks.
