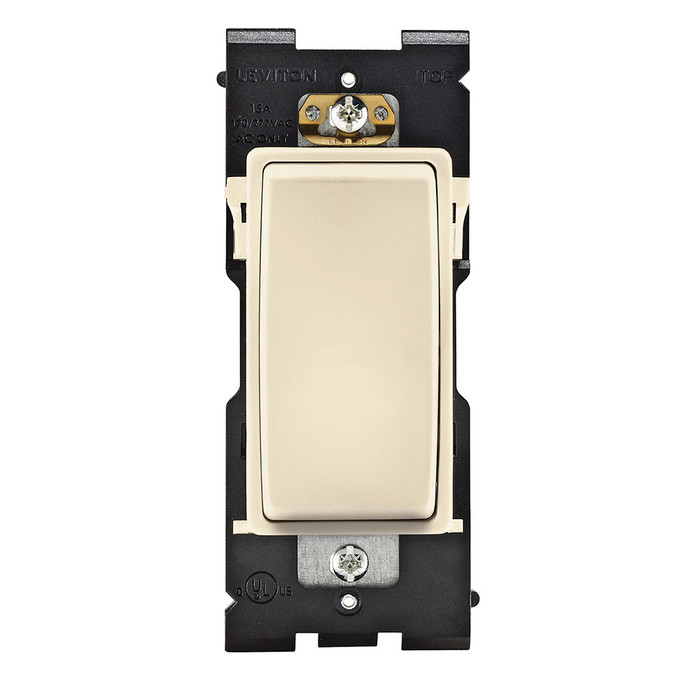

Leviton Renu 3-Way Switch, 15A-120/277VAC, Self-Grounding, Color-Changeable Face

Leviton Renu 3-Way Switch, 15A-120/277VAC, Self-Grounding, Color-Changeable Face

(No reviews yet) Write a Review

Model: RE151-GC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$22.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Renu 3-Way Switch, 15A-120/277VAC, Self-Grounding, Color-Changeable Face

The Leviton Renu 3-Way Switch is a 15A-120/277VAC rated device built for 3-way applications, letting two switches control lighting from separate locations such as hallways and stairways. Constructed with a durable polycarbonate body, thermoplastic actuator, and steel strap, it is self-grounding when installed in a properly grounded metal wallbox and is cULus listed for safety compliance. The snap-on, color-changeable face lets you match or update the switch to complement any Renu screwless wallplate.

Key Features

  • Electrical Rating: 15A-120/277VAC switch rated for 3-way applications, ideal for controlling lights from two locations such as hallways and stairways.
  • HP Rating: 1/2HP-120V, 2HP-240V-277V for compatibility with a range of lighting and motor loads.
  • Durable Construction: Polycarbonate body and thermoplastic actuator provide long-lasting, reliable performance.
  • Strap Material: Steel strap for secure, stable mounting in the wallbox.
  • Termination: Back, side & quickwire terminals designed to withstand high torque and resist wire pullout for fast, easy installation.
  • Grounding: Self-grounding clip and green ground screw ensure proper grounding when installed in a metal wallbox.
  • Color-Changeable Face: The switch face easily snaps off and on, and can be updated to a new color later with an RK15X color change kit.
  • Shallow Size: Compact, shallow profile is easy to install in any wallbox; use only with Renu wallplates (sold separately).

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Actuator Material: Thermoplastic
  • Body Material: Polycarbonate
  • Hp Rating: 1/2HP-120V 2HP-240V-277V
  • Max Amperage: 15 Amp
  • Standards And Certifications: cULus
  • Strap Material: Steel
  • Amperage: 15 A
  • Grounding: Self-Grouning Clip and Green Ground Screw
  • Termination: Back, Side & Quickwire
  • Material: Polycarbonate / Thermoplastic
  • Connection Type: Back, Side & Quick Wire

Typical Applications

  • Residential and Commercial Lighting Control
  • Hallways and Stairways with Multi-Location Switching
  • Renovation and New Construction Electrical Projects
  • Decorative, Color-Coordinated Wall Switch Installations
  • Properly Grounded Metal Wallbox Installations

Why Leviton?

Leviton backs the Renu 3-Way Switch with a cULus listing, a steel mounting strap, and terminals engineered to withstand high torque and resist wire pullout, delivering dependable, code-compliant performance for professional electrical installations. The self-grounding design and snap-on, color-changeable face make it easy to install correctly and update over time without rewiring, keeping the Renu system looking consistent across every room.

Manufacturer Resources

Technical Information

Product Specs

Actuator Material:
Thermoplastic
Body Material:
Polycarbonate
Color Change Kit:
RK15X
Device Type:
Switch
Hp Rating:
1/2HP-120V 2HP-240V-277V
Max Amperage:
15 Amp
Standards And Certifications:
cULus
Strap Material:
Steel
Product Group:
Switches
Department:
Electrical
Product Subgroup:
Switches & Receptacles
Amperage Rating:
15 A
Grounding:
Self-Grounding Clip and Green Ground Screw
Ratings:
15A-120/277V
Termination:
Back, Side & Quickwire
Switch Classification:
3-Way
Product Type:
Switch
Product Material:
Polycarbonate / Thermoplastic
Connection Type:
Back, Side & Quick Wire
Listing:
cULus
Certifications:
CULus
Country of Origin:
China
Max. Current:
15 amperes
Warranty Length:
5 years

Leviton RE151-GC – Frequently Asked Questions

1) Can I use the Leviton Renu RE151 with a standard screwless wallplate, or does it need a special plate?
Renu switches only work with Renu wallplates, which are sold separately. The face on the switch snaps off and on, and the plate is built around that face, so a standard decorator or toggle plate will not cover it correctly. Plan the plate into the order for every device you install.
2) Is the Leviton Renu 3-way switch rated for 277V commercial lighting circuits?
Yes. The Renu 3-way is rated 15A at 120/277VAC, so it runs on the 277V branch circuits common in commercial and institutional buildings as well as standard 120V residential work. Motor loads are covered too at 1/2HP on 120V and 2HP on 240V-277V.
3) Do I need to run a ground wire to the Renu RE151 switch, or is it self-grounding?
The Renu 3-way has a self-grounding clip plus a green ground screw. In a properly grounded metal wallbox the clip does the work through the strap and mounting screws. In a plastic box, or anywhere the box itself is not grounded, land the equipment ground on the green screw.
4) What is a 3-way switch used for, and do I need two of them?
A 3-way controls one light or group of lights from two separate locations, which is what you want at the top and bottom of a stairway or at both ends of a hall. They work in pairs, so a two-location circuit takes two 3-way devices, not one. The Renu is classified 3-way; a single-location circuit uses a single-pole device instead.
5) Can I change the color of a Renu switch later without replacing the device or rewiring?
Yes. The face snaps off and a new one snaps on, using an RK15X color change kit. The wiring and the strap stay in the box. That is the practical reason property managers standardize on Renu across a building: repaint a unit or rebrand a corridor and you swap faces instead of pulling devices.
6) Can I backwire the Renu RE151 or do I have to use side screws?
Three options are on the device: back wiring, side screws, and quickwire push-in terminals. On a high-count job the quickwire holes are the fast path; the side screws are there when you want a screw-clamped connection or you are pigtailing. The terminals are built to take high torque and resist wire pullout.
7) Will a Renu switch fit in a shallow or crowded existing wallbox on a remodel?
The Renu body is a shallow, compact profile made to go into any wallbox, which helps on retrofit work where the box is already full of conductors. It mounts on a steel strap, so it screws to the box ears the same way any decorator device does.
8) What colors does the Leviton Renu 3-way switch come in?
Six colors are offered: Gold Coast White (RE151-GC), Prairie Sage (RE151-PS), Sea Spray (RE151-SE), Deep Garnet (RE153-DG), Fresh Pink Lemonade (RE153-FP), and Red Delicious (RE154-RE). All are the same 15A 3-way device underneath, so a mixed-color order for different rooms is one part with different faces.
9) Is the Renu switch body plastic or metal, and will it hold up in a high-traffic corridor?
The body is polycarbonate with a thermoplastic actuator, mounted on a steel strap. The metal is where it matters for mounting rigidity; the impact-resistant plastic is what takes the daily actuation in a lobby, corridor, or unit turnover.
