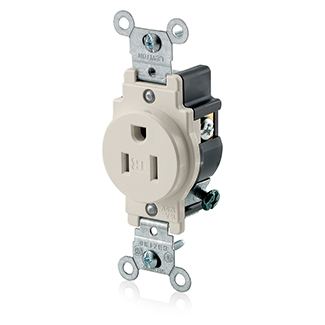

Leviton Commercial Grade Narrow Body Tamper-Resistant Straight Blade Single Receptacle, 15A 125V NEMA 5-15R

Leviton Commercial Grade Narrow Body Tamper-Resistant Straight Blade Single Receptacle, 15A 125V NEMA 5-15R

(No reviews yet) Write a Review

Model: T5015-W
Selected Color is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Leviton Commercial Grade Narrow Body Tamper-Resistant Straight Blade Single Receptacle, 15A 125V NEMA 5-15R

The Leviton commercial grade narrow body receptacle is a tamper-resistant straight blade single receptacle built for demanding electrical installations. Rated 15-Amp, 125-Volt with a NEMA 5-15R configuration, it accepts standard grounded plugs while internal tamper-resistant shutters help block foreign object insertion into energized contacts. The narrow body profile allows more devices per gang box, making it a practical choice for professional electricians working in space-constrained panels, multi-gang installations, and code-driven tamper-resistant retrofit projects.

Key Features

  • Electrical Rating: 15-Amp, 125-Volt rating supports standard general-purpose branch circuit loads.
  • NEMA 5-15R Configuration: Straight blade single receptacle accepts common grounded 15A 125V plugs.
  • Tamper-Resistant Design: Internal shutter mechanism helps prevent insertion of foreign objects into energized contacts, supporting tamper-resistant code requirements.
  • Narrow Body Construction: Compact narrow body profile allows for tighter device spacing in multi-gang applications.
  • Commercial Grade Build: Heavy-duty commercial-grade construction designed for frequent use and demanding environments.
  • Straight Blade Single Receptacle: Single-outlet configuration for dedicated circuit applications.

Technical Specifications

  • Amperage: 15A
  • Product Color: Light Almond

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Multi-Gang Device Boxes Requiring Narrow Body Devices
  • Tamper-Resistant Code Compliance Retrofits
  • Offices, Schools, and Healthcare Facilities
  • General-Purpose 15A 125V Branch Circuit Wiring
  • New Construction and Renovation Projects

Why Leviton?

Leviton's commercial-grade construction and tamper-resistant safety design make this narrow body receptacle a dependable choice for electrical professionals who need consistent performance across high-traffic commercial and multi-gang installations. The narrow body profile and straight blade NEMA 5-15R configuration deliver a space-efficient, code-conscious solution built to withstand repeated everyday use, and the Light Almond finish blends cleanly into standard commercial interiors.

Manufacturer Resources

Technical Information

Product Specs

Product Type:
Receptacle
Amperage Rating:
15A
Voltage Rating:
125V
Nema Rating:
5-15R
Grade:
Commercial
Device Type:
Tamper-Resistant
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Leviton T5015-W – Frequently Asked Questions

1) Is the Leviton T5015 a single receptacle or a duplex?
Single. The T5015 is a straight blade single receptacle, one NEMA 5-15R outlet per device, rated 15A 125V. That makes it the part you use for a dedicated circuit feeding one piece of equipment, not a general two-outlet duplex. If you need two outlets at the box, a duplex 5-15R is the device to order instead.
2) Does the Leviton T5015 meet tamper-resistant requirements for a school or healthcare retrofit?
It is a tamper-resistant device with internal shutters that block foreign objects from reaching the energized contacts, and it is built for tamper-resistant code compliance retrofits in offices, schools and healthcare facilities. Commercial grade construction, so it holds up to frequent plug cycling in those buildings.
3) What plugs will fit a NEMA 5-15R receptacle like the Leviton T5015?
Standard grounded 15A 125V cord caps, the common three-prong plug on office and general-purpose equipment. It will not take a 20A plug with the sideways neutral blade, and it is not for 250V equipment. For a 20A load you need a 5-20R device.
4) Can I put the T5015 on a 20-amp branch circuit?
The device itself is rated 15A at 125V, so that is the load it is built to carry. A 15A receptacle is commonly permitted on a 20A multi-outlet branch circuit, but a single receptacle on an individual branch circuit must match the circuit rating, which means a 20A circuit serving only this one outlet calls for a 20A device. Since the T5015 is a single receptacle, that distinction matters here.
5) What does the narrow body on the Leviton T5015 actually get me in a crowded gang box?
A slimmer device body, so you can fit devices tighter together in multi-gang boxes and space-constrained panels. It is the reason electricians reach for this one on multi-gang runs where standard-width bodies crowd each other. The electrical rating is unchanged: still 15A, 125V, NEMA 5-15R.
6) What colors does the Leviton T5015 come in, and which part number do I order?
Three: Ivory as T5015-I, Light Almond as T5015-T, and White as T5015-W. Match the color to the wall plates already on the job, since the device face is what shows through the plate opening.
7) Is commercial grade worth it over a residential receptacle for an office fit-out?
For an office, school or healthcare space where plugs get pulled daily, yes. The T5015 is commercial grade, built for frequent use and demanding environments, where a residential-spec device is built to a lighter duty cycle. It is the same 15A 125V NEMA 5-15R configuration either way, so the difference is contact retention and build, not what plugs in.
